Illumax

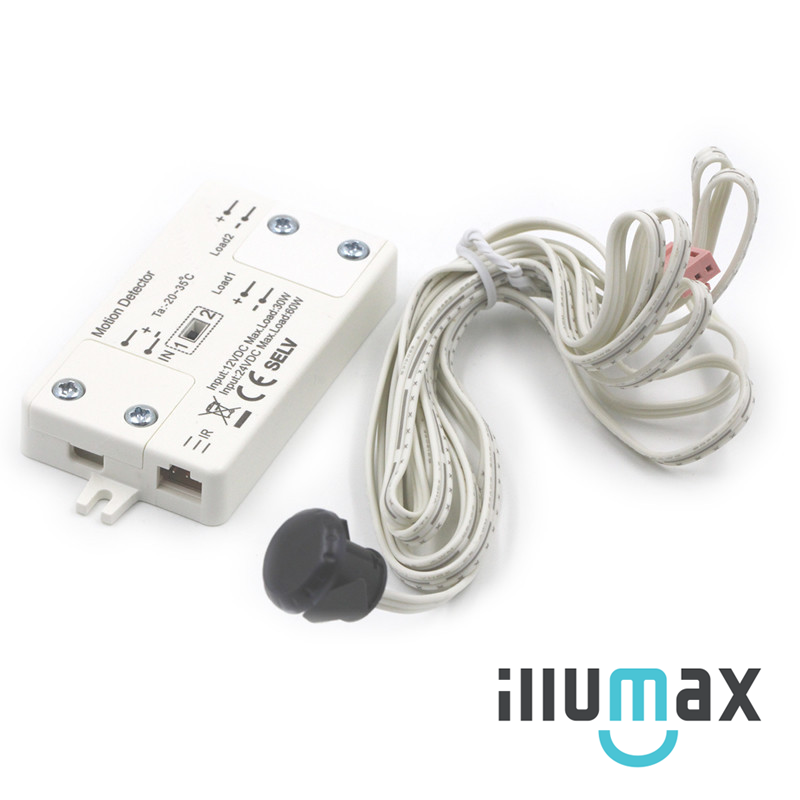

ILLUMAX Door / Wave IR Sensor with dual Probe, DC, Indoor

Wave IR Sensor with dual ProbeDCIndoor
SKU IX-IRSEN-PB-Dual
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • IR sensor for LED lighting
  • With 2 selectable functions before installation
  • Detection range: less than 50mm is recommended
  • Selectable output connection: terminal block and mini plug

Specifications

IX-IRSEN-PB-DualSpecifications from the official datasheetDownload datasheet PDF

Specifications

Input Voltage
DC 12V/ 24V
Max.Load
Max.30W/ Max.60W

Certifications & ratings

Certification marks
CE

Typical applications

  • Function 1 - Wave Sensor
  • 1. If mounted outside a door or a cabinet, please select function 1
  • 2. Move hand over the detector, the lamps turn on
  • 3. Move hand over the detector once again, the lamps turn off
  • Function 2 - Door Sensor
  • 1. If mounted behind a door, please select function 2
  • 2. Open the door, the lamps turn on
  • 3. Close the door, the lamps turn off

Downloads

FAQ

What is the ILLUMAX Door / Wave IR Sensor with dual Probe designed for?

This model is an indoor DC infrared sensor intended for touchless door or wave-based activation in lighting control applications. Its dual-probe design makes it suited to commercial and professional environments where a compact sensor unit is needed for responsive control.

Is this sensor suitable for indoor or outdoor use?

This specific model is designed for indoor use. It operates on DC 12V/24V input, so it should be selected for environments that stay within that range.

What electrical load can this sensor handle?

The ILLUMAX Door / Wave IR Sensor with dual Probe is rated for up to 30 W or 60 W depending on the configuration. Those ratings help define the load level this model is intended to control in DC indoor applications.

Does this model support dimming control?

No. The listed dimming control for this model is none, so it is not specified as a dimming sensor version.

What are the finish, warranty, and expected lifetime of this sensor?

This model is designed for indoor DC applications. It is intended for touchless door or wave-based activation in lighting control systems.

What kind of applications is the dual-probe version best suited for compared with a basic sensor unit?

This dual-probe version is positioned for buyers who need an IR door or wave sensor format with that specific probe configuration rather than a more basic single-unit variation. For procurement, the main differentiators confirmed here are the dual-probe design, indoor DC use, and the model's 30 W / 60 W rating.
