Illumax

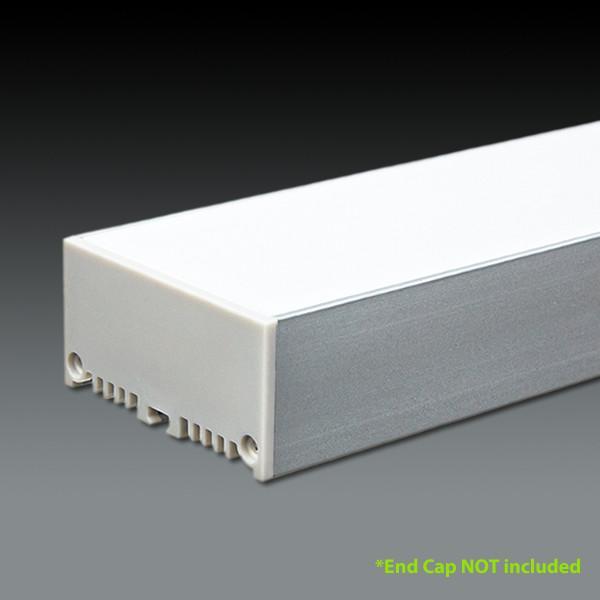

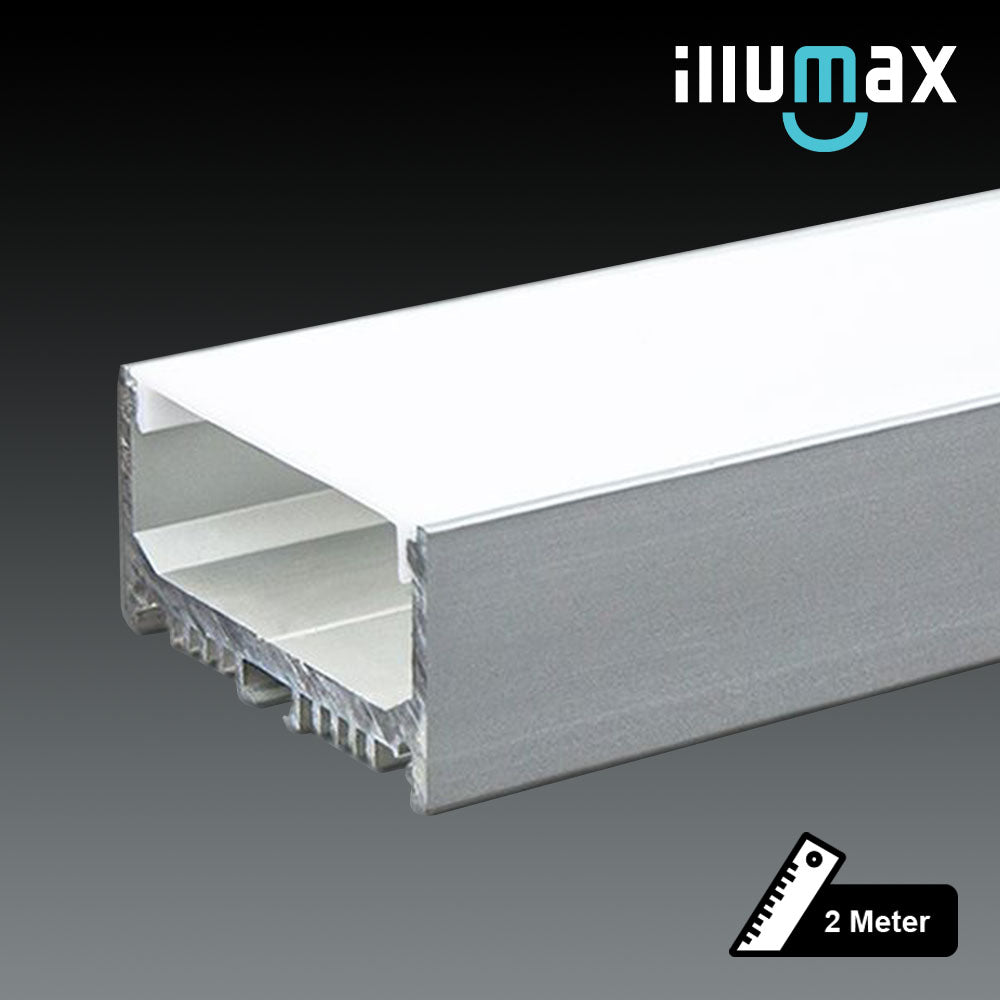

LED Extrusion EXLP48 Linear Profile - 2 Metres

Linear Surface
SKU Z-EXLP48-2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Specifications

Z-EXLP48-2Specifications from the official datasheetDownload datasheet PDF

Specifications

Standard Length
2m
Body
Anodized Aluminium
Diffuser
PC( Pmma Opal Matte )
End Cap
PC
Mounting Bracket
PC

Illumax Strip Compatibility

ECO
•
ECO+
•
ULTRA
•
ULTRA+
•
ULTIMATE
•
RAINBOW
•
RAINBOW+
•
COLOR
•
Test conditions and notes2
  1. 1. ECLP04 with LED strip installed (*LED strip needs to be purchased seperately)
  2. 2. ECLP04 with Mounting Bracket installed (back view)

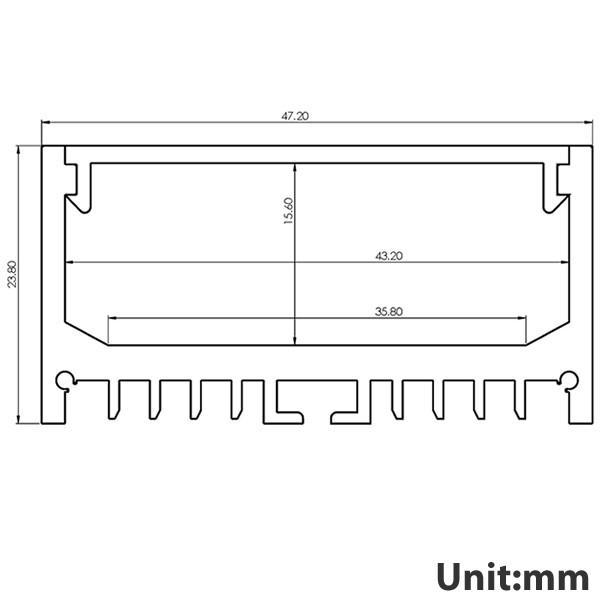

Technical drawings

Z-EXLP48-2 Specifications
Specifications

Downloads

FAQ

What is the length of the LED Extrusion EXLP48 Linear Profile?

The LED Extrusion EXLP48 Linear Profile is supplied in a standard 2 metre length. This model is listed as SKU Z-EXLP48-2.

What materials are used in this LED extrusion?

The EXLP48 profile has an anodised aluminium body. It also includes an opal matte PC/PMMA diffuser, with PC end caps and PC mounting brackets.

What type of lighting projects is this profile suited for?

This product is intended for linear LED lighting applications where a surface-style aluminium extrusion is required. It is suited to B2B LED extrusion, LED linear lighting, and light strip profile projects.

Does this product include a diffuser?

Yes, this EXLP48 linear profile includes an opal matte diffuser. The diffuser material is listed as PC/PMMA and is designed for use with the extrusion profile.

What finish colour is the EXLP48 linear profile?

The finish colour for this model is silver. The body is anodised aluminium, giving it a clean metallic appearance for linear lighting applications.

What warranty period applies to this product?

The LED Extrusion EXLP48 Linear Profile is supplied in a standard 2 metre length. The body is anodized aluminium, with PC diffuser, end caps, and mounting brackets.
