Illumax

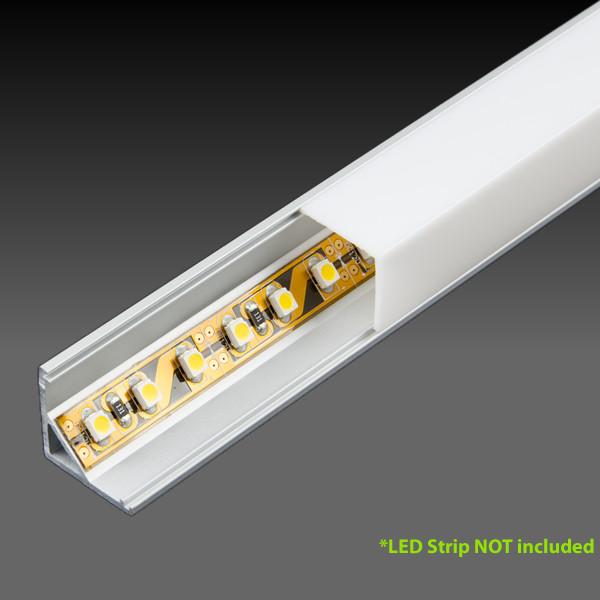

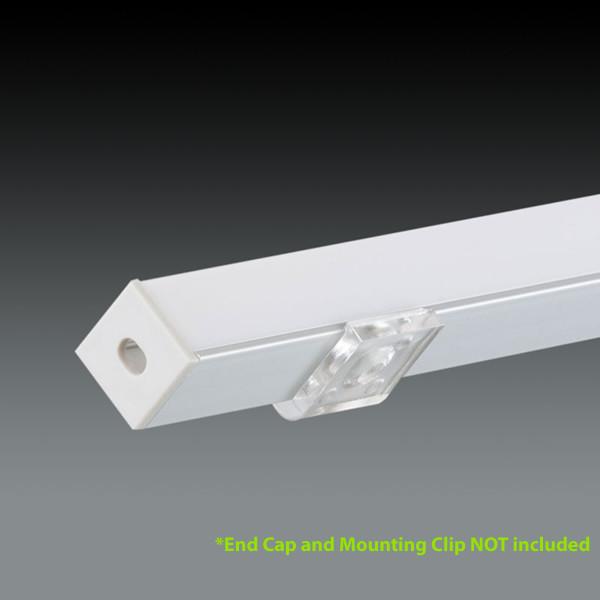

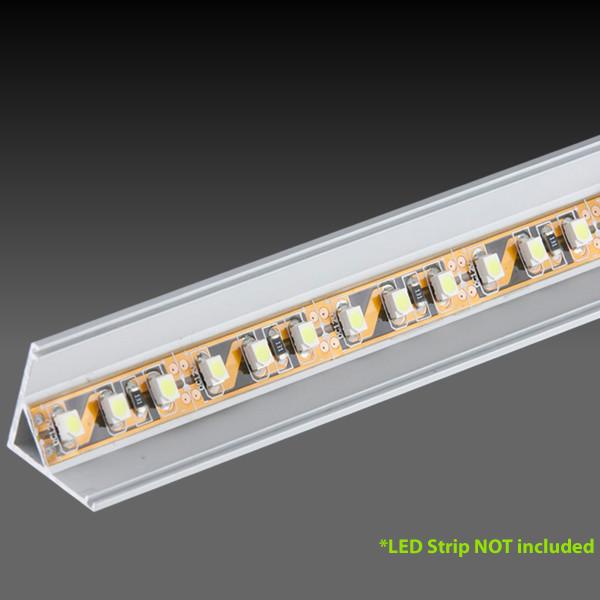

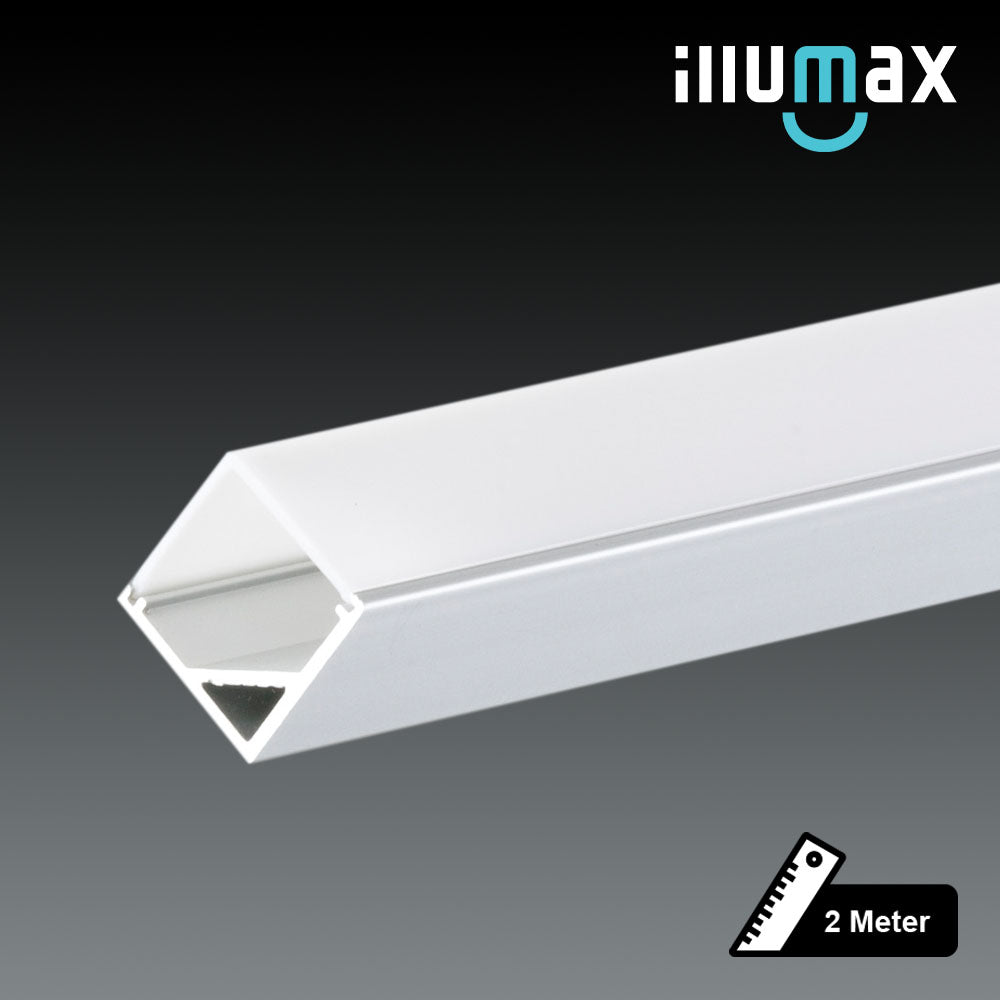

LED Extrusion EXCR02 Linear Profile

Corner Surface, Price per Meter, 2M per Length
SKU:
EXCR02
Please for Pricing
|

Description

Specifications:




  • Standard Length:        2m
  • Body:                           Anodised Aluminium
  • Diffuser:                      PC(Pmma Opal Matte)
  • End Cap:                      PC
  • Mounting Bracket:     PC

Specifications
  • Brand
    Illumax
  • Series
    Illumax Series
  • Warranty
    2 Year
  • Length
    100 cm

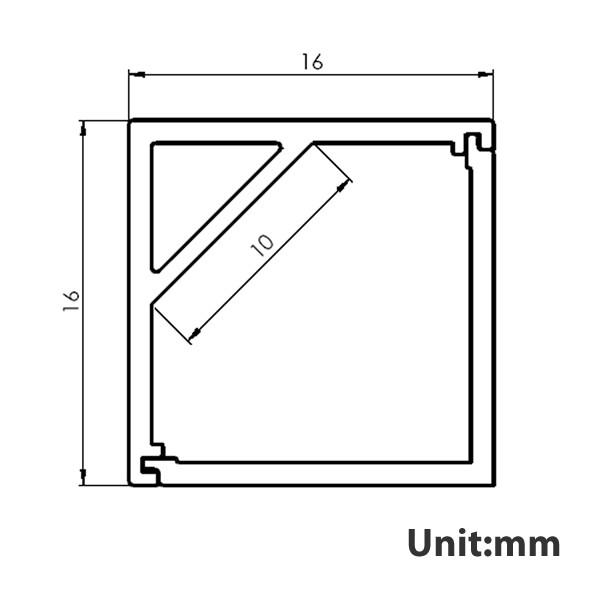

  • Width
    1.6 cm
  • Height
    1.6 cm
  • Weight
    1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the standard length of the LED Extrusion EXCR02 Linear Profile?

The EXCR02 is specified in a standard 2 m length. That makes it suitable for linear lighting runs where a consistent profile length is needed for quoting and planning.

What materials are used in the EXCR02 profile?

This model uses an anodised aluminium body with a PC (PMMA opal matte) diffuser. The end cap and mounting bracket are both specified as PC components.

What finish does the EXCR02 come in?

The listed finish colour for the EXCR02 is silver. That gives the profile a neutral commercial look that generally suits a wide range of architectural and retail lighting projects.

What kind of lighting projects is the EXCR02 typically suited for?

The EXCR02 is a linear LED extrusion profile intended for linear lighting applications where a finished aluminium channel and opal matte diffuser are required. It is generally relevant for commercial or architectural lighting layouts that need a cleaner, more protected profile presentation than exposed strip-only runs.

How does the EXCR02 differ from using an exposed LED strip without a profile?

The EXCR02 adds a dedicated anodised aluminium profile body and an opal matte diffuser, which provides a more finished housing around the light source. Compared with an exposed strip-only setup, this model is aimed at projects that want a neater linear profile format and diffuser-based light softening.

Is the EXCR02 specified for demanding outdoor or wet-area environments?

No ingress protection or environmental rating is provided in the available product data for the EXCR02. For outdoor, wet-area, or harsher site conditions, the suitability should be assessed from the full assembled system specification rather than this profile listing alone.

What warranty is listed for the EXCR02 Linear Profile?

The stated warranty period for this model is 2 years. For project purchasing, that gives you a defined manufacturer-listed warranty term for the profile itself.
