Illumax

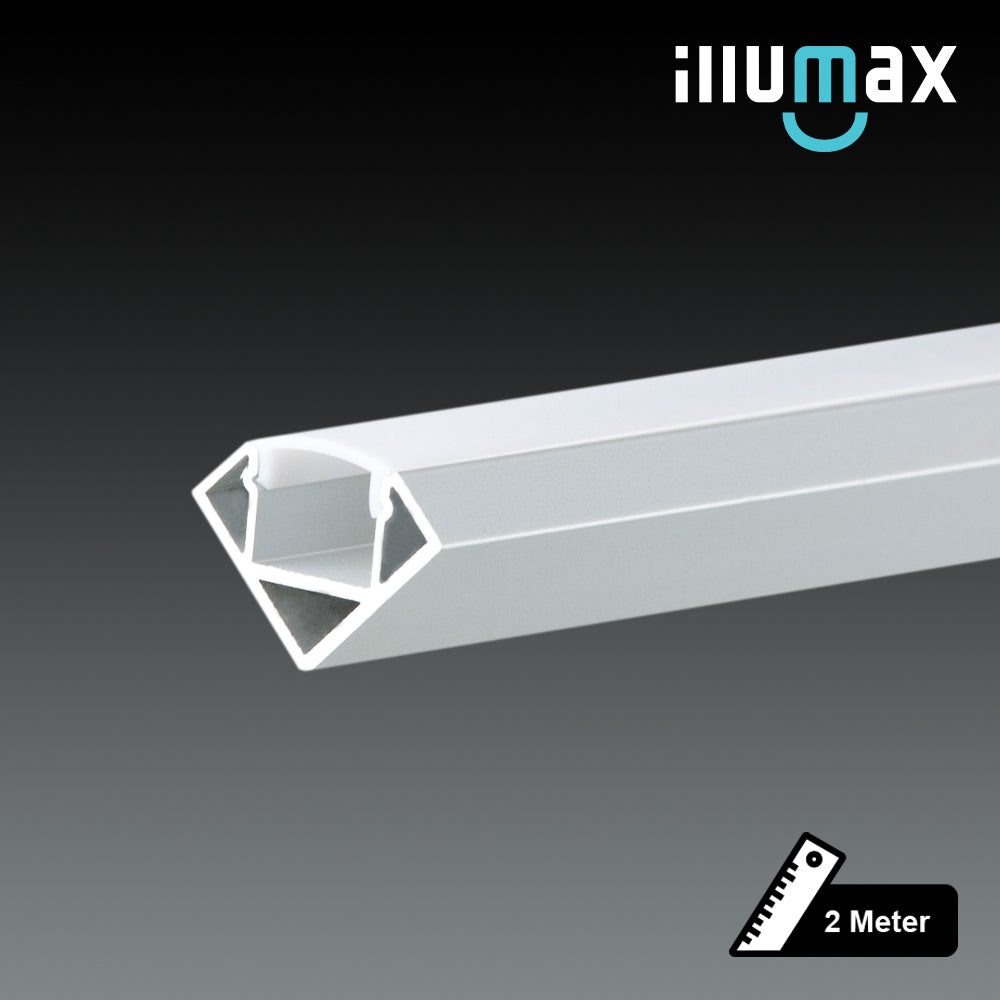

LED Extrusion EXCR03 Linear Profile

Corner SurfacePrice per Meter2M per Length
SKU EXCR03
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • Standard Length: 2m
  • Body: Anodized Aluminium
  • Diffuser: PC( Pmma Opal Matte )

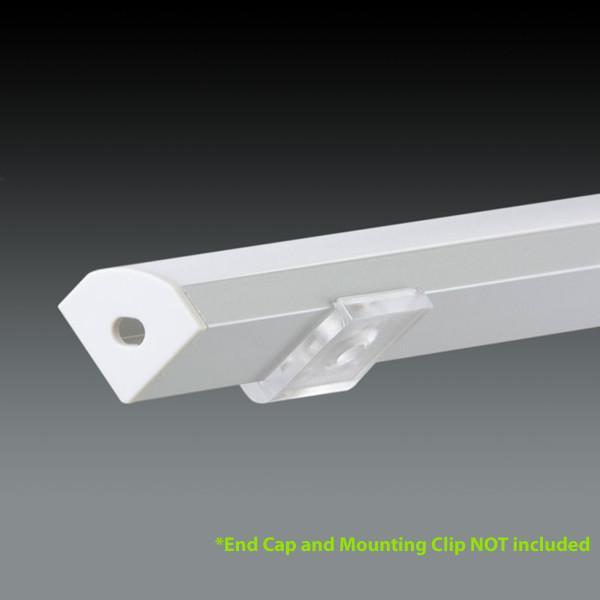

  • End Cap: PC
  • Mounting Bracket: PC

Specifications

EXCR03Specifications from the official datasheetDownload datasheet PDF

Illumax Strip Compatibility

ECO
• •
ECO+
• •
ULTRA
• •
ULTRA+
•
ULTIMATE
•
RAINBOW
• •
RAINBOW+
• •
COLOR
• •

Downloads

FAQ

What type of product is the LED Extrusion EXCR03 Linear Profile?

The EXCR03 is an LED extrusion linear profile designed for LED lighting applications. This model uses an anodised aluminium body with an opal matte PC diffuser to create a cleaner and more finished lighting channel.

What are the main materials used in the EXCR03 profile?

The EXCR03 has an anodised aluminium body in a silver finish. It also includes a PC (PMMA opal matte) diffuser, along with PC end caps and a PC mounting bracket.

What length does the LED Extrusion EXCR03 come in?

The standard length for the EXCR03 is 2 meters. That makes it suitable for linear lighting runs where a consistent profile length is needed.

What kinds of projects is the EXCR03 typically used for?

Based on its linear profile format, the EXCR03 is suited to commercial and trade lighting projects that use LED strip channels or architectural linear lighting details. It is a practical option where buyers want a dedicated extrusion profile rather than leaving the light source exposed.

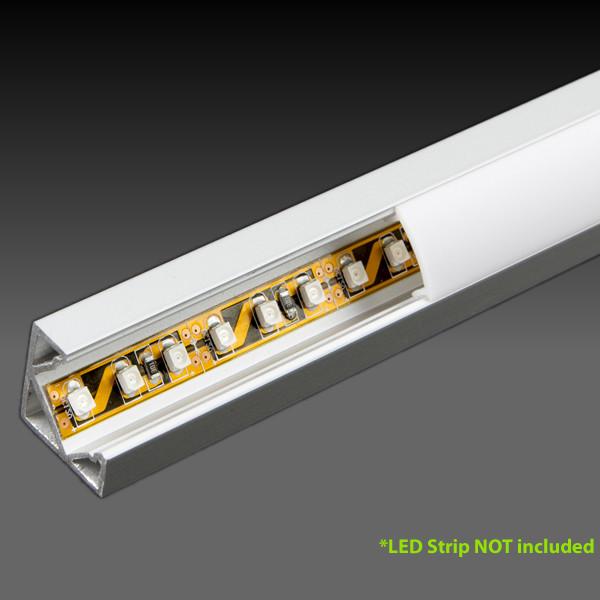

Does the EXCR03 include a diffuser?

Yes, this model includes a PC (PMMA opal matte) diffuser. The opal matte finish helps give the profile a more refined appearance compared with an open aluminium-only channel.

What warranty period is listed for the EXCR03?

The LED Extrusion EXCR03 Linear Profile is a mechanical housing component and does not have an electrical warranty period listed. Warranty terms for the LED strip itself are provided by the strip manufacturer.
