Illumax

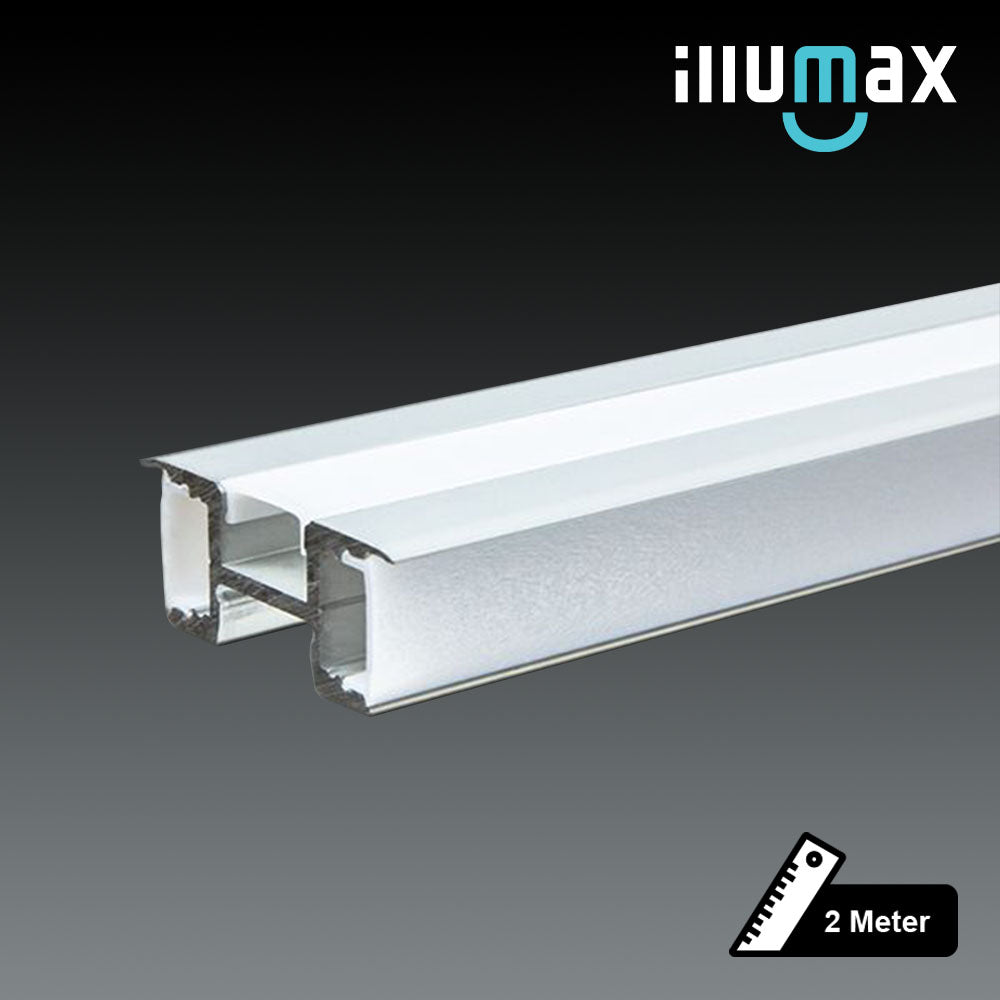

LED Extrusion EXOT03 Linear Profile - 2 Metres

Linear Surface
SKU Z-EXOT03-2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Specifications

Z-EXOT03-2Specifications from the official datasheetDownload datasheet PDF

Specifications

Standard Length
2m
Body
Anodized Aluminium
Diffuser
PC( Pmma Opal Matte )
End Cap
PC
Mounting Bracket
PC

Illumax Strip Compatibility

ECO
•
ECO+
•
ULTRA
•
ULTRA+
•
ULTIMATE
•
RAINBOW
•
RAINBOW+
•
COLOR
•
Test conditions and notes2
  1. 1. ECLP04 with LED strip installed (*LED strip needs to be purchased seperately)
  2. 2. ECLP04 with Mounting Bracket installed (back view)

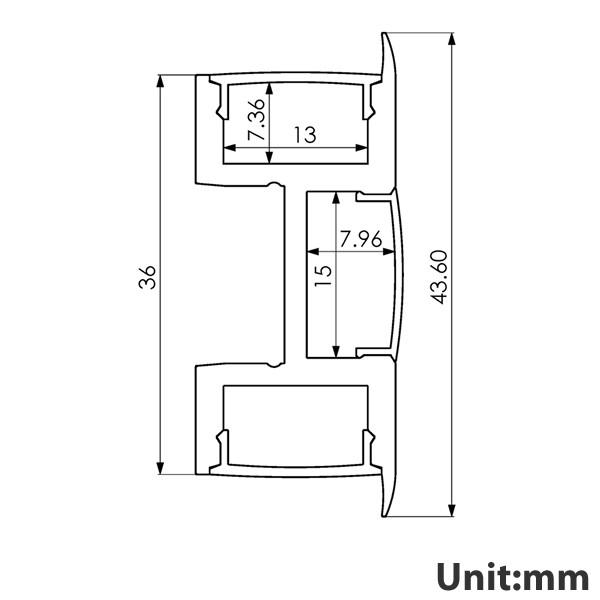

Technical drawings

Z-EXOT03-2 Specifications
Specifications

Downloads

FAQ

What is the LED Extrusion EXOT03 Linear Profile used for?

The LED Extrusion EXOT03 is an aluminum housing profile for LED strip lighting. It is suited to linear lighting applications such as kitchens, furniture, under-bench areas, tables, ceilings, and walls.

Is this extrusion suitable for surface lighting applications?

Yes, this model is categorized as a surface LED extrusion and is intended for LED linear lighting projects. It can be used where a silver aluminum profile is needed to house LED strip lighting.

What length is the Z-EXOT03-2 profile?

SKU Z-EXOT03-2 is supplied as a 2 metre LED extrusion profile. This makes it suitable for longer linear runs where a continuous aluminum housing is required.

What finish does this LED extrusion have?

The LED Extrusion EXOT03 Linear Profile has a silver finish. The profile is made from aluminum and is designed for LED strip lighting housings.

Can this profile be used with LED strip lighting?

Yes, this product is an aluminum extrusion housing for LED strip lighting. It is intended for LED linear lighting applications across furniture, kitchen, wall, ceiling, table, and under-bench uses.

What warranty applies to this LED extrusion?

This LED Extrusion EXOT03 Linear Profile has a 2 year warranty period. The listed product weight is 1.0000 kg.
