Illumax

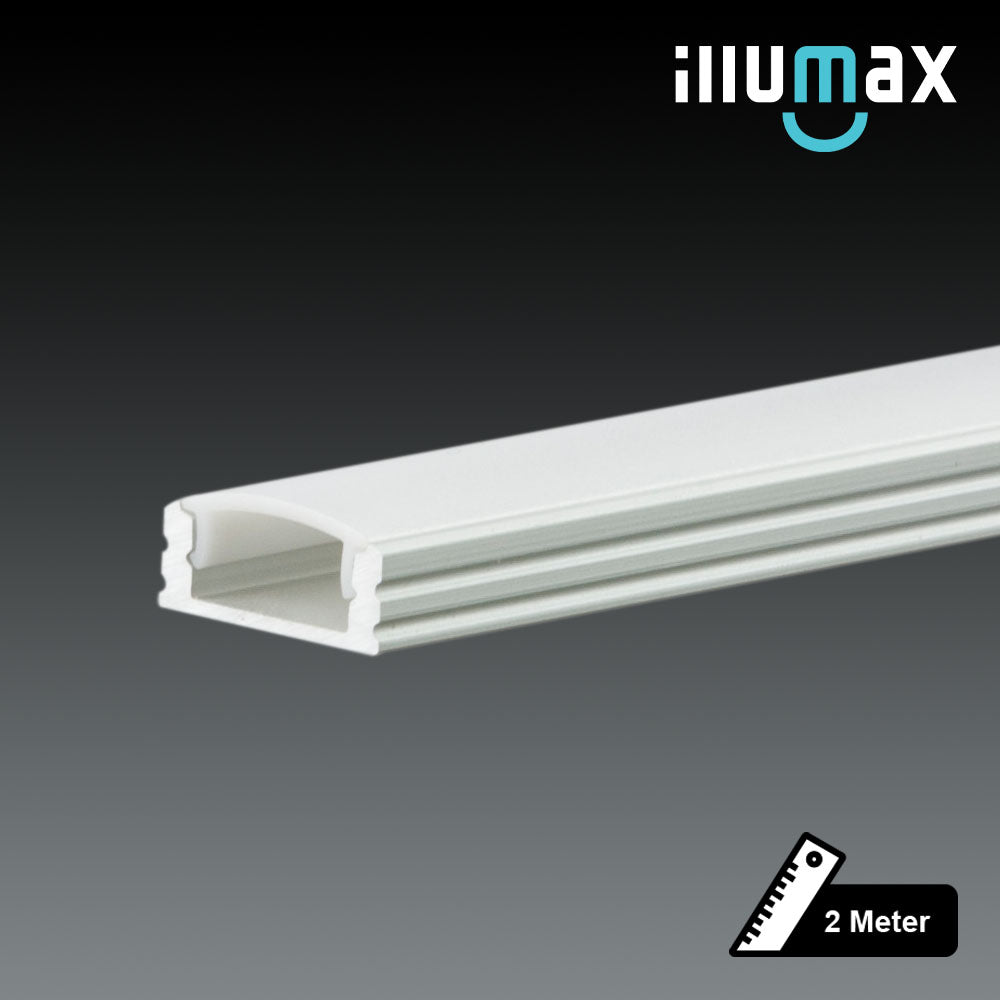

LED Extrusion EXLP03 Linear Profile

Linear SurfacePrice per Meter2M per Length
SKU EXLP03
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Specifications

EXLP03Specifications from the official datasheetDownload datasheet PDF

Specifications

Standard Length
2m
Body
Anodized Aluminium
Diffuser
PC (Pmma Opal Matte)
End Cap
PC
Mounting Bracket
PC

Illumax Strip Compatibility

ECO
•
ECO+
•
ULTRA
•
ULTRA+
•
ULTIMATE
•
RAINBOW
•
RAINBOW+
•
COLOR
•
Test conditions and notes2

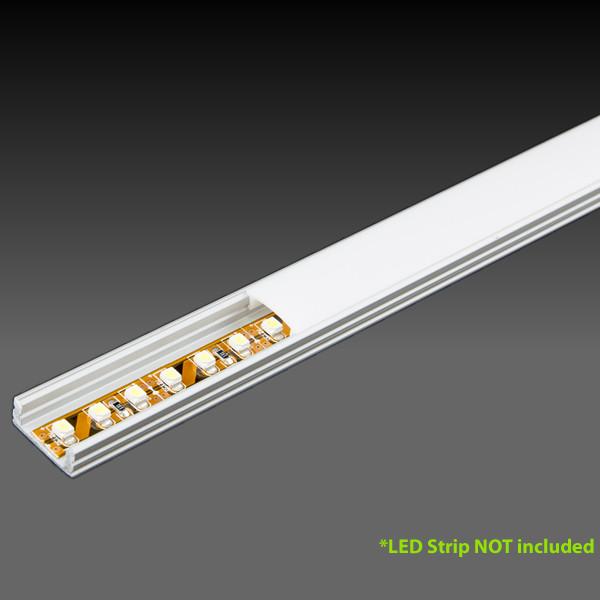

  1. 1. ECLP04 with LED strip installed (*LED strip needs to be purchased seperately)
  2. 2. ECLP04 with Mounting Bracket installed (back view)

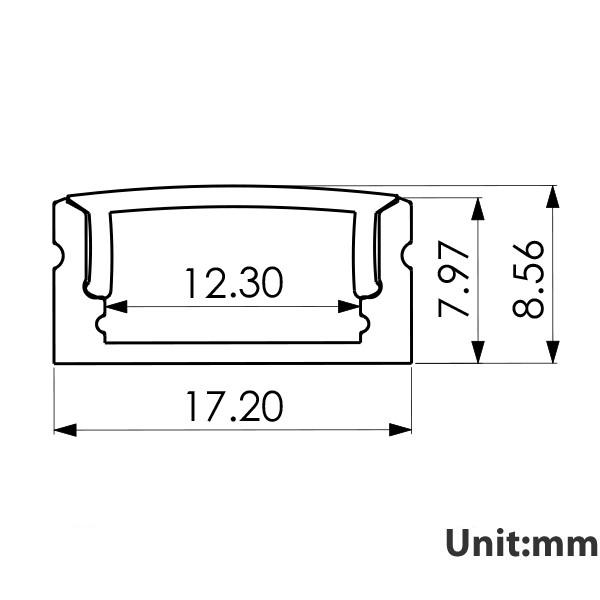

Technical drawings

EXLP03 Specifications
Specifications

Downloads

FAQ

What is the LED Extrusion EXLP03 used for?

The EXLP03 is a linear LED extrusion profile intended for linear lighting applications. Based on its product family and category, it is suited to surface-profile use where a clean aluminum housing and diffuser are needed for an LED strip setup.

What are the main construction materials of the EXLP03 profile?

This model uses an anodised aluminium body with a PC diffuser described as PMMA opal matte. The end cap is PC, and the mounting bracket is also PC. That combination gives this specific model a silver-finish aluminum profile with polymer accessory parts.

What length does the EXLP03 come in?

The standard length for the LED Extrusion EXLP03 Linear Profile is 2 meters. If your project requires longer runs or segmented layouts, this model should be evaluated around that 2 m standard profile length.

What warranty and weight are listed for the EXLP03?

The EXLP03 is a linear LED extrusion profile. It features an anodized aluminium body with a PC diffuser (PMMA opal matte), PC end caps, and PC mounting brackets. The standard length is 2 meters.
