Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

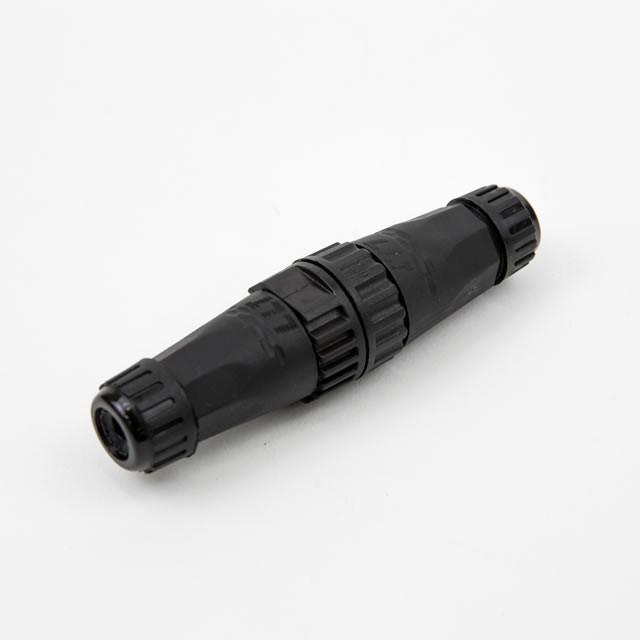

M22 Waterproof 3-Pole Wire to Wire Connector - IP68

SKU:

CON-IP68-3P

Please for Pricing

Notify me when it's back in stock

Description

M22 WATERPROOF 3-POLE WIRE TO WIRE CONNECTOR - IP68;Black

Specifications

Brand

Wellforces
Rated Current

25 Ampere
Warranty

1 Year
Length

10.43 cm
Width

2.65 cm
Height

2.65 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this M22 connector used for?

The CON-IP68-3P is a waterproof wire-to-wire connector for applications that need a sealed inline connection point. Its 3-pole format makes it relevant for products or assemblies that require three conductors while maintaining environmental protection.

What does the IP68 rating mean for this connector?

This model is rated IP68, which identifies it as a waterproof connector designed for demanding environments where moisture protection matters. For buyers comparing sealed connectors, the IP68 rating is the key environmental differentiator listed for this model.

How much current is this connector rated for?

The rated current for the M22 Waterproof 3-Pole Wire to Wire Connector is 25 A. That makes current capacity one of the main specification checks when evaluating this specific model for commercial or industrial use.

Is this the right connector if I need a 3-pole waterproof model?

If your requirement is specifically for a waterproof 3-pole wire-to-wire connector, this model is aligned with that use case. It is identified as a 3-pole M22 connector with an IP68 rating, so it is better matched than connectors with a different pole count or lower environmental protection.

What are the basic product specs for CON-IP68-3P?

This model is the M22 Waterproof 3-Pole Wire to Wire Connector - IP68 in black. The listed specifications include a 25 A rated current, 0.0500 kg weight, and a 1 year warranty period.

Does this connector include warranty coverage?

Yes. The listed warranty period for the CON-IP68-3P is 1 year. For procurement teams, that provides a clear baseline support period for this exact connector model.
