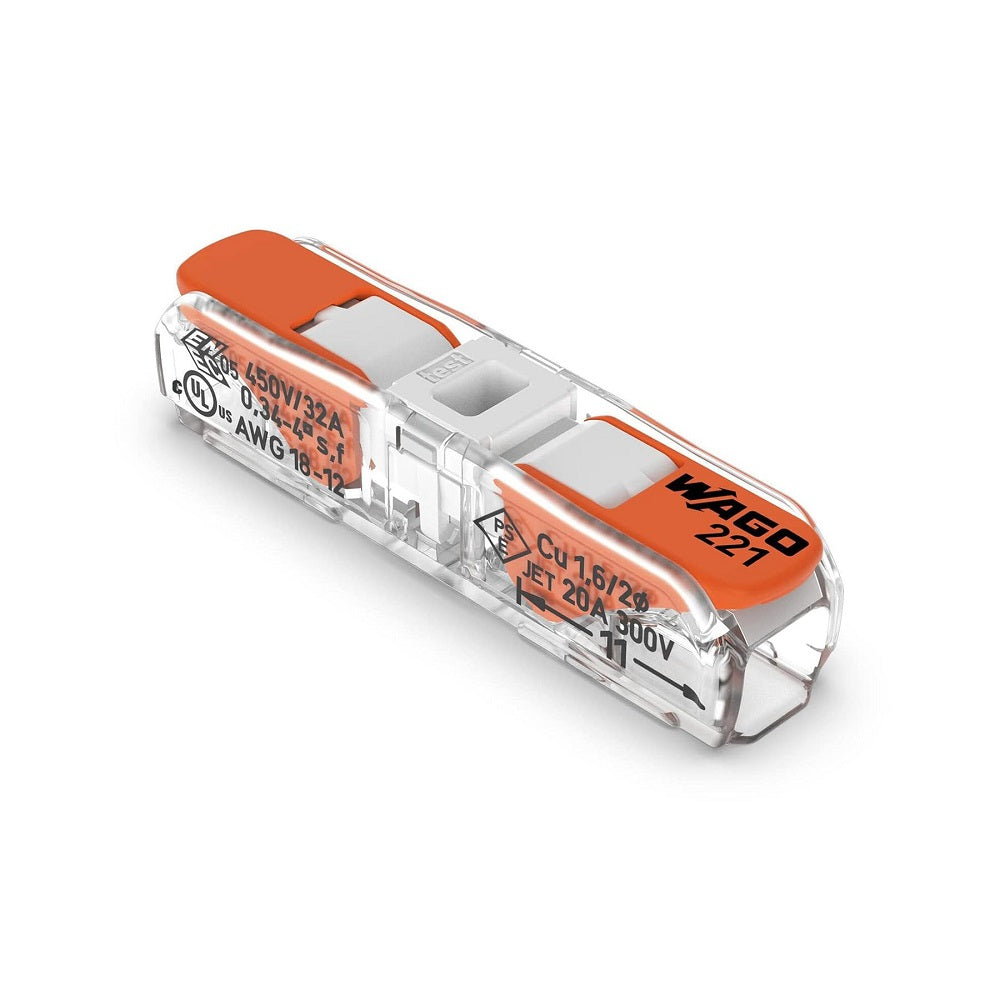

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Wago 221-2401 Inline splicing connector with lever

SKU:

221-2401

Notify me when it's back in stock

Description

Features:

Insulation materials
Table: Standard Insulation Materials
Polyamide (PA 66)
Glass fiber-reinforced polyamide (PA 66 GF)
Polyphthalamide (PPA GF)
Polyamide (PA 46)
Polycarbonate (PC)
Terminating aluminum conductors
General Specification:

Ratings per
EN 60664
Nominal voltage
450 V
Rated surge voltage
4 kV
Rated current
32 A
Connection technology
CAGE CLAMP®
Connectable conductor materials
Copper
Strip length
11 mm / 0.43 inches
Operating Temperature
-60 - +105 °C
Safety standards
Only to be used by electricians!
Do not work under voltage/load!
Use only for proper use!
Observe national regulations/standards/guidelines!
Observe technical specifications for the products!
Observe the number of permissible potentials!
Do not use damaged/dirty components!
Observe conductor types, cross-sections and strip lengths!
Insert conductor until it hits the product‘s backstop!
Use original accessories!
Dimension (LxWxH)
35.5 x 8.1 x 8.9mm

Specifications

Brand

Wago
Rated Current

32 Ampere
Warranty

1 Year
Length

3.55 cm
Width

0.81 cm
Height

0.89 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Wago 221-2401 inline splicing connector with lever used for?

The Wago 221-2401 is an inline splicing connector designed for joining copper conductors in a compact in-line format. It is suited to professional electrical applications where a lever-operated connector and space-efficient layout are important.

What are the key electrical ratings of the Wago 221-2401?

This model is rated for 450 V nominal voltage, 4 kV rated surge voltage, and 32 A rated current under EN 60664. These published ratings make it easier to assess whether this specific connector matches the electrical demands of your application.

Which conductor material is compatible with the Wago 221-2401?

The listed connectable conductor material for the Wago 221-2401 is copper. If your project uses a different conductor material, this product should be reviewed carefully against the manufacturer data before selection.

Is the Wago 221-2401 suitable for demanding temperature conditions?

The specified operating temperature range for this model is -60 to +105 °C. That wide range makes it a practical option for environments where connectors may be exposed to both very low and elevated temperatures within the product's stated limits.

What makes the Wago 221-2401 different from a standard connector block?

This model uses Wago's CAGE CLAMP® connection technology and a lever-style inline design. Compared with more conventional connector block formats, it is differentiated by its compact dimensions of 35.5 x 8.1 x 8.9 mm and its in-line splicing form factor.

Are there any safety or usage limitations for the Wago 221-2401?

Yes. The product information states that it is only to be used by electricians and should not be worked on under voltage or load. Users should also follow applicable national regulations, observe the technical specifications, and avoid using damaged or dirty components.
