Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Wago 222-413 Compact Connector 3 Way - with Lever

SKU:

222-413

Notify me when it's back in stock

Description

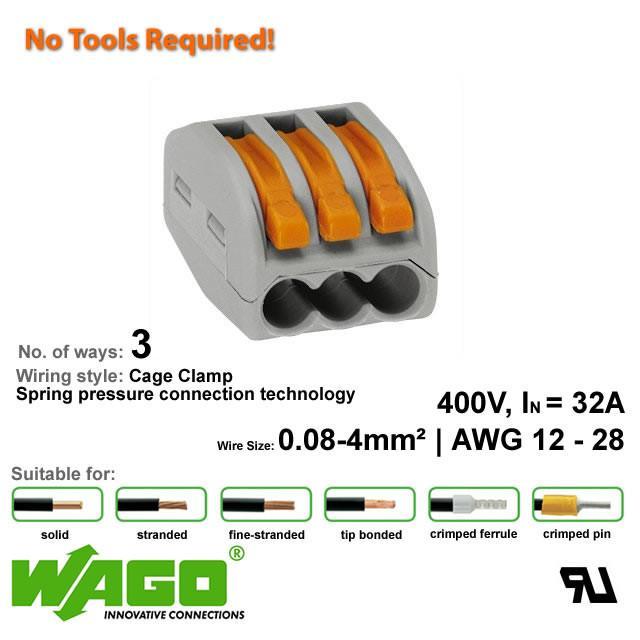

The 222-413 from Wago is a 3 conductor terminal block with cage clamp connection. This connector allows for solid, stranded and fine stranded cables to be connected together without the need for any tools. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.

Features

Compact connecting terminal for up to 3 stripped flexible conductors
Conductor size from 0.08 to 4 mm²
Operating lever avoids the need for tools for operation
Voltage Rating: 400V

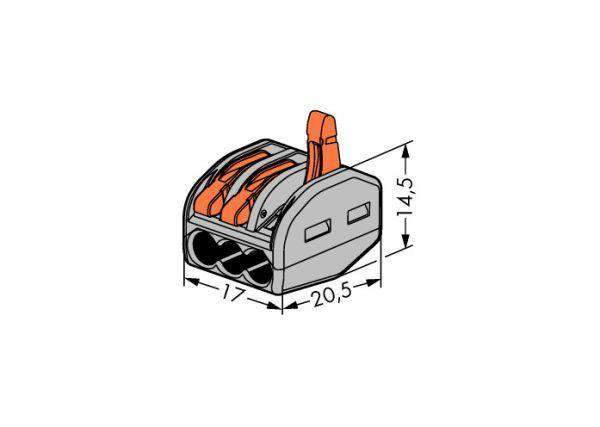

W: 17mm x H: 14.5mm x D: 20.5mm
Ambient Temperature: 60°C
Grey
Side entry wiring type

Applications

Industrial
Communications & Networking
Lighting
Security
Signalling
HVAC

Specifications

Brand

Wago
Rated Current

32 Ampere
Warranty

1 Year
Length

1.7 cm
Width

1.45 cm
Height

2.05 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Wago 222-413 Compact Connector used for?

The Wago 222-413 is a compact 3-conductor connector designed to join solid, stranded, and fine stranded cables without tools. It is positioned for commercial and industrial applications such as lighting, HVAC, signalling, security, and communications or networking work.

What wire sizes are compatible with the Wago 222-413?

This model supports conductor sizes from 0.08 to 4 mm², which is also listed as 28 AWG to 12 AWG. That range makes it suitable for a broad mix of lighter control wiring and heavier conductors within the product's stated limits.

What are the electrical ratings of the Wago 222-413?

The Wago 222-413 is rated for 32 A current and 400 V. Those published ratings make it a fit for buyers who need a compact connector with clearly stated current and voltage capacity for professional electrical applications.

Is the Wago 222-413 suitable for space-constrained panels or fixtures?

Yes. The housing measures 17 mm wide, 14.5 mm high, and 20.5 mm deep, so it is built for compact installations where connector size matters. Its side-entry wiring format also supports use in tight electrical spaces where layout efficiency is important.

What makes the Wago 222-413 different from a standard fixed terminal block?

This connector uses an operating lever, so conductors can be secured without requiring tools. It is also specifically a 3-way compact connector, which makes it useful when you need to terminate up to three conductors in a small footprint.

What ambient conditions is the Wago 222-413 rated for?

The stated ambient temperature rating for this model is 60°C. Buyers should use that published limit as the reference point when evaluating it for warmer industrial, lighting, or enclosure environments.
