Wago 221-412 Compact Connector 2 Way - Low Profile with Lever
Please Login for Pricing
Description
Description
WAGO's new superstars for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes. They are 40% smaller than the 222 series lever connectors. The transparent housing allows visual inspection for correct wiring. There are also test ports at the front and rear of the connector.
Features
- Up to 40% smaller less space required than for the original WAGO 222

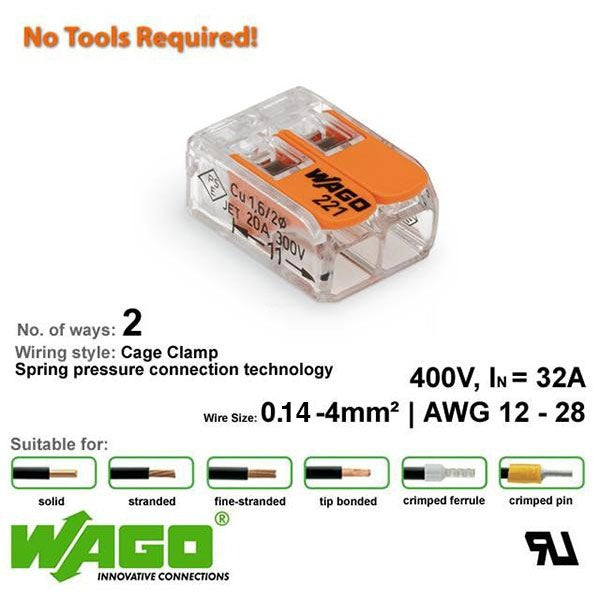

- Solid & Stranded Conductors: 0.2-4mm2
- Fine Stranded Conductor: 0.14-4mm2
- Current Rating: 32A
- Voltage Rating: 450V

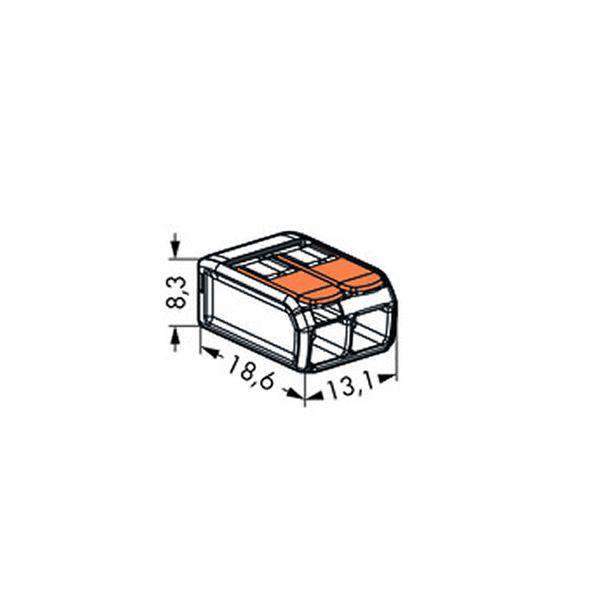

- W: 13.1mm x H: 8.3mm x D: 18.6mm
- Ambient Temperature: 85°C
- Clear with Orange Levers
- Side entry wiring type
Applications
- Industrial
- Communications & Networking
- Lighting
- Security
- Signalling
- HVAC
Specifications
Specifications
-
BrandWago
-
Rated Current32 Ampere
-
Warranty1 Year
-
Length1.31 cm
-
Width0.83 cm
-
Height1.86 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Wago 221-412 Compact Connector used for?
The Wago 221-412 is a compact 2-way lever connector designed for joining conductors in space-constrained electrical applications. It is commonly used across industrial, lighting, HVAC, signalling, security, and communications environments where a low-profile connector is helpful.
How does the 221-412 differ from the older WAGO 222 series?
This model is up to 40% smaller than the original WAGO 222 lever connectors, which helps reduce the space required in junction boxes and tight enclosures. It keeps the lever-style format while offering a lower-profile body for more compact installations.
What wire types and conductor sizes is the Wago 221-412 compatible with?
The 221-412 accepts solid and stranded conductors from 0.2 to 4 mm2. It also supports fine-stranded conductors from 0.14 to 4 mm2, making it suitable for a wide range of common electrical conductor types.
What are the electrical ratings of the Wago 221-412 connector?
This connector is rated for 32A current and 450V voltage. Those published ratings make it a suitable option for demanding low-voltage electrical applications where a compact connector is required.
Is the Wago 221-412 a good choice where space is limited?
Yes. The low-profile body measures 13.1 mm wide, 8.3 mm high, and 18.6 mm deep, and it is specifically positioned as a space-saving alternative to larger lever connectors. That compact footprint is one of the main reasons buyers choose this model.
Can you visually inspect connections with the Wago 221-412?
Yes. The connector has a transparent housing that allows visual inspection of the conductor position. It also includes test ports at both the front and rear, which adds convenience for verification and testing workflows.
What environments is the Wago 221-412 rated for?
The connector has an ambient temperature rating of 85°C. It is listed for use in applications such as industrial, networking, lighting, security, signalling, and HVAC, which makes it suitable for a broad range of commercial and technical environments.
