Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

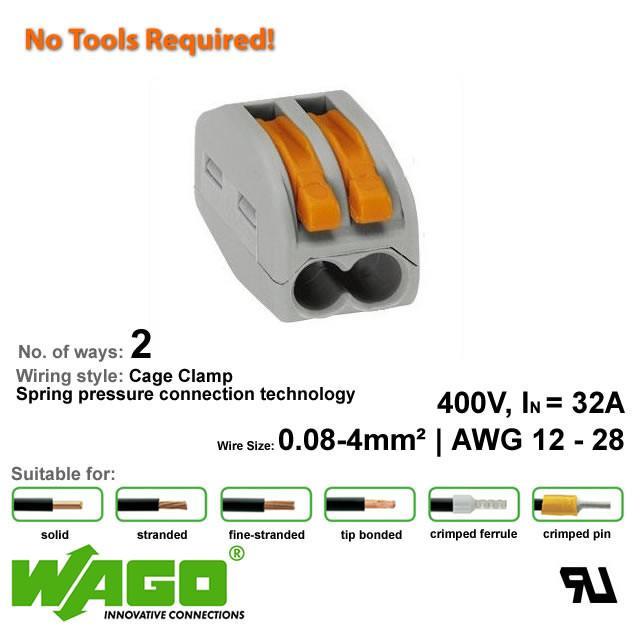

Wago 222-412 Compact Connector 2 Way - with Lever

SKU:

222-412

Notify me when it's back in stock

Description

The 222-412 from Wago is a 2 conductor terminal block with cage clamp connection. This connector allows for solid, stranded and fine stranded cables to be connected together without the need for any tools. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.

Features

Compact connecting terminal for up to 2 stripped flexible conductors
Conductor size from 0.08 to 4 mm²
Operating lever avoids the need for tools for operation
Voltage Rating: 400V

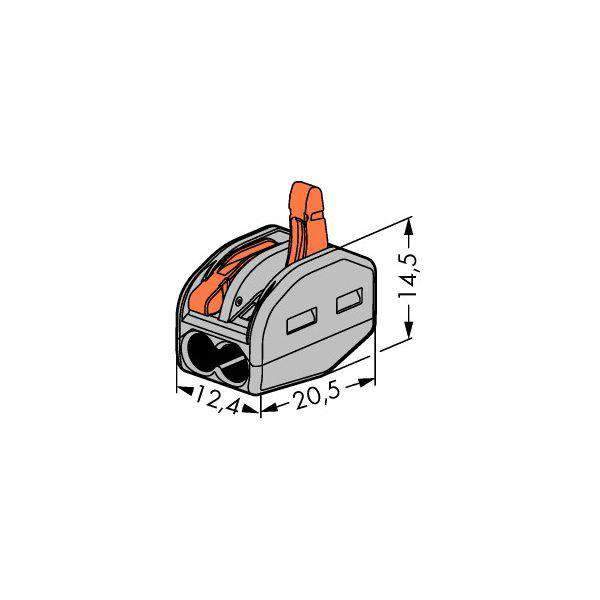

W: 12.4mm x H: 14.5mm x D: 20.5mm
Ambient Temperature: 40°C
Grey
Side entry wiring type

Applications

Industrial
Communications & Networking
Lighting
Security
Signalling
HVAC

Specifications

Brand

Wago
Rated Current

32 Ampere
Warranty

1 Year
Length

1.24 cm
Width

1.45 cm
Height

2.05 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Wago 222-412 Compact Connector used for?

The Wago 222-412 is a 2-way compact connector designed to join up to two conductors in a single terminal block. It is positioned for industrial, communications, lighting, security, signalling, and HVAC applications where a compact lever connector is needed.

What wire sizes is the Wago 222-412 compatible with?

This model supports conductor sizes from 0.08 to 4 mm², which is also listed as 28 AWG to 12 AWG in the product details. It is intended for solid, stranded, and fine stranded cables within that range.

What are the main specifications of the Wago 222-412?

The Wago 222-412 is rated for 32 A and 400 V. Its body dimensions are 12.4 mm wide, 14.5 mm high, and 20.5 mm deep, and it uses a side-entry wiring format with a lever-operated design.

How is the Wago 222-412 different from a standard screw-type connector?

This connector uses a cage clamp connection with an operating lever, so it does not require tools for operation. Compared with traditional screw-type terminals, its main differentiator is the compact lever-based format for supported conductor types and sizes.

Is the Wago 222-412 suitable for lighting and control-related applications?

Yes, the listed applications for this model include lighting, signalling, security, HVAC, and communications and networking. That makes it relevant for buyers looking for a compact connector for electrical accessory and control-related environments.

What environmental limit is stated for the Wago 222-412?

The product data lists an ambient temperature of 40°C for this model. Buyers should use that stated figure when checking whether the connector matches the conditions of their intended environment.
