Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

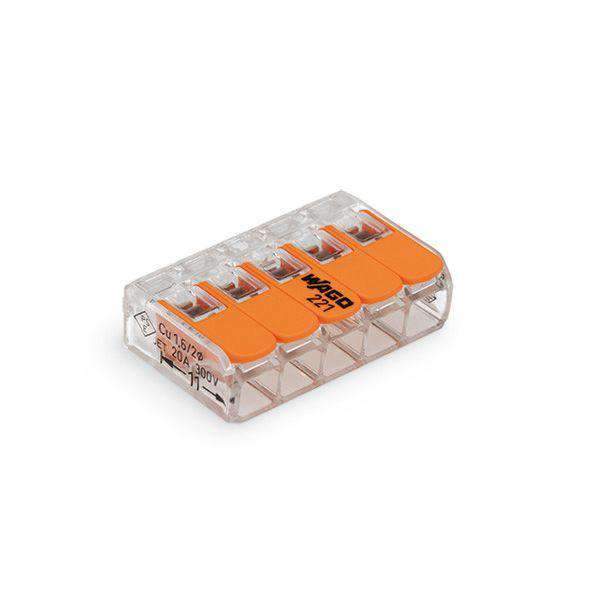

Wago 221-415 Compact Connector 5 Way - Low Profile with Lever

SKU:

221-415

Notify me when it's back in stock

Description

WAGO's new superstars for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes. They are 40% smaller than the 222 series lever connectors. The transparent housing allows visual inspection for correct wiring. There are also test ports at the front and rear of the connector.

Features

Up to 40% smaller less space required than for the original WAGO 222

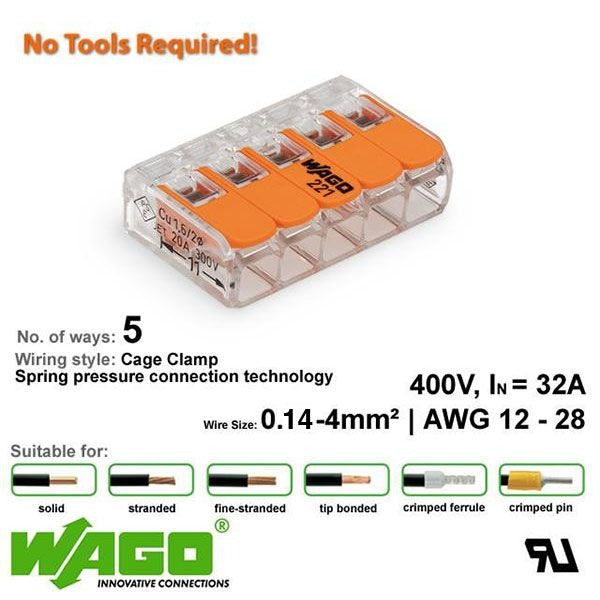

Solid & Stranded Conductors: 0.2-4mm²
Fine Stranded Conductor: 0.14-4mm²
Current Rating: 32A
Voltage Rating: 450V
W: 29.9mm x H: 8.3mm x D: 18.6mm
Ambient Temperature: 85°C
Clear with Orange Levers
Side entry wiring type

Applications

Industrial
Communications & Networking
Lighting
Security
Signalling
HVAC

Specifications

Brand

Wago
Rated Current

32 Ampere
Warranty

1 Year
Length

2.99 cm
Width

0.83 cm
Height

1.86 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Wago 221-415 Compact Connector used for?

The Wago 221-415 is a 5-way compact lever connector for joining electrical conductors in space-constrained applications. It is commonly used in industrial, lighting, HVAC, security, signalling, and communications environments where a compact, inspectable connector is preferred.

How does the Wago 221-415 differ from the older WAGO 222 series?

This model is designed to be up to 40% smaller than the original WAGO 222 series, which helps reduce the space needed in junction boxes and other tight enclosures. It also uses a transparent housing for visual inspection and includes front and rear test ports, which are highlighted features of this connector.

What wire sizes is the Wago 221-415 compatible with?

The connector supports solid and stranded conductors from 0.2 to 4 mm². It also accepts fine-stranded conductors from 0.14 to 4 mm², making it suitable for a broad range of conductor types within that size range.

What are the electrical ratings of the Wago 221-415?

The Wago 221-415 has a current rating of 32 A and a voltage rating of 450 V. These published ratings make it a compact connector intended for appropriately rated low-voltage electrical applications.

Is the Wago 221-415 suitable for tight or high-temperature environments?

This model is specifically positioned as a low-profile compact connector, with dimensions of 29.9 mm wide, 8.3 mm high, and 18.6 mm deep, so it is well suited to applications where space is limited. It also has an ambient temperature rating of 85°C, which supports use in demanding commercial and industrial environments within that limit.
