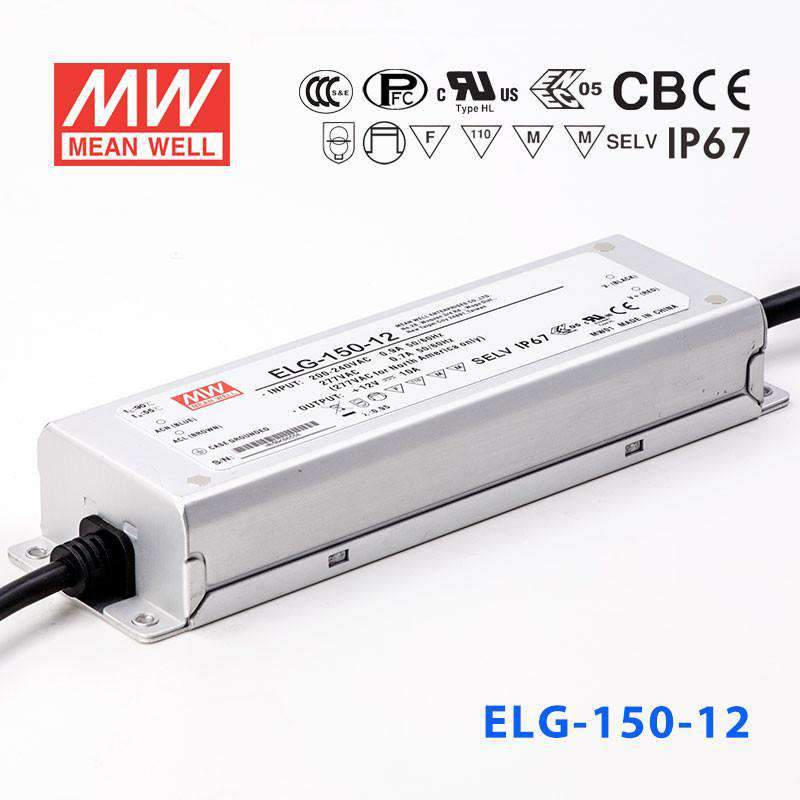

Mean Well ELG-150-12AB Power Supply 120W 12V - Adjustable and Dimma...
Log in to see priceOverview
ELG-150-12AB is the 12V output model of this series: rated current 10A, rated power 120W, typical efficiency 88%.
ELG-150 series is a 150W LED AC/DC power supply featuring the dual operating modes, constant current mode output and constant voltage mode output. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40β~+90β case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.
Features
- 180~295VAC input range
- Built-in active PFC function
- No load power consumption <0.5W

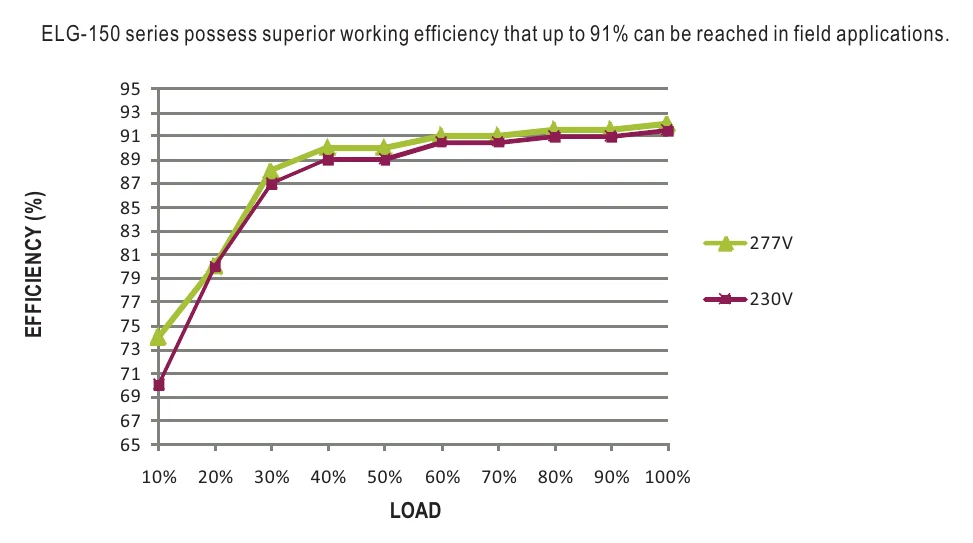

- High efficiency up to 91%
- Fanless design, cooling by free air convection
- IP67 / IP65 design for indoor or outdoor installations
- Output current adjustable through output cable or internal potentiometer for A-Type

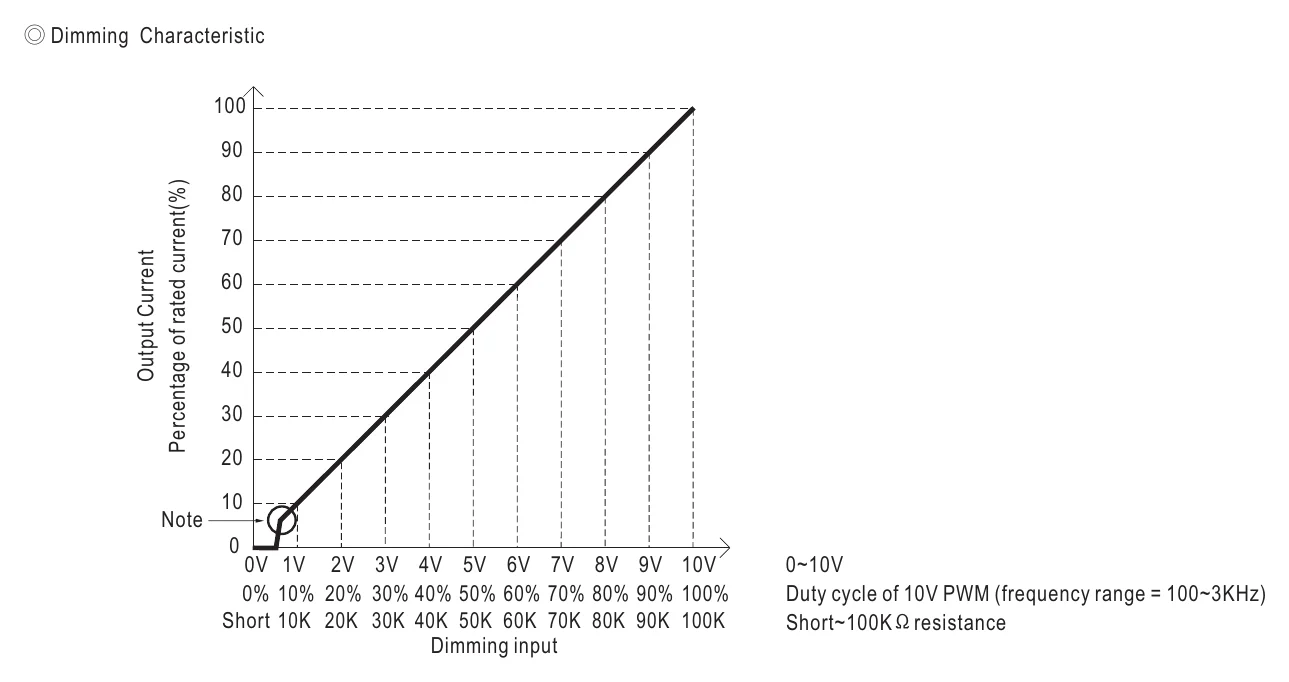

- Built-in 3 in 1 dimming function for B-Type (0~10Vdc or 10V PWM signal or resistance)
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Suitable for dry / damp / wet locations
- Type βHLβ for use in class β , Division 2 hazardous(Classified) location luminaires
- 5 years warranty(Note.8)
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- CONSTANT CURRENT REGIONNote.4
- 6 ~ 12V
- RATED CURRENT
- 10A
- RATED POWER
- 120W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 10.8 ~ 13.2V
- VOLTAGE ADJ. RANGE
- Can be adjusted by internal potentiometer (for A-Type only)
- CURRENT ADJ. RANGE
- 5 ~ 10A
- CURRENT ADJ. RANGE
- Can be adjusted by internal potentiometer (for A-Type only)
- AUXILIARY POWER
- Nominal 15V(deviation 11.5~15.5V), 0.4A (for BE-Type only)
- VOLTAGE TOLERANCENote.3
- Β±3.0%
- LINE REGULATION
- Β±0.5%
- LOAD REGULATION
- Β±2.0%
- SETUP, RISE TIMENote.6
- 500ms, 100ms at 95% load 230VAC
- HOLD UP TIME (Typ.)
- 10ms at 95% load 230VAC
INPUT
- VOLTAGE RANGENote.5
- 180 ~ 295VAC 255 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR

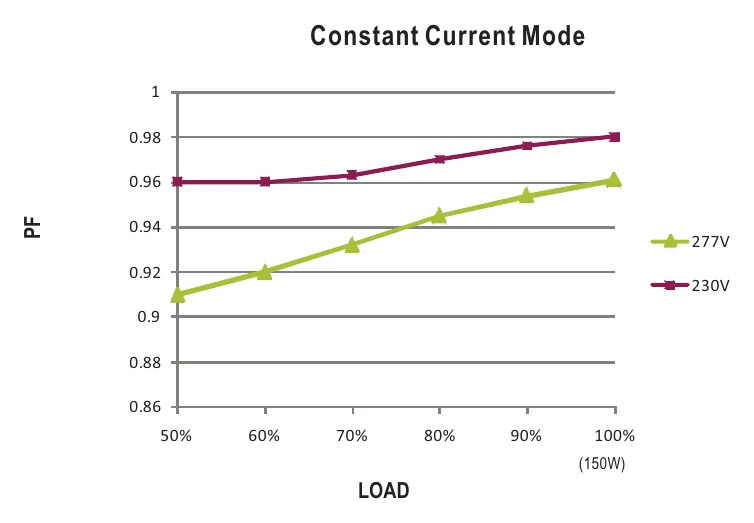

- PFβ§0.95/230VAC PFβ§0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loadingβ§50% at 230VAC input and output loadingβ§75% at 277VAC input
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT
- 0.9A / 230VAC 0.7A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=550ΞΌs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108%
- OVER CURRENT
- Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 14 ~ 18V
- OVER VOLTAGE
- Protection type : Shut down o/p voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90β(Refer to "Derating Curve")
- MAX. CASE TEMP.
- Tcase=+90β
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03%/β (0 ~ 50β)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(typeβHLβ), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to EN55015,EN61000-3-2 Class C (β§50% loading) ; EN61000-3-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge 6KV) , criteria A
OTHERS
- MTBF
- 313.66Khrs min. MIL-HDBK-217F (25β)
- DIMENSION
- 219*63*35.5mm (L*W*H)
- PACKING
- 0.88Kg ; 16pcs/15.4kg/0.77CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25β of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- 8. Refer to warranty statement.

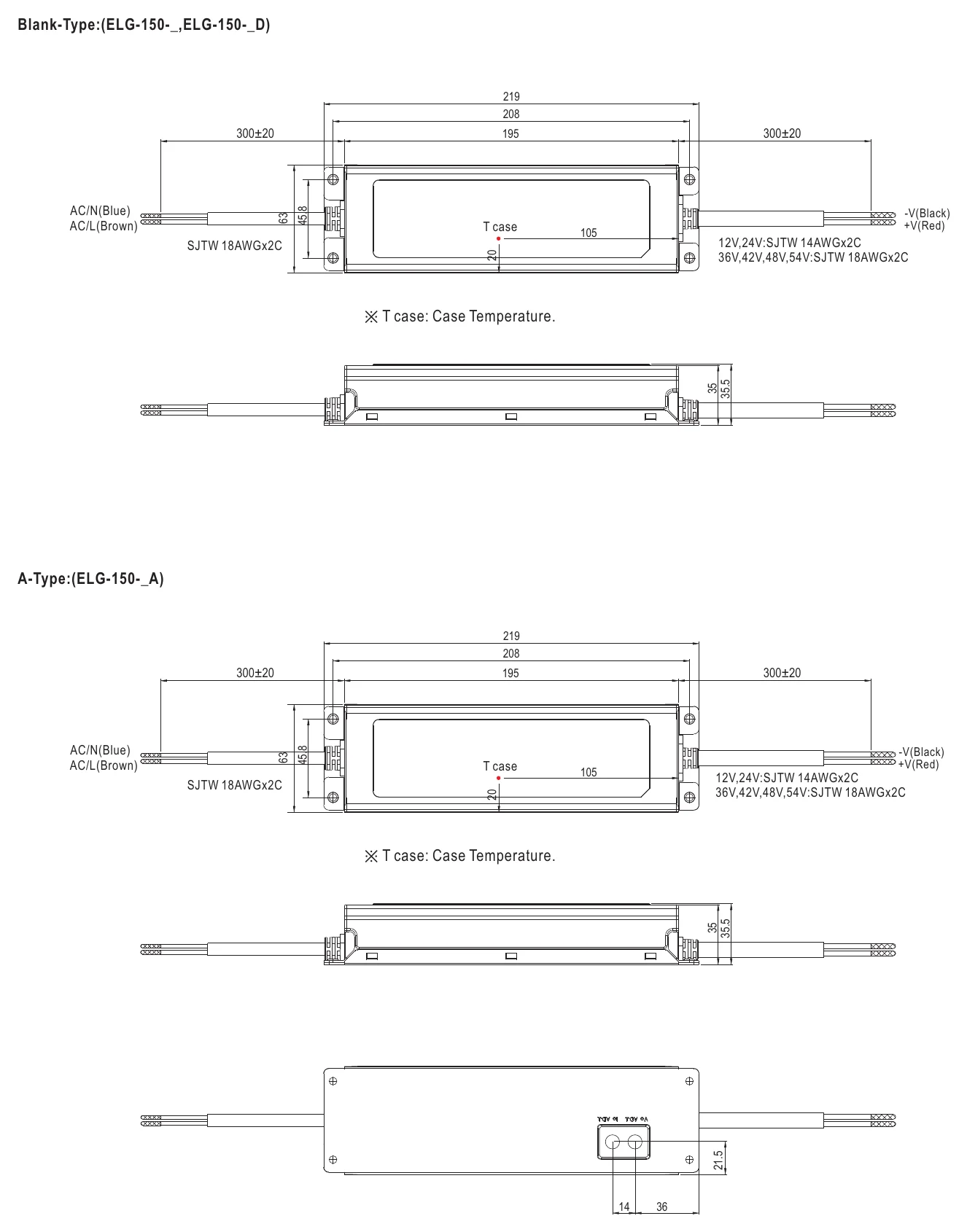

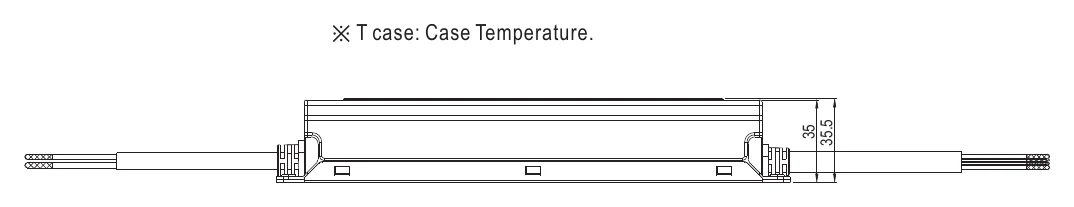

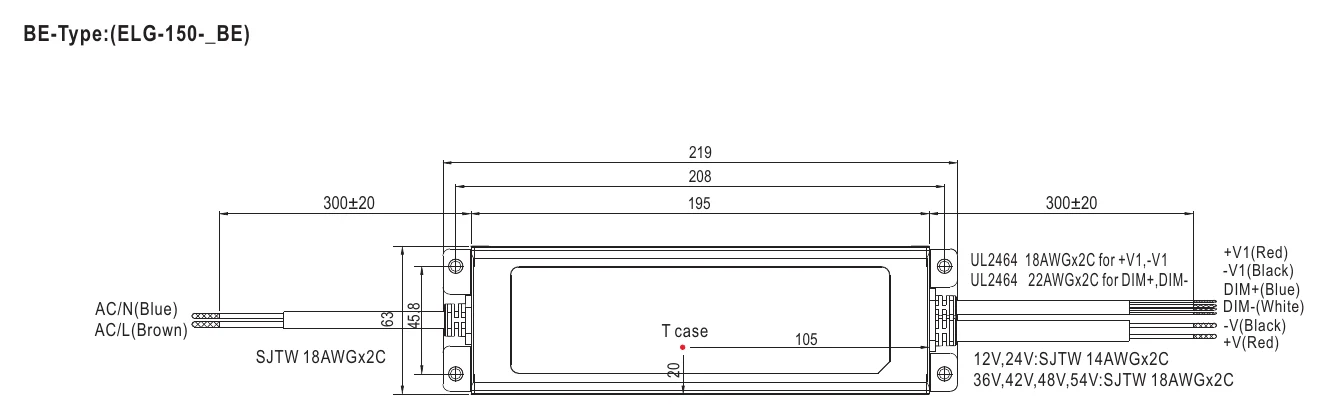

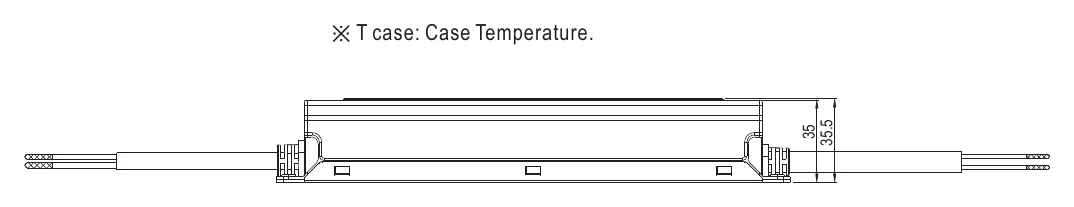

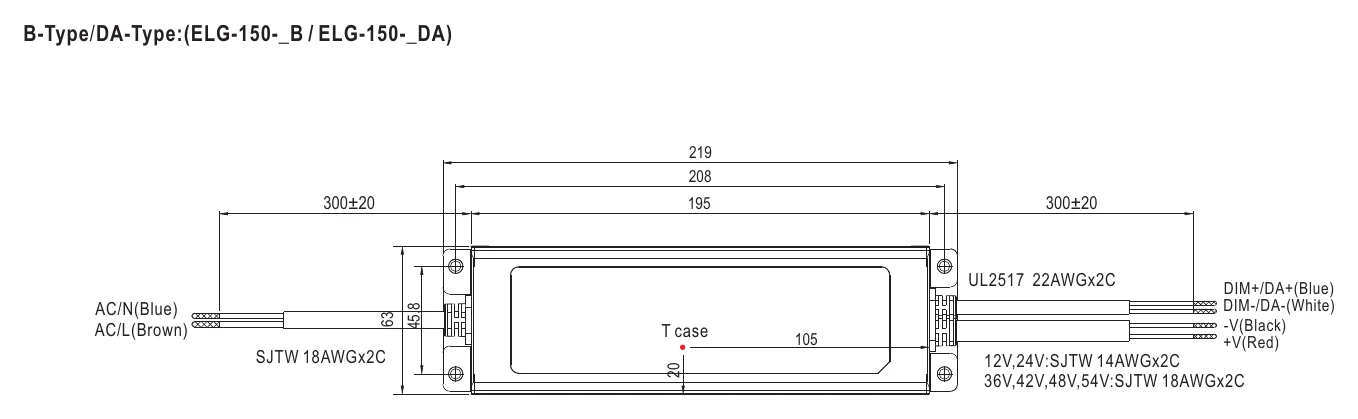

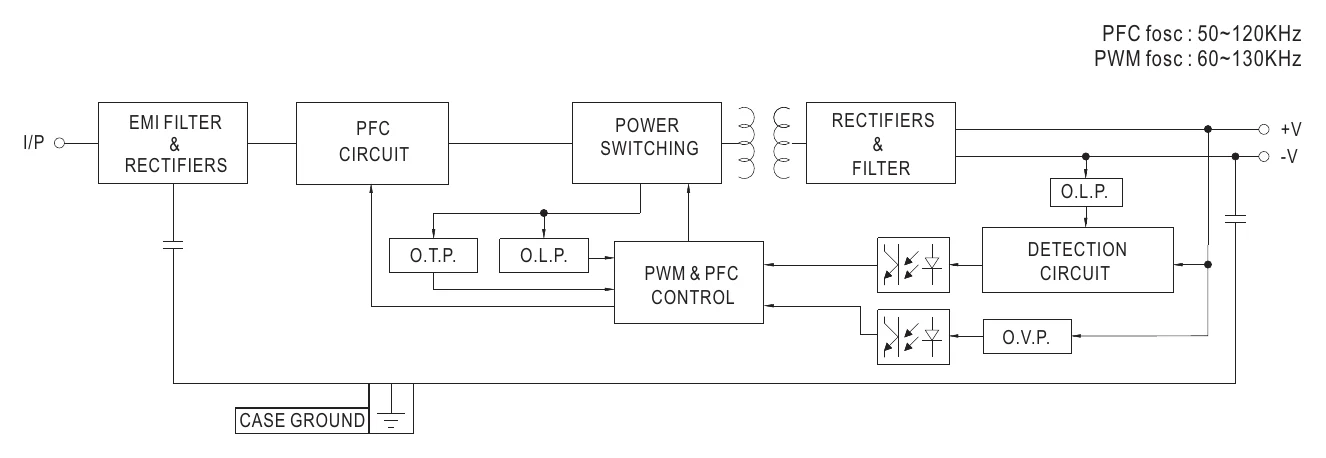

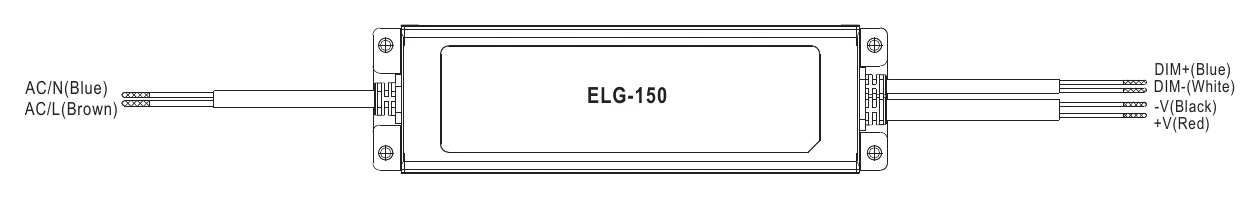

Technical drawings
Typical applications
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED floodlighting
- Class β , Division 2 hazardous (Classified) location luminaires
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can the ELG-150-12AB be used to drive 12V LED strips in an outdoor retail sign cabinet?
The ELG-150-12AB is rated IP65, which protects against water jets and dust but is not submersion-rated. It is appropriate for sign cabinets that shield the driver from direct rain exposure. For unprotected outdoor mounting where direct rain contact is likely, consider the IP67-rated ELG-150-12B instead.
Is the ELG-150-12AB appropriate for a 12V LED strip installation in a hotel corridor with a building-automation dimming system?
Yes. The AB suffix means the driver supports both adjustable output current and 3-in-1 dimming (1β10V, PWM, and resistance). This covers the range of control interfaces used in building-automation and hospitality environments, allowing integration with scene controllers or BMS systems.
How many meters of 12V LED strip can the ELG-150-12AB power?
The driver outputs 120W at 10A. For a 12V strip rated at 14.4 W/m, you can run approximately 8.3 m per driver (120 W Γ· 14.4 W/m). For a denser strip at 24 W/m, that reduces to about 5 m. Always verify the strip's rated power per meter and allow a 10β20% safety margin.
Can the ELG-150-12AB power 12V LED tape used in cove lighting for a restaurant interior?
Yes. With 120W of output at 12V and support for continuous dimming via the built-in 3-in-1 interface, this driver suits restaurant cove lighting where tunable ambient levels are needed for different service periods. The adjustable current also allows fine brightness calibration during the fit-out.
Is the ELG-150-12AB suitable for 12V LED strip lighting in a residential bathroom with steam or humidity?
The IP65 rating provides protection against water spray, which covers steam and humidity in bathroom environments. Avoid direct water contact on the driver body. For shower niches or areas with direct water splash, the IP67 variant would offer additional protection.
Can this driver be used in a commercial office fit-out with 0β10V dimmers controlling 12V LED strip ceiling lights?
Yes. The AB model includes 1β10V dimming support as part of its 3-in-1 interface, which is directly compatible with standard 0β10V commercial dimmers. At 120W and 10A, it provides sufficient power for multi-meter runs of 12V ceiling strip in open-plan office layouts.
