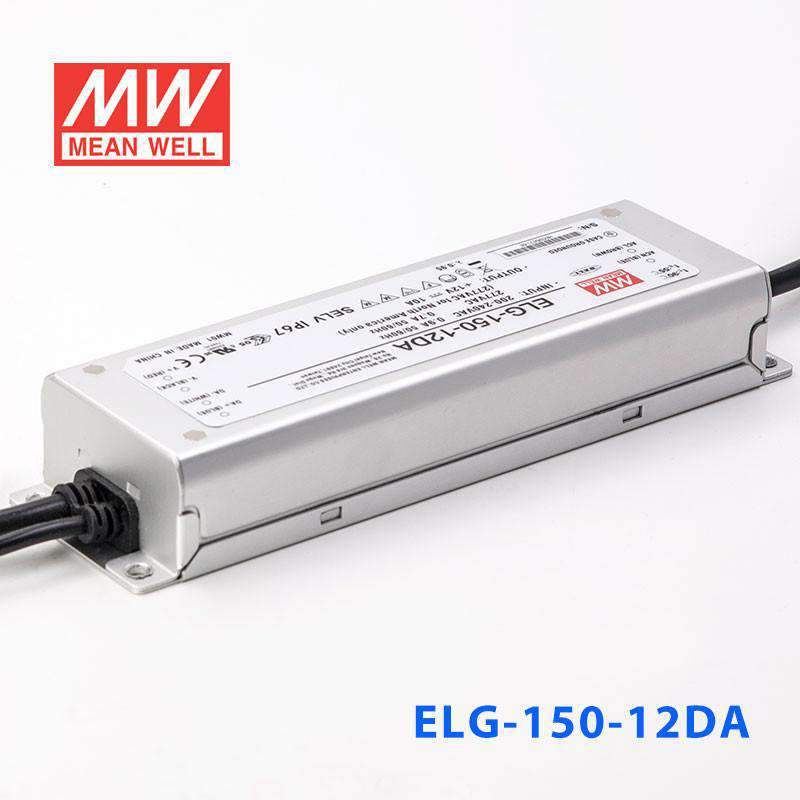

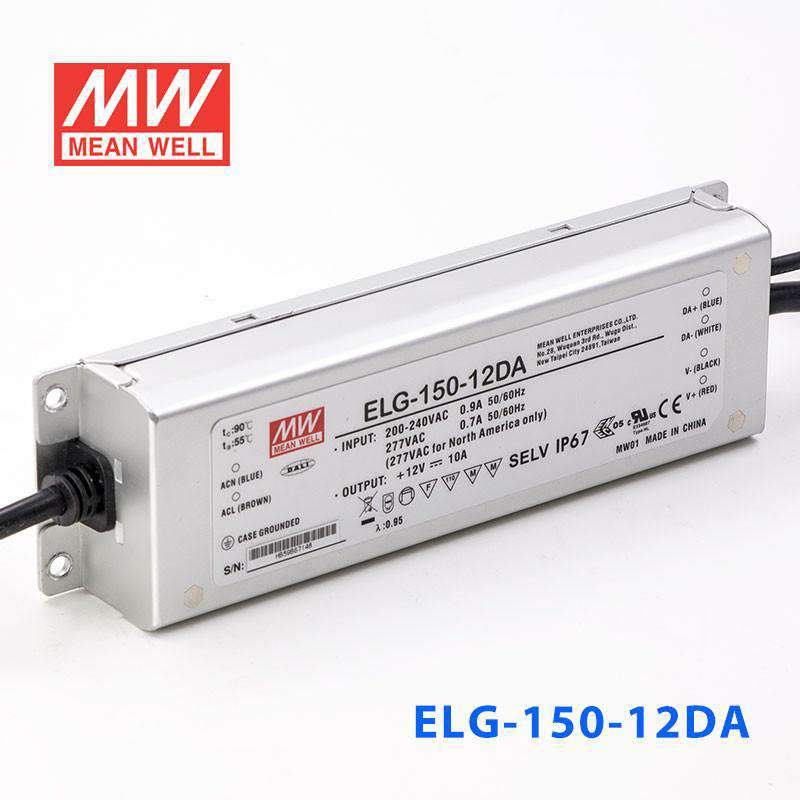

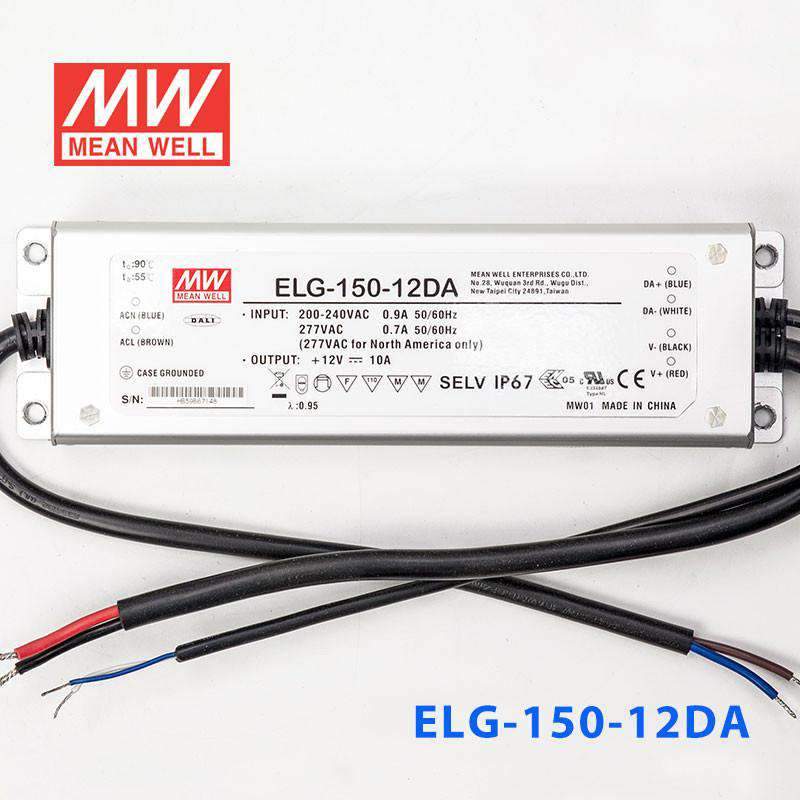

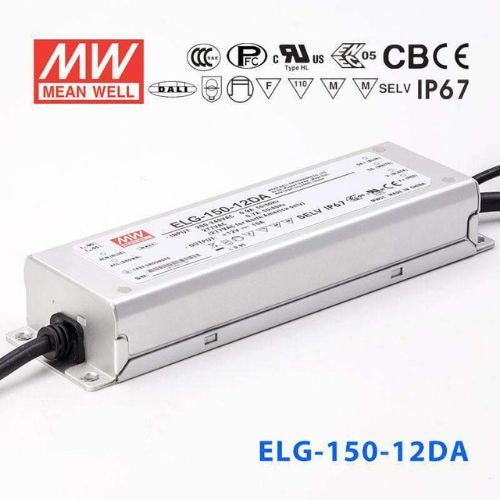

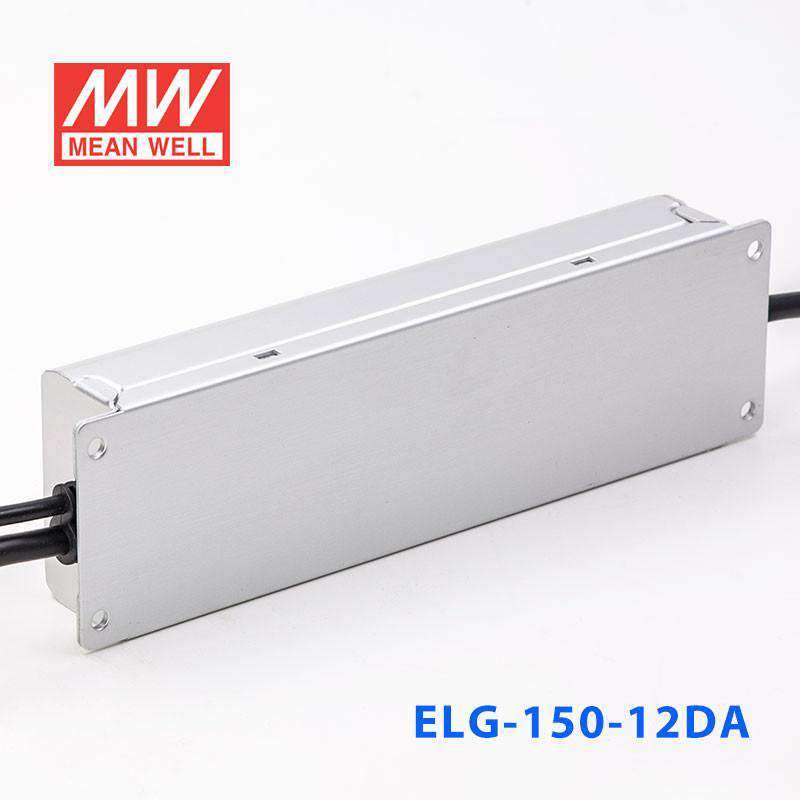

Mean Well ELG-150-12DA Power Supply 120W 12V - DALI 10A

metal caseIP65/IP675 years warranty
SKU ELG-150-12DA
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 18 in this family

ELG-150-12DA
Available to order
|

Overview

ELG-150-12DA is the 12V output model of this series: rated current 10A, typical efficiency 88.5%. Type DA: DALI control technology (IP67).

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 rating for indoor or outdoor installations
  • Function options: DALI
  • Typical lifet ime>50000 hours
  • 5 years warranty

Specifications

ELG-150-12DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE
12V
CONSTANT CURRENT REGIONNote.2
6 ~ 12V
RATED CURRENT
10A
RATED POWER 100VAC ~ 180VAC
84W
RATED POWER 200VAC ~ 305VAC
120W
RIPPLE & NOISE (max.)Note.3
150mVp-p
VOLTAGE TOLERANCENote.4
Β±3.0%
LINE REGULATION
Β±0.5%
LOAD REGULATION
Β±2.0%
SETUP, RISE TIMENote.6
1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.)
10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to β€œTOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
88.5%
AC CURRENT
1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.)
COLD START 65A(twidth=550ΞΌs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
14 ~ 18V Shut down output voltage, re-power on to recover
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to β€œ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type
Type HL

MODEL ENCODING

Blank
Io and Vo fixed; IP67
A
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA (this model)
DALI control technology; IP67
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to β€œSTATIC CHARACTERISTICS” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  9. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  13. 13. ELG-150-12(except blank/A-Type) is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) .

Technical drawings

ELG-150-12DA Block Diagram
Block Diagram
ELG-150-12DA OUTPUT LOAD vs TEMPERATURE(Note.9)
OUTPUT LOAD vs TEMPERATURE(Note.9)
ELG-150-12DA STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-150-12DA TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-150-12DA LIFE TIME
LIFE TIME
ELG-150-12DA β€» B/DA-Type
β€» B/DA-Type
ELG-150-12DA β€» 3Y Model (3-wire input)
β€» 3Y Model (3-wire input)
ELG-150-12DA Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type β€œHL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I integrate the ELG-150-12DA into a DALI-based smart lighting system?

Yes. The 'DA' suffix indicates DALI protocol dimming, allowing the driver to be individually addressed and controlled by a DALI lighting management system. This is suitable for office, hospitality, or retail installations using centralized scene control.

Is the ELG-150-12DA suitable for powering outdoor architectural LED strip lighting?

Yes. The IP67 waterproof rating protects the driver against rain and temporary water exposure, and the -40Β°C to +90Β°C case temperature (Tcase) range covers outdoor use in most climates. At 12V it is compatible with standard outdoor-rated 12V LED strip products.

How much 12V LED strip can the ELG-150-12DA drive?

The ELG-150-12DA supplies 120W at 12V. For a 12 W/m strip: 120 Γ· 12 = 10 m maximum; at 80% derating for continuous duty that is 8 m. Check your specific strip's rated power per meter for an accurate calculation.

Can the ELG-150-12DA be used for theatre stage wash lighting that needs smooth dimming?

Yes. DALI dimming provides digitally controlled dimming down to a minimum of about 8% output, which suits theatre stage applications that use scene programming. The driver outputs 120W at 12V, compatible with LED strip or module fixtures used in wash lighting.

Is the ELG-150-12DA rated for installation in a wet outdoor location?

The IP67 rating certifies the enclosure against dust ingress and temporary immersion in up to 1 m of water, which suits wet outdoor locations. Always confirm with your local authority having jurisdiction that the driver installation method meets site-specific requirements.
