Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

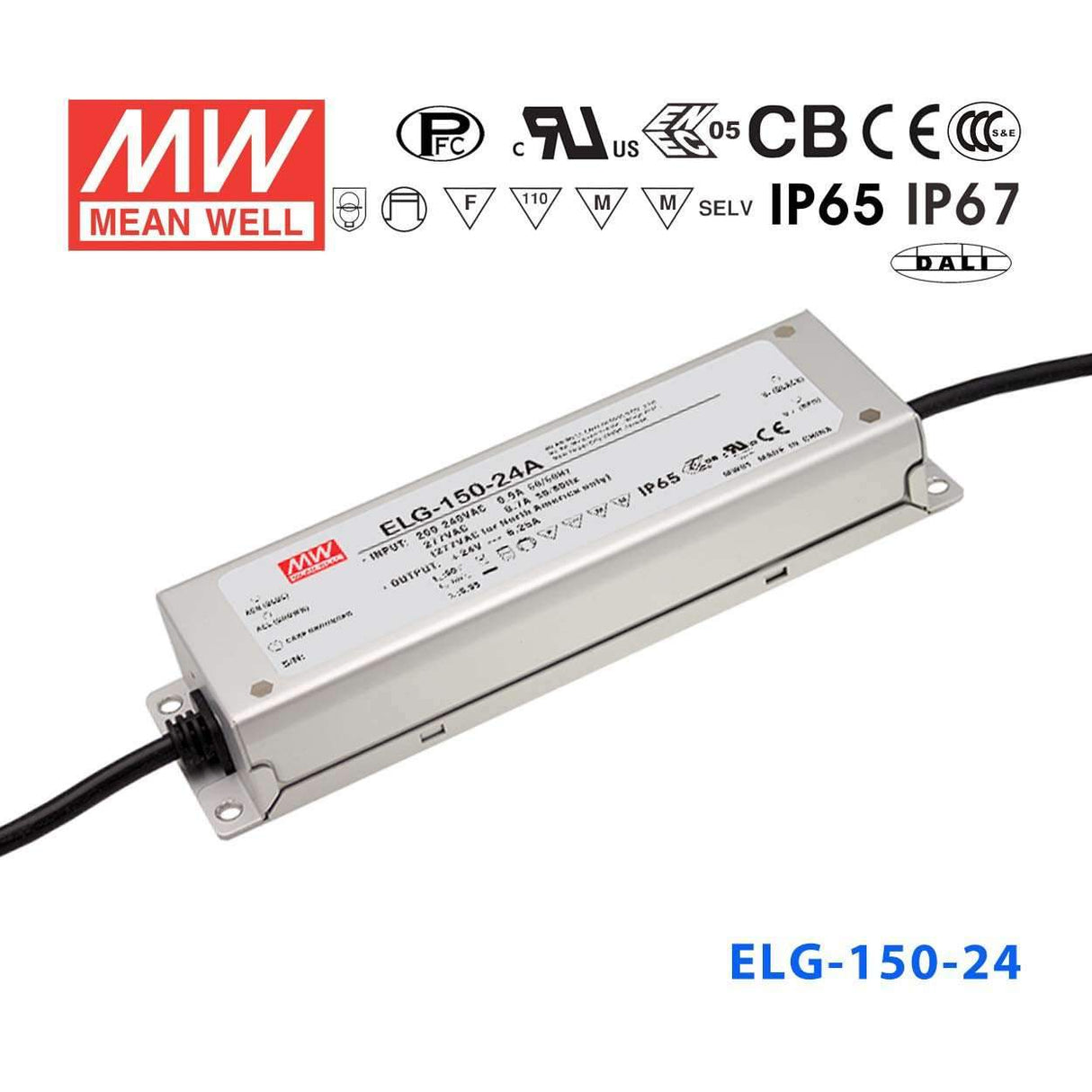

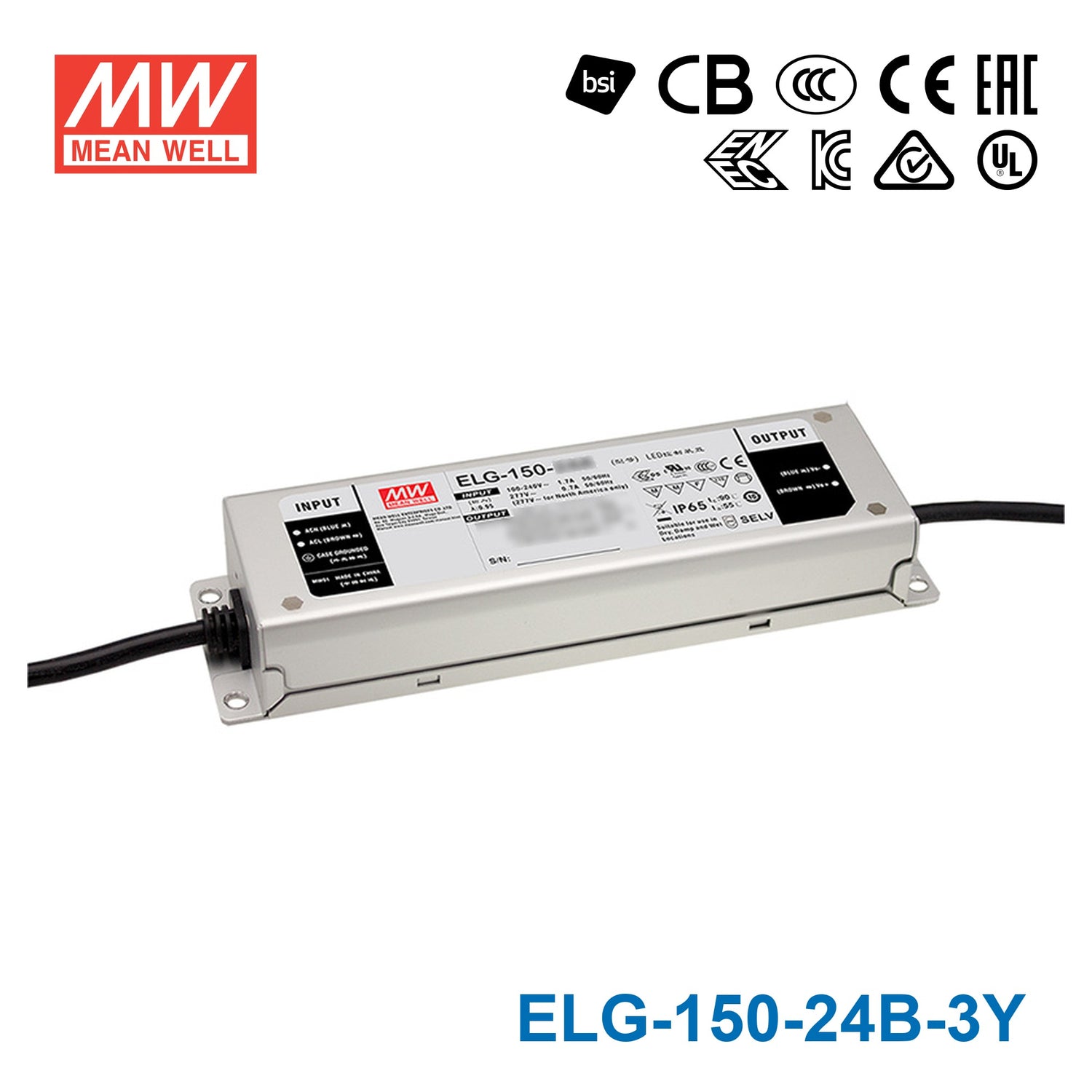

Mean Well ELG-150-24B-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 6.25A

metal caseIP65/IP675 years warranty

SKU:

ELG-150-24B-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-150-24B is a 150W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & EMC DALI STANDARDS
✓ 3 years warranty

Frequently Asked Questions

What does the '3Y' suffix mean on the ELG-150-24B-3Y, and how does it affect warranty?

The ELG-150-24B-3Y is a variant of the ELG-150-24B produced to meet specific regional certification requirements; the standard warranty on this product is 5 years, consistent with the rest of the ELG-150 series. The suffix designates a particular compliance batch rather than a reduced warranty period.

Can the ELG-150-24B-3Y be installed in an outdoor LED billboard or backlit sign?

Yes. Rated IP67 waterproof and operating across -40°C to +90°C, the ELG-150-24B-3Y can be mounted inside outdoor sign enclosures exposed to rain and temperature swings. Its 150W, 24V, 6.25A output suits medium-to-large backlit LED panel installations.

Does the ELG-150-24B-3Y support PWM dimming for 24V LED strip lighting?

Yes. The B interface on the ELG-150-24B-3Y supports PWM, 0–10V analog, and resistance dimming inputs. This allows the LED brightness to be controlled by any of these three standard methods without any hardware modification.

How much 24V LED strip can the ELG-150-24B-3Y drive?

The maximum output is 150W at 24V. For a 12 W/m LED strip, this allows up to 12.5 m (150 ÷ 12). For a 24 W/m high-density strip, the limit is about 6.25 m (150 ÷ 24). Always verify your strip's rated power per meter and stay within the 150W limit.

Is the ELG-150-24B-3Y suitable for humid or marine outdoor environments?

The IP67 rating means the ELG-150-24B-3Y is protected against dust ingress and temporary water immersion, which covers humid enclosures and indirect water exposure in marine or coastal settings. Direct submersion or extended immersion beyond the IP67 spec is not recommended.

Can the ELG-150-24B-3Y power 24V LED strips for a retail window display with dimmable control?

Yes. The 150W, 24V output can supply a substantial run of 24V LED strip for a retail display, and the B dimming interface allows brightness adjustment via a 0–10V controller or PWM dimmer, which is common in retail lighting control systems.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24 Power Supply 150W 24V with AU/NZ plug 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 10A	150W	12V	10A	IP67	View
Mean Well ELG-150-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 6.25A	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12 Power Supply 120W 12V with AU/NZ plug 10A	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-48A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 3.13A	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24DA-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B Power Supply 120W 12V 3-wire Input - Dimmable 10A	120W	12V	10A	IP67	View
