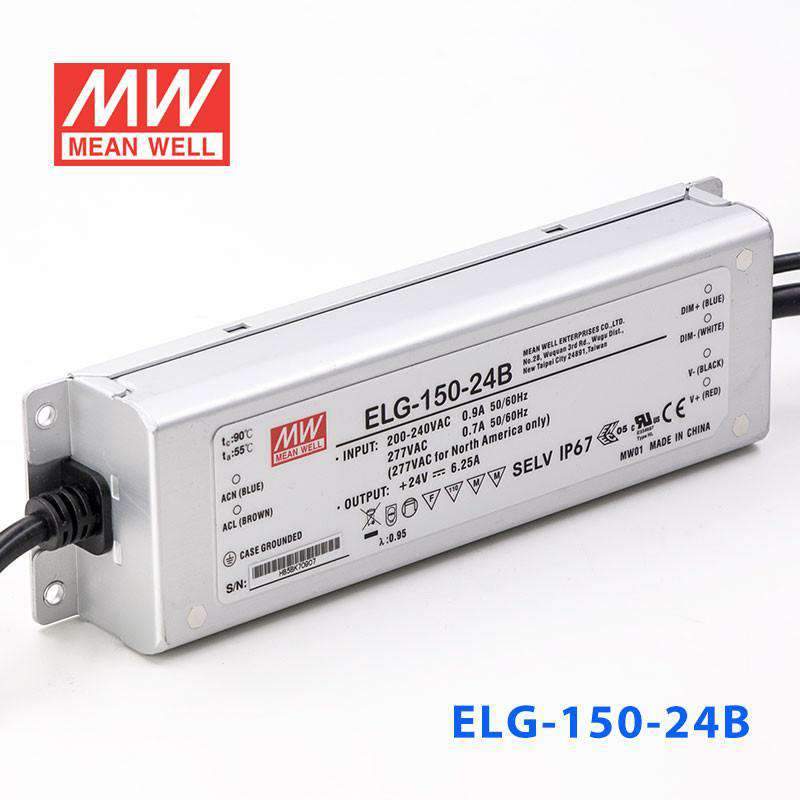

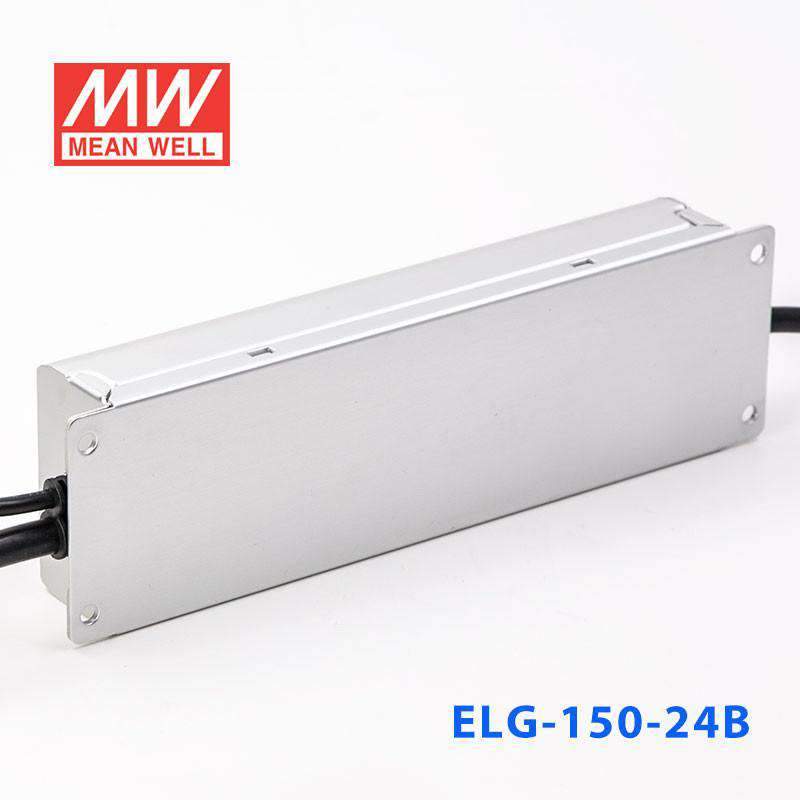

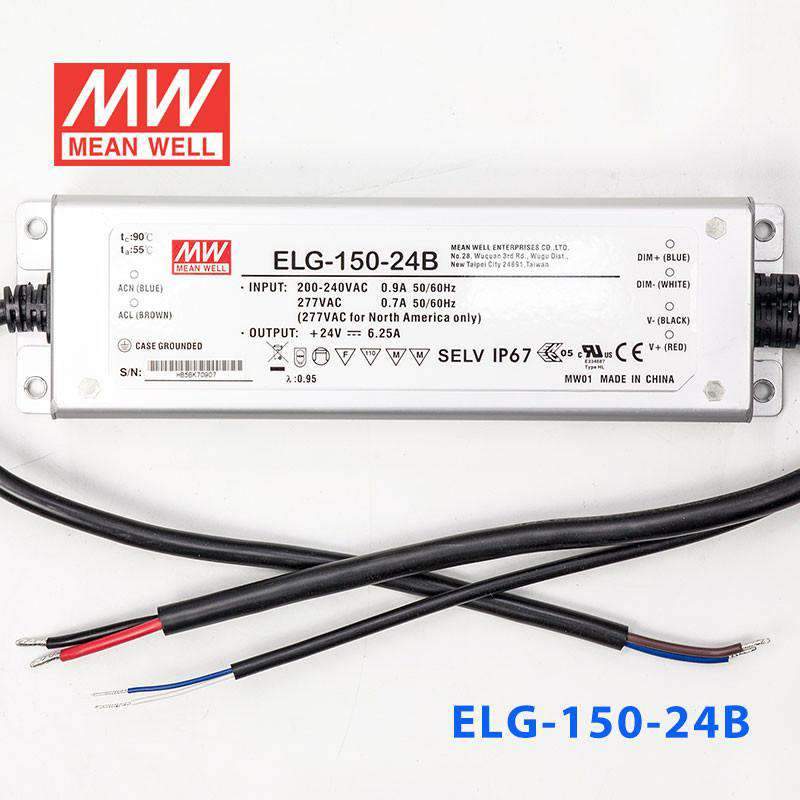

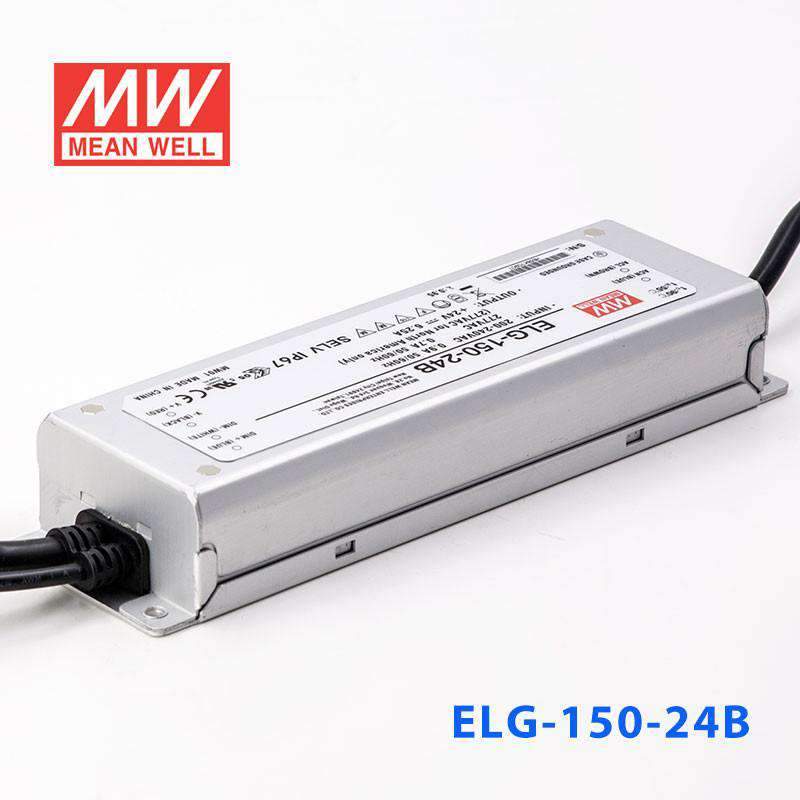

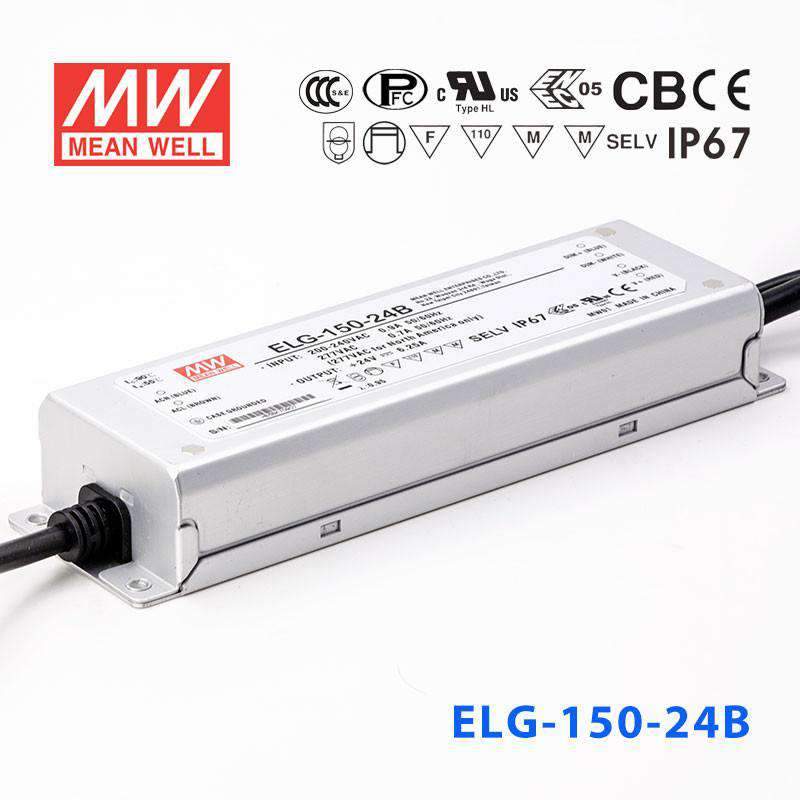

Mean Well ELG-150-24B Power Supply 150W 24V - Dimmable 6.25A
Log in to see priceThe ELG-150 is a 150W Mean Well power converter.
Key Features
- β DC output voltage adjustable Β±10%
- β 3.75KVAC reinforced I/O isolation
- β Protections: Short circuit / Over voltage / Over temperature
- β Active PFC β meets international energy efficiency regulations
- β Safety approvals: UL8750 (typeβHLβ), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- β 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40Β°C~90Β°C
-
Warranty5 Year
-
Length21.9 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.95 kg
::specification::
Frequently Asked Questions
Can the ELG-150-24B be installed outdoors in direct rain exposure?
Yes. The ELG-150-24B carries an IP67 waterproof rating, meaning it can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it appropriate for outdoor LED sign and landscape lighting installations where the driver may be exposed to rain or wash-down.
Can I use the ELG-150-24B to drive 24V LED strips inside an outdoor architectural lighting fixture?
Yes. With 150W at 24V and IP67 protection, the ELG-150-24B is suitable for outdoor architectural fixtures, facade lighting, and similar applications where the driver is housed inside a weatherproof fitting. It supplies up to 6.25A to 24V LED loads.
Is the ELG-150-24B compatible with PWM dimmers or 0β10V dimming systems?
The B suffix designates a three-in-one dimming interface: PWM signal (10V/1kHz), 0β10V analog signal, and resistance dimming (10β100kΞ©). All three methods can reduce the output to a low level, making the ELG-150-24B compatible with standard commercial dimmer controllers.
What strip length can the ELG-150-24B support at 24V?
The driver can supply up to 150W total. For a 10 W/m strip, that is up to 15 m (150 Γ· 10). For a 19.2 W/m strip, approximately 7.8 m (150 Γ· 19.2). Check your specific strip's rated power per meter; never exceed the 150W total output.
Can the ELG-150-24B power LED strips in a cold-room or freezer environment?
Yes. The operating temperature range is -40Β°C to +90Β°C, so the driver functions normally in sub-zero cold-room or freezer environments. The IP67-rated metal enclosure provides additional protection against condensation and moisture in those settings.
Is the ELG-150-24B suitable for use in a neon-replacement LED tube signage project?
Yes. 24V LED neon-flex or tube strips are commonly used in neon-replacement signage, and the ELG-150-24B's 150W, 24V output can power a meaningful length of such strip. The IP67 rating is also beneficial for outdoor sign cabinets subject to weather.
