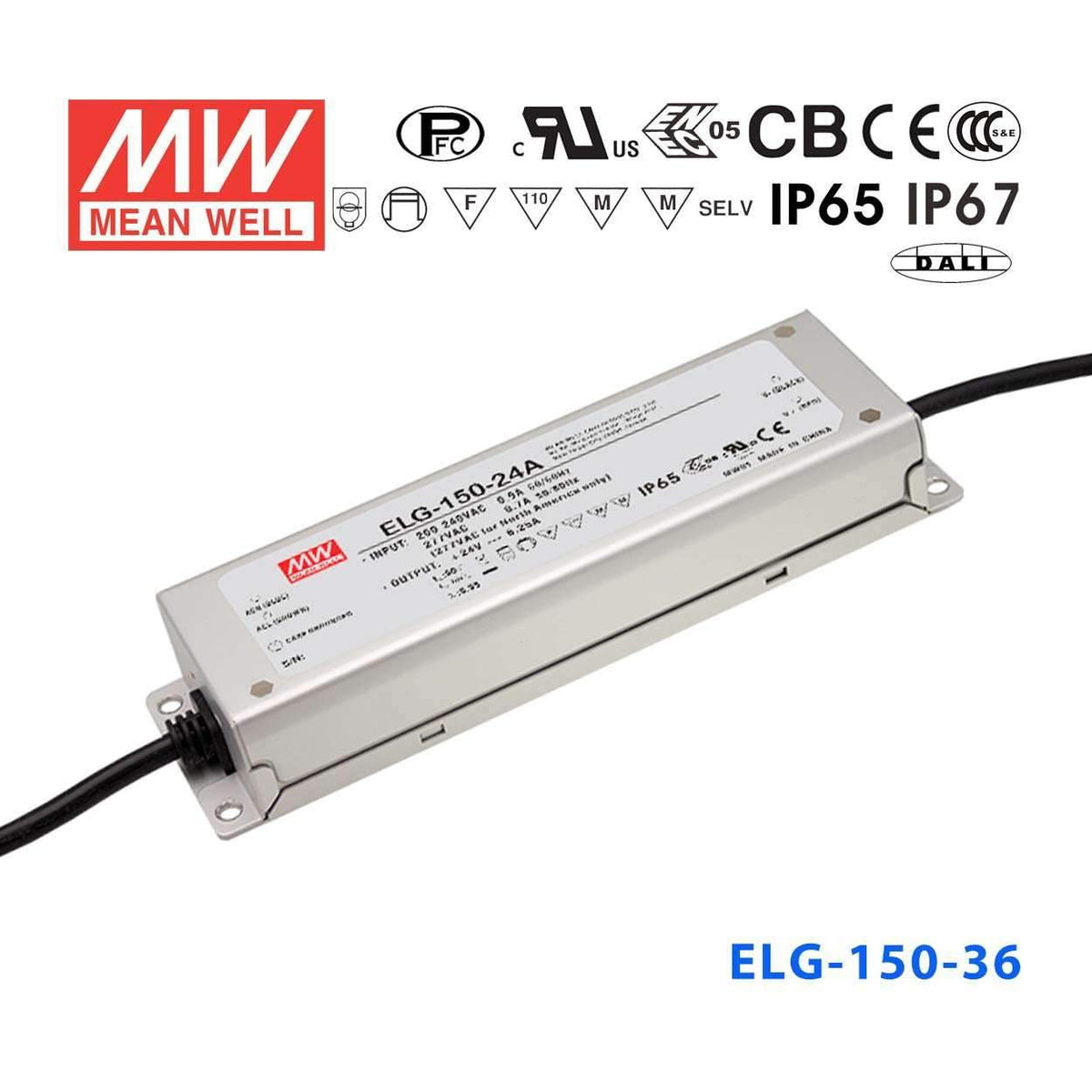

Mean Well ELG-150-36AB Power Supply | Adjustable & Dimmable - Auckland Distributor

The ELG-150 is a 150W Mean Well power converter.

Key Features

✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

Can I use the ELG-150-36AB to power a 36V LED strip installation in a covered outdoor area?

Yes. The ELG-150-36AB is rated IP65, meaning it is protected against low-pressure water jets from any direction. This makes it suitable for covered outdoor or semi-exposed locations such as canopies, soffits, or sheltered signage cabinets where the driver will not be directly rained on.

How many meters of 36V LED strip can the ELG-150-36AB power?

The ELG-150-36AB delivers 150.1W at 36V. To estimate strip length, divide 150W by your strip's rated power per meter. For example, a 10 W/m strip yields roughly 15 meters maximum; a 14.4 W/m strip yields roughly 10.4 meters. Always check your specific strip's rated power per meter and derate by ~80% for a safe continuous load, giving approximately 12 m or 8.3 m respectively in those examples.

Is the ELG-150-36AB suitable for outdoor LED channel letter signage?

Yes. The 36V output and 150.1W capacity make it a strong match for medium to large LED channel letter signs. Its IP65 rating provides dust-tight protection and resistance to water spray, covering most signage enclosure environments. The -40°C to +90°C operating temperature range accommodates both cold-climate and heat-exposed cabinet installations.

Can I dim the ELG-150-36AB and also manually adjust its output voltage?

Yes. The 'A' suffix indicates an analog voltage/resistance dimming input (0–10V or 10V PWM or resistance), and the 'B' suffix indicates a built-in potentiometer for output voltage trimming. The ELG-150-36AB includes both, so you can fine-tune the output within the 18–36V constant-current range using the onboard trim pot and also dim the driver via a 0–10V control signal.

Can this driver power 36V LED strips for architectural cove lighting indoors?

Yes. The ELG-150-36AB works well for indoor architectural cove or linear lighting runs using 36V strip. The constant-current operation with a 18–36V compliance range accommodates varying strip lengths within one run, and the 0–10V dimming allows smooth integration with building automation or wall dimmers.

Is the ELG-150-36AB a good choice for retail display case lighting using 36V strips?

Yes. Its compact 219 × 63 × 35.5 mm metal case fits in most display case back-panels or under-shelf enclosures. At 150.1W, it can power multiple short runs of 36V strip simultaneously, and the 0–10V dimming allows brightness adjustment without a separate dimmer module.

How does the ELG-150-36AB compare to the ELG-150-36 and ELG-150-36B in terms of control options?

All three share the same 150.1W, 36V, 4.17A output and IP65/IP67 housing. The ELG-150-36 has no dimming or adjustment. The ELG-150-36B adds only a built-in output-voltage trimming potentiometer. The ELG-150-36AB adds both the potentiometer (B) and a 0–10V / PWM / resistance dimming input (A), making it the most flexible variant for dimming-capable installations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	150W	12V	10A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24A-3Y Power Supply 150W 24V - Adjustable 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth)	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24DA-3Y Power Supply 150W 24V - DALI 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B-3Y Power Supply 120W 12V - Dimmable 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
