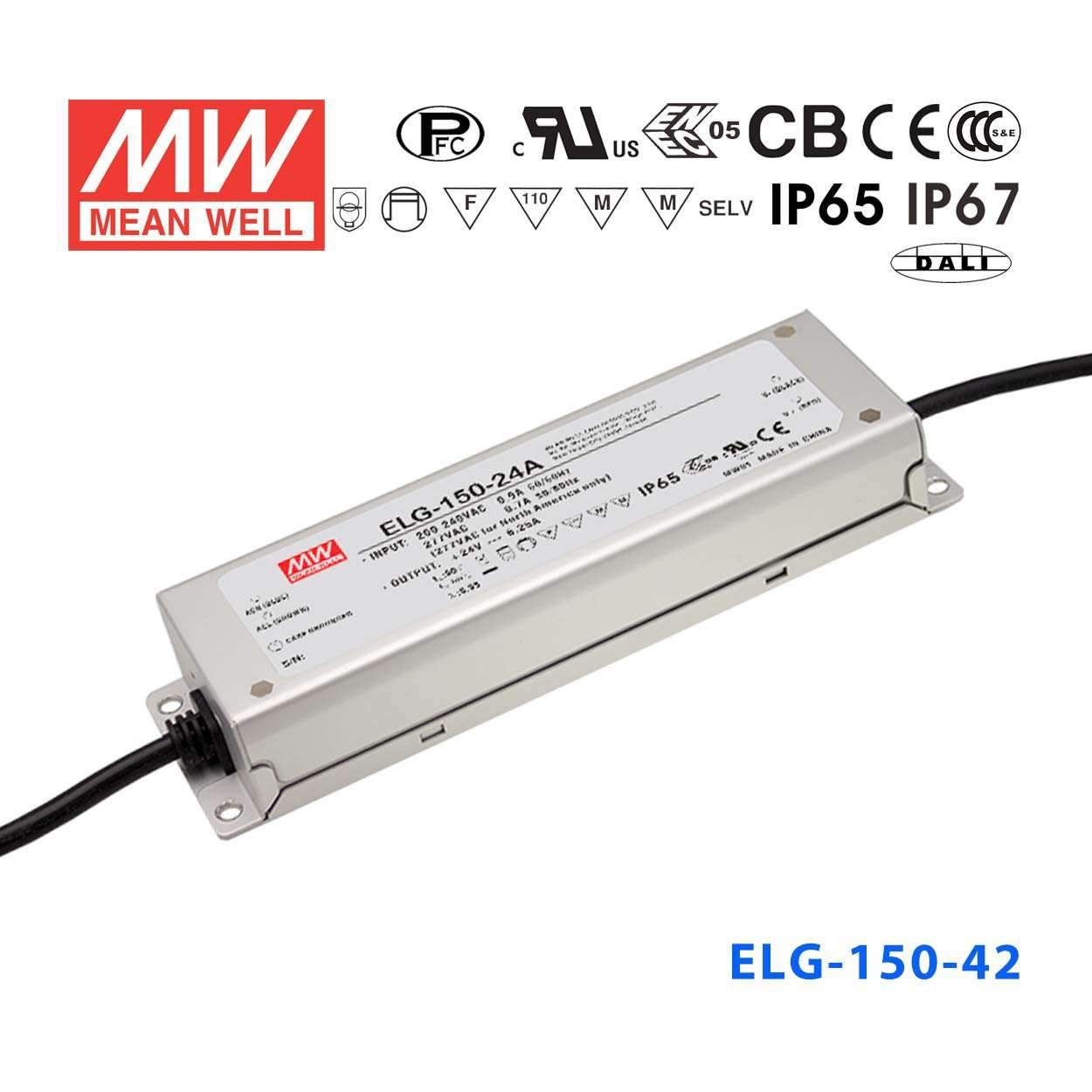

Mean Well ELG-150-42 Power Supply | Reliable 150W 42V LED Driver

The ELG-150 is a 150W Mean Well power converter.

Key Features

✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

Can I use the ELG-150-42 to power 42V LED strips in an outdoor sign cabinet?

Yes. The ELG-150-42 carries an IP67 waterproof rating and supports a -40°C to +90°C operating temperature, making it suitable for outdoor sign cabinets exposed to weather. Its 150W output at 42V can drive a substantial run of 42V LED strip or modules within the cabinet.

How long a run of 42V LED strip can the ELG-150-42 power?

The ELG-150-42 delivers 150W at 42V. To estimate maximum strip length, divide 150W by your strip's watt-per-meter rating. For a 10 W/m strip, that is approximately 15 meters; for a 14.4 W/m strip, approximately 10.4 meters. Always verify your strip's specific power per meter and limit continuous load to 80%, giving roughly 12 m and 8.3 m respectively in those examples.

Is the ELG-150-42 suitable for wet-location or rain-exposed LED luminaire applications?

Yes. With an IP67 rating, the ELG-150-42 is dust-tight and protected against temporary water immersion up to 1 meter for 30 minutes. This qualifies it for wet-location luminaires, outdoor wall washers, or facade-mounted fixtures where direct moisture exposure is expected.

Does the ELG-150-42 include dimming capability or output adjustment?

No. The ELG-150-42 base model (no letter suffix) does not include external dimming inputs or a built-in adjustment potentiometer. For external 0–10V dimming, choose the ELG-150-42A or ELG-150-42AB; for built-in trimming only, choose the ELG-150-42B; for DALI dimming, choose the ELG-150-42DA or ELG-150-42D2.

Can the ELG-150-42 drive 42V high-bay LED retrofit modules in industrial facilities?

Yes. The ELG-150-42's wide input range (100–305VAC), 150W constant-current output, and IP67 protection make it a capable driver for 42V high-bay LED retrofit modules in industrial or warehouse environments. The metal case and robust operating temperature range support the thermal demands of high-ambient industrial spaces.

Is the ELG-150-42 appropriate for powering 42V LED strips in a cold-storage or freezer room?

Yes. The ELG-150-42 is rated down to -40°C, which covers the operating temperature of most commercial freezer and cold-storage environments. Its IP67 rating also provides protection against condensation and cleaning moisture typical in food-storage facilities.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	150W	12V	10A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24A-3Y Power Supply 150W 24V - Adjustable 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth)	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24DA-3Y Power Supply 150W 24V - DALI 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B-3Y Power Supply 120W 12V - Dimmable 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
