Mean Well ELG-150-42A Power Supply | 150W 42V - Adjustable | Auckland Distributor

The ELG-150 is a 150W Mean Well power converter.

Key Features

✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

What control interface does the ELG-150-42A support for dimming?

The 'A' suffix on Mean Well ELG series indicates a 3-in-1 analog dimming input: the ELG-150-42A accepts a 0–10V control voltage, a 10V PWM signal, or a variable resistance (10 kΩ potentiometer) to dim the output. This makes it compatible with most standard wall dimmers and building automation 0–10V outputs.

Can I use the ELG-150-42A with a 0–10V wall dimmer for 42V LED strip lighting in a retail space?

Yes. The ELG-150-42A's 0–10V dimming input is directly compatible with standard 0–10V wall dimmers used in commercial retail environments. This allows brightness adjustment of 42V LED strip displays or accent lighting without a separate dimming module.

Is the ELG-150-42A suitable for semi-exposed outdoor LED strip installations?

The ELG-150-42A is rated IP65, meaning it is dust-tight and protected against low-pressure water spray from any direction. This makes it appropriate for semi-sheltered outdoor installations such as covered walkways, canopy soffits, or outdoor-rated enclosures where direct rain exposure is avoided.

How much 42V LED strip can the ELG-150-42A power?

The ELG-150-42A outputs 150W at 42V. Divide 150W by your strip's power per meter to find maximum length. For a 10 W/m strip, that is approximately 15 meters; for a 15 W/m strip, approximately 10 meters. Check your specific strip's rated power per meter and limit continuous load to about 80% — roughly 12 m and 8 m respectively in those examples.

Is the ELG-150-42A a good fit for museum or gallery track lighting using 42V LED modules?

Yes. The 0–10V dimming input and 150W capacity make the ELG-150-42A well suited for museum or gallery accent lighting systems where smooth, flicker-free dimming is required. Its IP65 housing also tolerates the humidity-controlled environments common in these spaces.

Can the ELG-150-42A power LED strips in a hospitality or hotel corridor with a building automation 0–10V dimming system?

Yes. Hotel corridors and hospitality spaces often use 0–10V building automation outputs for lighting control, and the ELG-150-42A's 0–10V input connects directly to these systems. The 150W output can drive a long run of 42V LED strip along a corridor without requiring parallel drivers.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	150W	12V	10A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24A-3Y Power Supply 150W 24V - Adjustable 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth)	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24DA-3Y Power Supply 150W 24V - DALI 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B-3Y Power Supply 120W 12V - Dimmable 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View

Please log in to write a review.

{ "id":8422084018475, "variants" :[{ "context":"default", "variant_id": 45628670607659, "sku":"ELG-150-42A", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ DC output voltage adjustable ±10%

✓ 3.75KVAC reinforced I/O isolation

✓ Protections: Short circuit / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67

✓ 3 years warranty

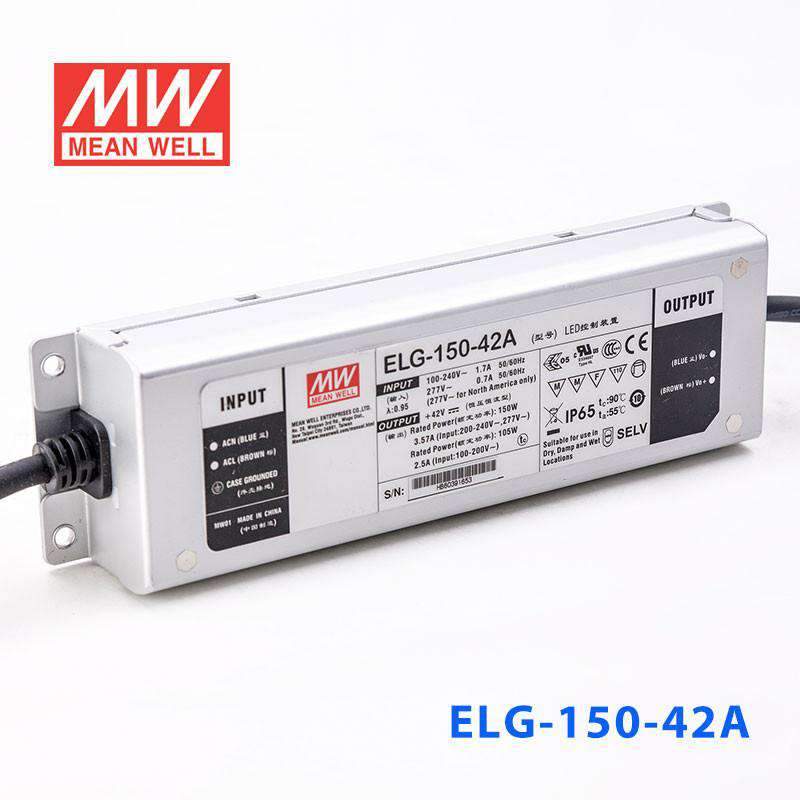

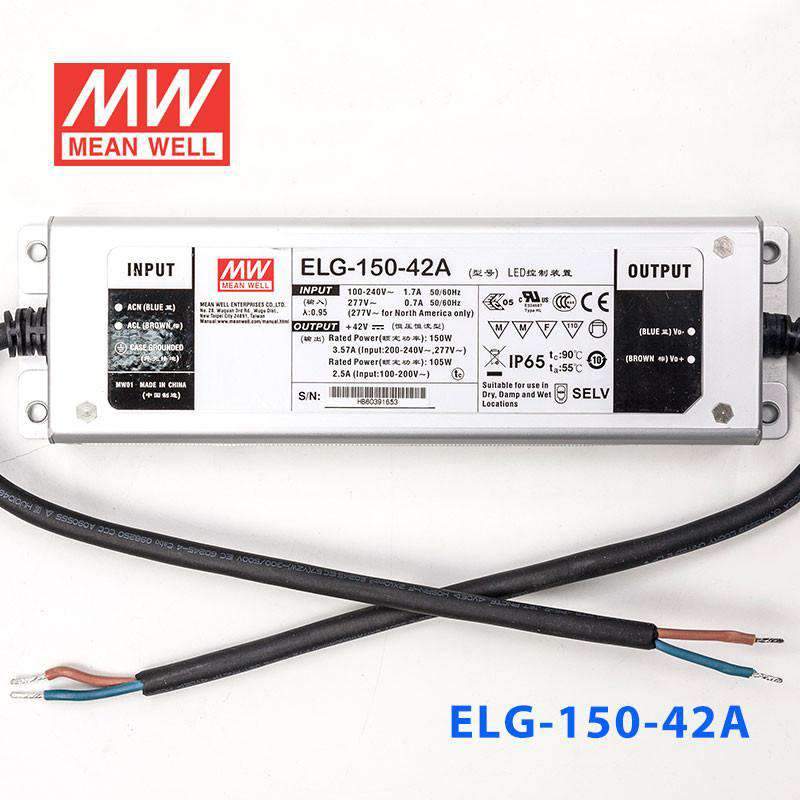

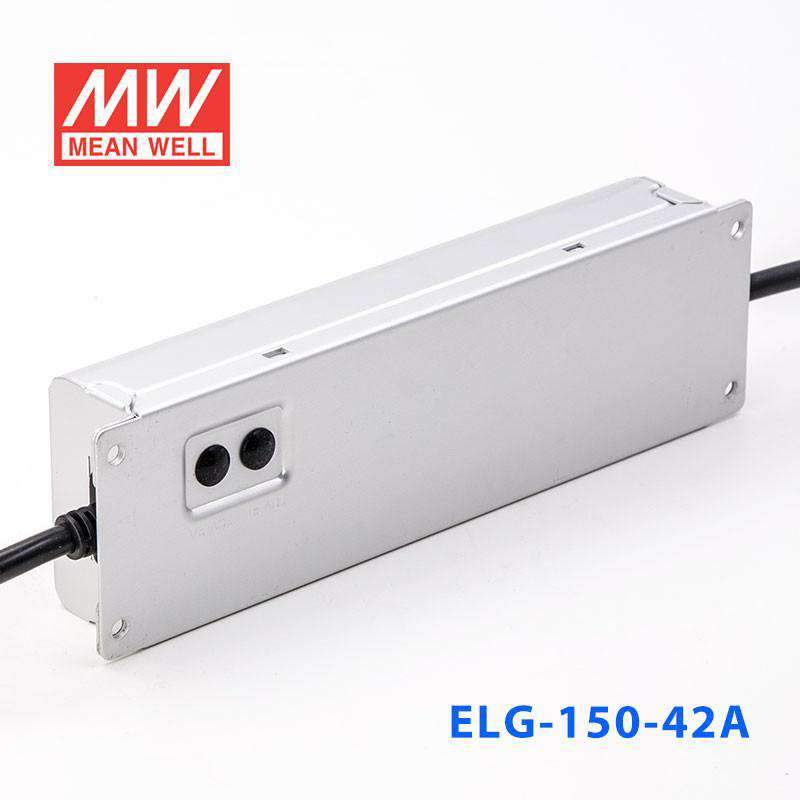

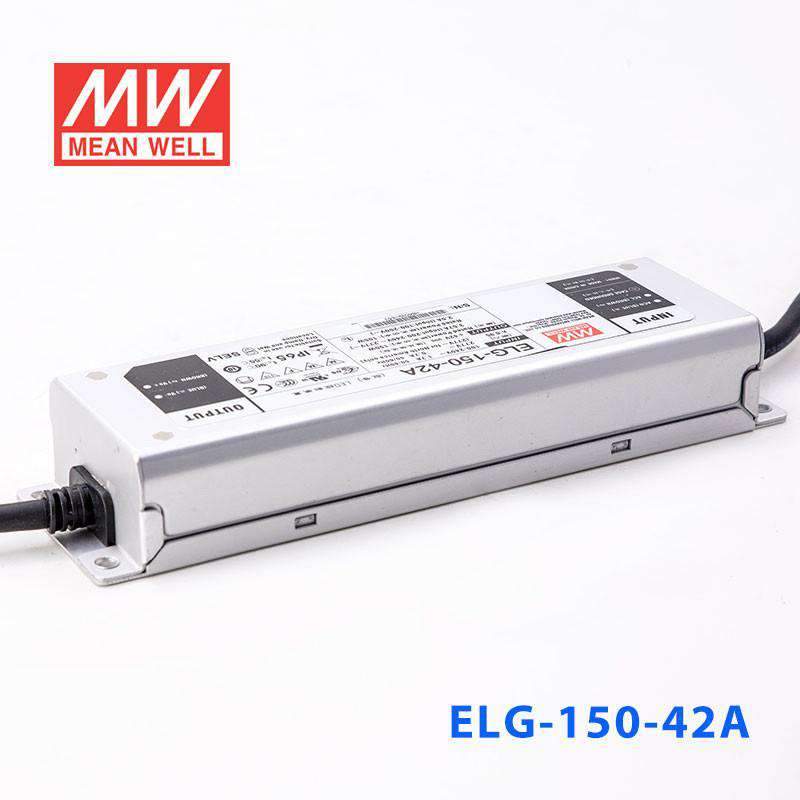

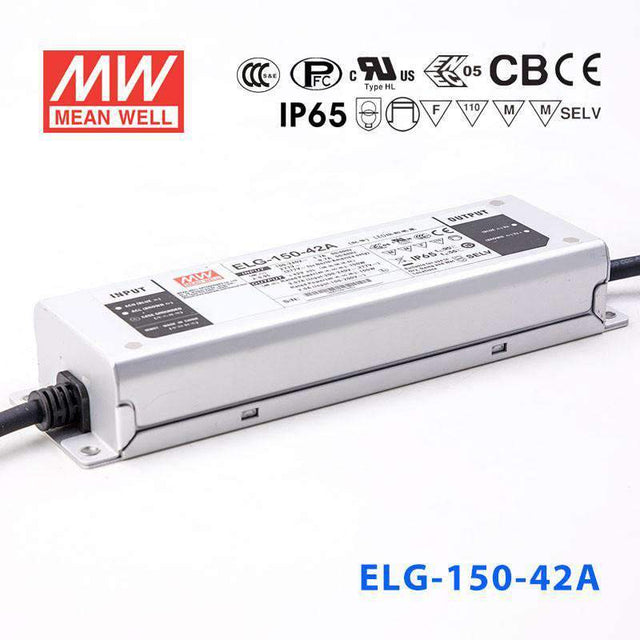

Mean Well ELG-150-42A Power Supply 150W 42V - Adjustable 3.57A
