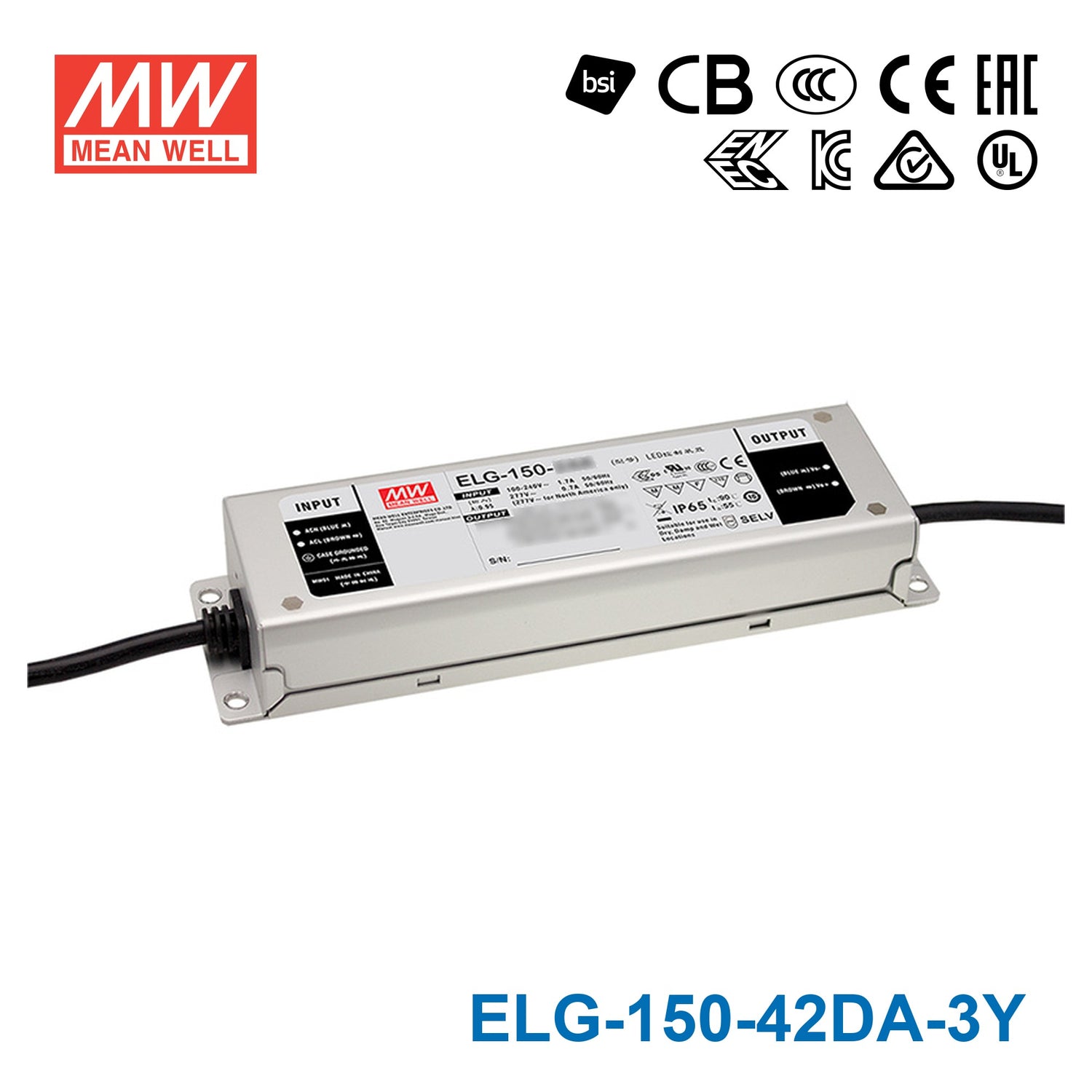

Mean Well ELG-150-42DA-3Y AC-DC Single output LED Driver Mix Mode CV+CC 150W 3.5A

metal caseIP65/IP675 years warranty

SKU:

ELG-150-42DA-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-150-42DA is a 150W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & EMC DALI STANDARDS
✓ 3 years warranty

Frequently Asked Questions

Can the ELG-150-42DA-3Y be used for outdoor LED signage that requires DALI dimming?

Yes. The DA suffix indicates a DALI dimming interface, and the IP67 rating provides full dust protection and resistance to temporary water immersion, making the unit suitable for outdoor illuminated signage. The 150W, 42V output supports substantial LED sign loads.

What does the 3Y suffix mean on the ELG-150-42DA-3Y?

The 3Y designation indicates this variant meets additional certification or compliance requirements for certain regional markets, often associated with extended compliance documentation. The core electrical specs—150W, 42V, 3.5A, IP67, DALI dimming, -40°C to +90°C operating range—remain the same as the standard DA variant.

How much 42V LED strip can the ELG-150-42DA-3Y support?

The ELG-150-42DA-3Y provides up to 150W at 42V with a 3.5A maximum output current. For a strip drawing 12W/m, you can run approximately 12.5 m (150 ÷ 12 ≈ 12.5). Always verify your strip's actual rated power per meter and apply a safety derating of around 80% for sustained loads.

Is the ELG-150-42DA-3Y rated for operation in sub-zero outdoor environments?

Yes. The ELG-150-42DA-3Y operates from -40°C to +90°C. The IP67 enclosure also protects against moisture, so it can be installed in outdoor locations subject to freezing temperatures, provided the mounting location complies with local installation codes.

Can the ELG-150-42DA-3Y be used as a driver for 42V LED modules in commercial downlight fixtures?

Yes. The 150W, 42V constant-current output with DALI dimming makes the ELG-150-42DA-3Y compatible with 42V LED modules used in commercial downlights or troffer retrofits. The DALI interface allows per-zone dimming control within a BMS or lighting control system.

Is the ELG-150-42DA-3Y suitable for powering 42V LED strips in a washdown food-processing facility?

The IP67 rating of the ELG-150-42DA-3Y protects against temporary water immersion, which covers most spray and washdown scenarios. For continuous high-pressure washdowns, verify the specific pressure ratings against facility cleaning protocols, as IP67 has defined submersion limits rather than high-pressure jet ratings.

How does the ELG-150-42DA-3Y compare to the ELG-150-42DA for a new project?

Both models share identical electrical specifications: 150W output, 42V, DALI dimming, IP67 rating, and -40°C to +90°C operating range. The ELG-150-42DA-3Y carries an output current of 3.5A versus 3.57A for the ELG-150-42DA and may carry different regional certifications. Select based on your project's certification requirements.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24 Power Supply 150W 24V with AU/NZ plug 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 10A	150W	12V	10A	IP67	View
Mean Well ELG-150-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 6.25A	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12 Power Supply 120W 12V with AU/NZ plug 10A	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-48A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 3.13A	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24DA-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B Power Supply 120W 12V 3-wire Input - Dimmable 10A	120W	12V	10A	IP67	View
