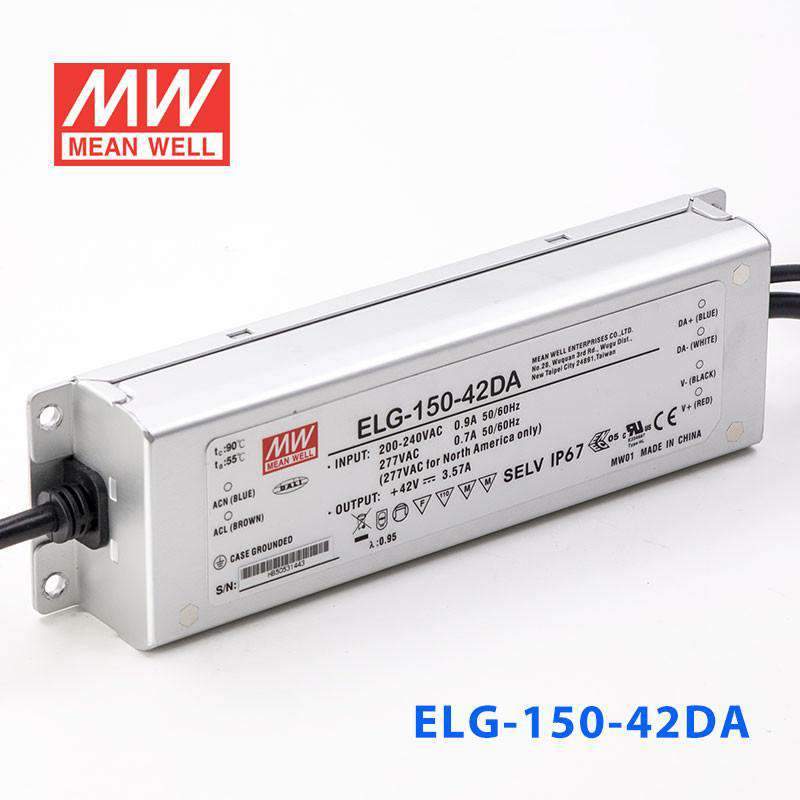

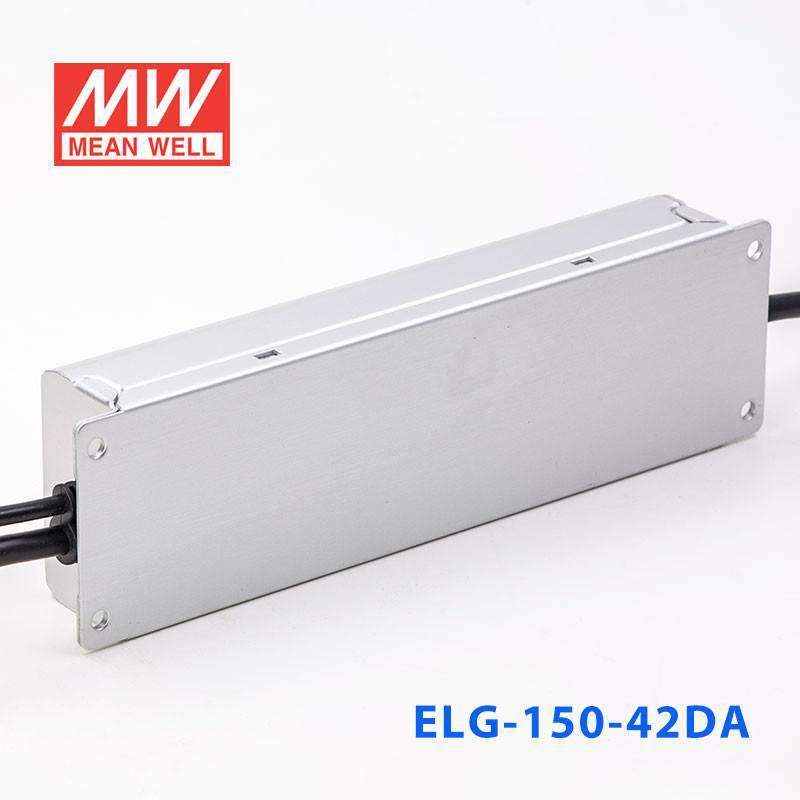

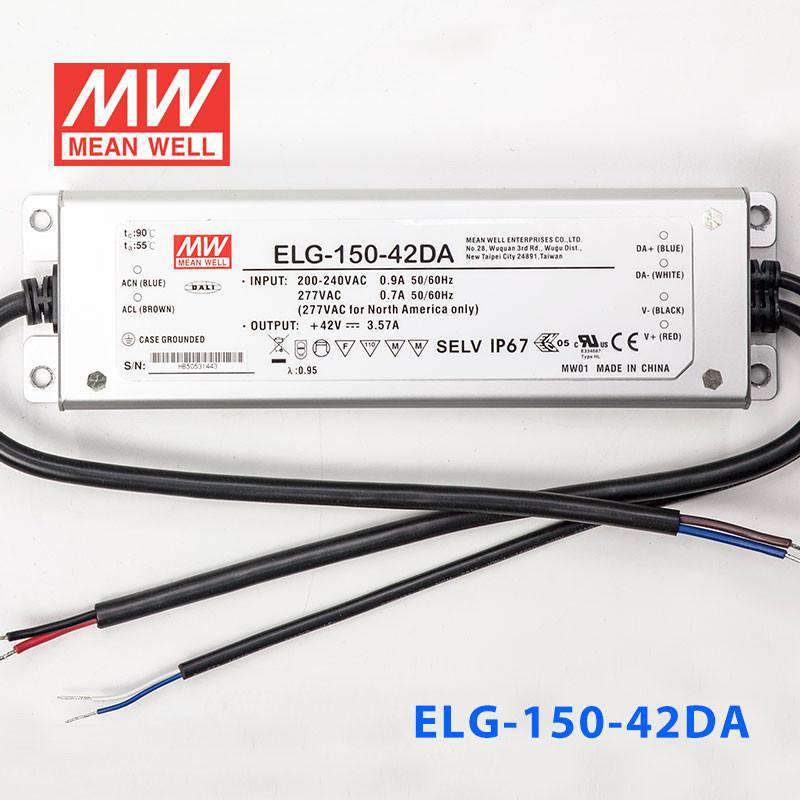

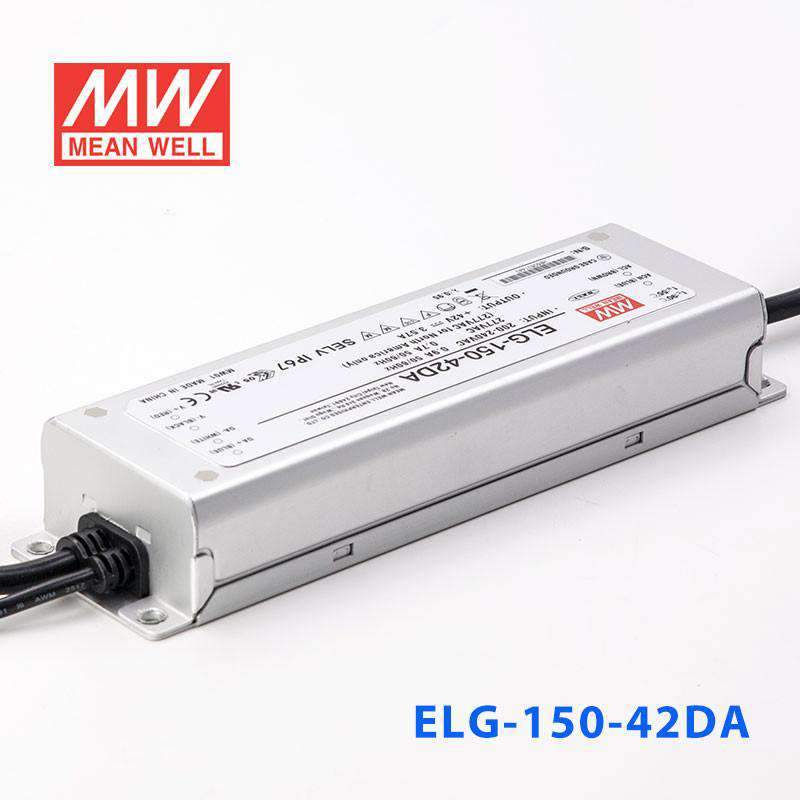

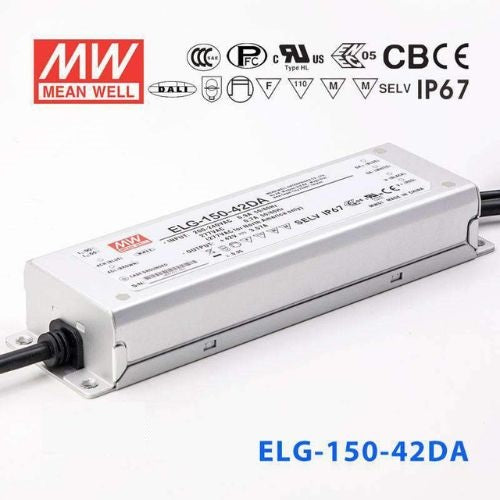

Mean Well ELG-150-42DA 150W 42V Power Supply - DALI | Auckland Distributor

The ELG-150 is a 150W Mean Well power converter.

Key Features

✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

Can the ELG-150-42DA be used in a DALI-controlled architectural lighting system?

Yes. The DA suffix indicates this unit includes a DALI (Digital Addressable Lighting Interface) dimming input, allowing it to be addressed and dimmed individually within a DALI bus network. At 150W and 42V, it suits commercial or architectural luminaires that require centralized digital dimming control.

Is the ELG-150-42DA appropriate for outdoor LED signage that requires smart building integration?

Yes. The IP67 rating makes the ELG-150-42DA resistant to dust and temporary water immersion, suitable for outdoor installations. The DALI interface enables integration with building management systems or smart lighting controllers, making it a good fit for connected outdoor signage.

How many meters of 42V LED strip can the ELG-150-42DA power?

The ELG-150-42DA delivers up to 150W at 42V. For a strip rated at 10W/m, that supports approximately 15 m (150 ÷ 10 = 15); for a 20W/m strip, about 7.5 m (150 ÷ 20 = 7.5). Always check the actual rated power per meter of your specific strip before finalizing the design.

Can the ELG-150-42DA handle outdoor installations in humid or rainy climates?

Yes. The ELG-150-42DA carries an IP67 rating, providing complete dust protection and protection against temporary water immersion up to 1 m. This makes it suitable for outdoor use in humid, tropical, or rainy environments when properly mounted.

What distinguishes the ELG-150-42DA from the ELG-150-42D2 in terms of dimming?

The ELG-150-42DA uses DALI (IEC 62386) protocol dimming, which is a two-wire digital bus supporting individual addressing and broadcast commands in a lighting network. The ELG-150-42D2 uses a 3-in-1 analogue interface (0–10V, PWM, resistance). Both share the same 150W, 42V, 3.57A output and IP67 rating; the choice depends on whether the project uses DALI or analogue dimming infrastructure.

Can the ELG-150-42DA power LED modules in horticultural grow-light fixtures?

The ELG-150-42DA outputs 42V at up to 3.57A (150W), which is compatible with many 42V-rated horticulture LED modules. The DALI dimming interface also allows photoperiod and intensity control via a compatible DALI controller. Confirm that your LED modules are rated for 42V CC operation.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	150W	12V	10A	IP67	View
Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24A-3Y Power Supply 150W 24V - Adjustable 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP65	View
Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A	150.2W	48V	3.13A	IP67	View
Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth)	150W	48V	3.13A	IP65	View
Mean Well ELG-150-24DA-3Y Power Supply 150W 24V - DALI 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth)	150W	24V	6.25A	IP67	View
Mean Well ELG-150-12B-3Y Power Supply 120W 12V - Dimmable 10A — 3-Wire Input (with Earth)	120W	12V	10A	IP67	View
