Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

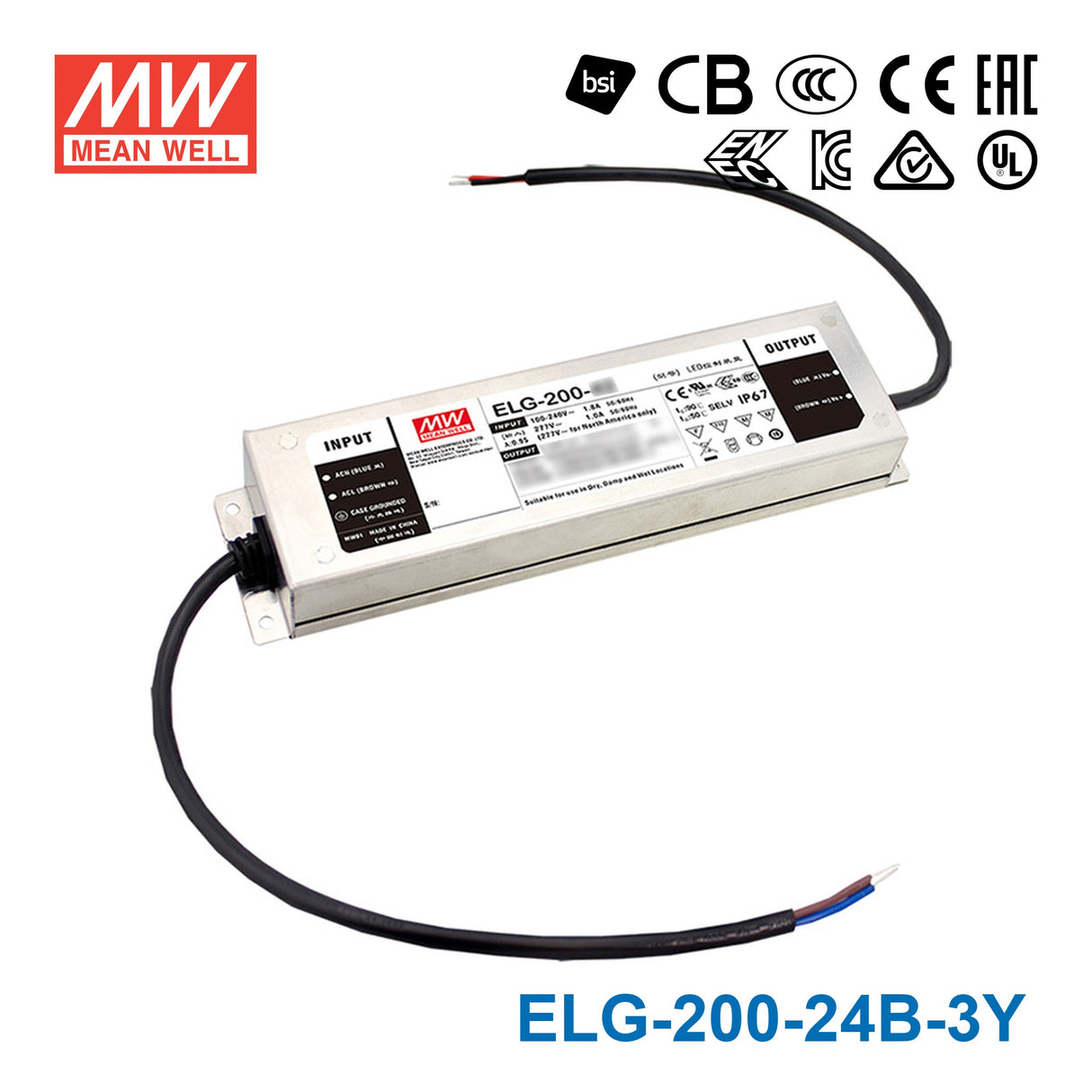

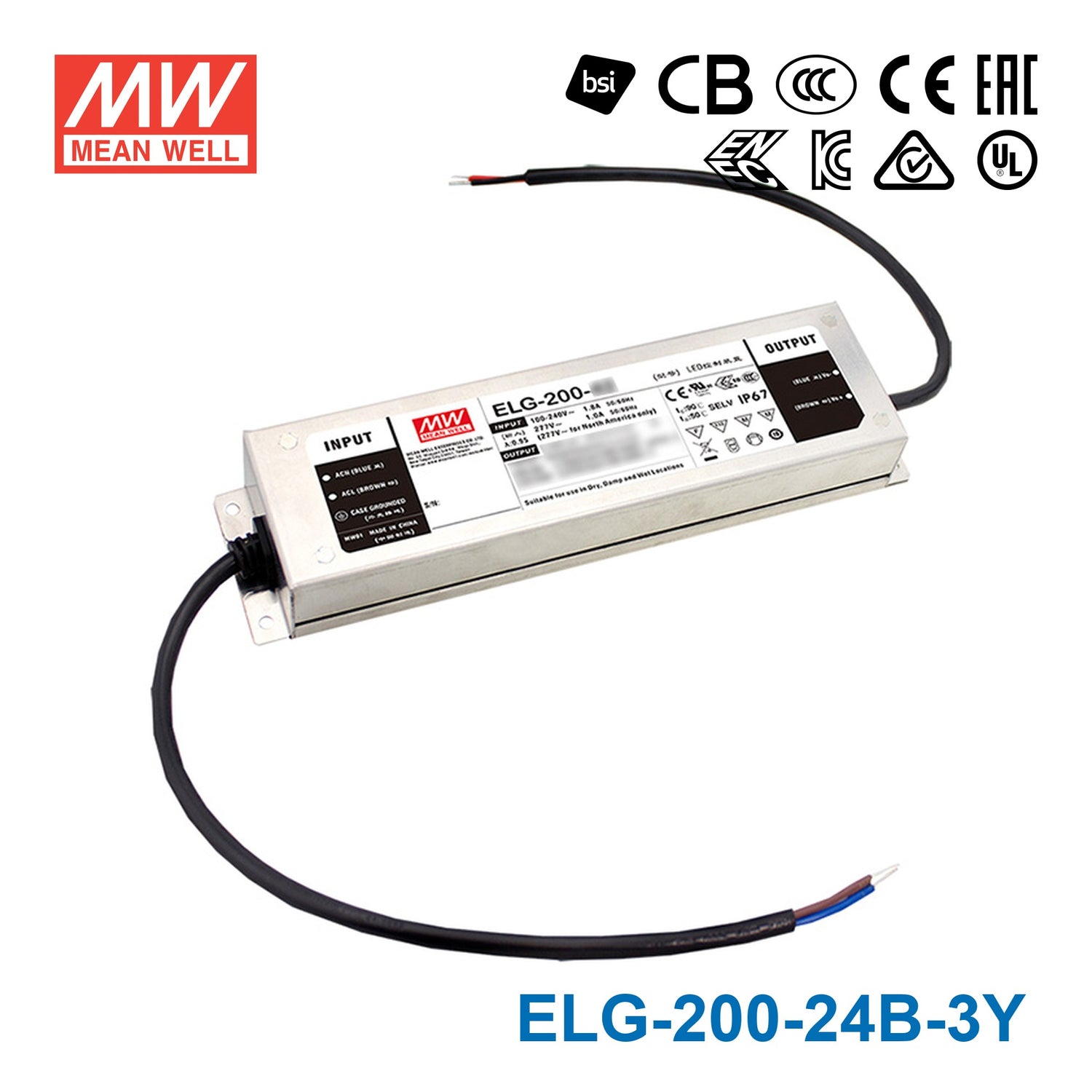

Mean Well ELG-200-24B-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A

metal caseIP65/IP675 years warranty

SKU:

ELG-200-24B-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-200-24B is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12; EAC TP TC 004;BISIS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13
✓ 3 years warranty

Frequently Asked Questions

Can the ELG-200-24B-3Y power dimmable 24V LED strip lighting in an outdoor environment?

Yes. The ELG-200-24B-3Y has IP67 waterproof construction, a 200W output at 24V, and PWM/resistance dimming support, making it suitable for dimmable outdoor LED strip installations such as building facade lighting or landscape feature lighting.

How many meters of 24V LED strip can the ELG-200-24B-3Y drive?

With 200W at 24V, divide by your strip's rated wattage per meter — a 14.4 W/m strip allows about 13.9 meters, and a 9.6 W/m strip allows roughly 20.8 meters. Confirm the rated power per meter of your specific product before sizing.

Is the ELG-200-24B-3Y appropriate for direct outdoor mounting in rain-exposed locations?

The IP67 rating means the ELG-200-24B-3Y is fully dust-tight and can withstand temporary immersion in water up to 1 meter deep, so it can be mounted in rain-exposed outdoor locations including open-air sign structures and exterior fixture enclosures.

What certifications does the ELG-200-24B-3Y carry?

The ELG-200-24B-3Y holds BSMI, CB, CE, EAC, and UL certifications, covering Taiwan (BSMI), global CB scheme, Europe (CE), the Eurasian Economic Union (EAC), and North America (UL).

Can the ELG-200-24B-3Y be used for 24V LED canopy lighting in a petrol station or car park?

Yes. Its IP67 waterproof rating and -40°C to +90°C operating range make it a strong match for covered outdoor canopy installations at petrol stations or car parks, where humidity, temperature swings, and occasional water exposure are common. The PWM dimming support also enables light level adjustment.

Does the ELG-200-24B-3Y work on both 120V and 240V mains supplies?

Yes. The ELG-200-24B-3Y accepts 100–305VAC input, covering 120V North American and 240V European mains as well as 277V US commercial circuits, without any manual voltage switching.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well ELG-200-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP65	View
Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP67	View
Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 16A	200W	12V	16A	IP67	View
Mean Well ELG-200-48A-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W 4.16A	200W	48V	4.16A	IP65	View
Mean Well ELG-200-48-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 4.16A	200W	48V	4.16A	IP67	View
Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable 16A	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP65	View
