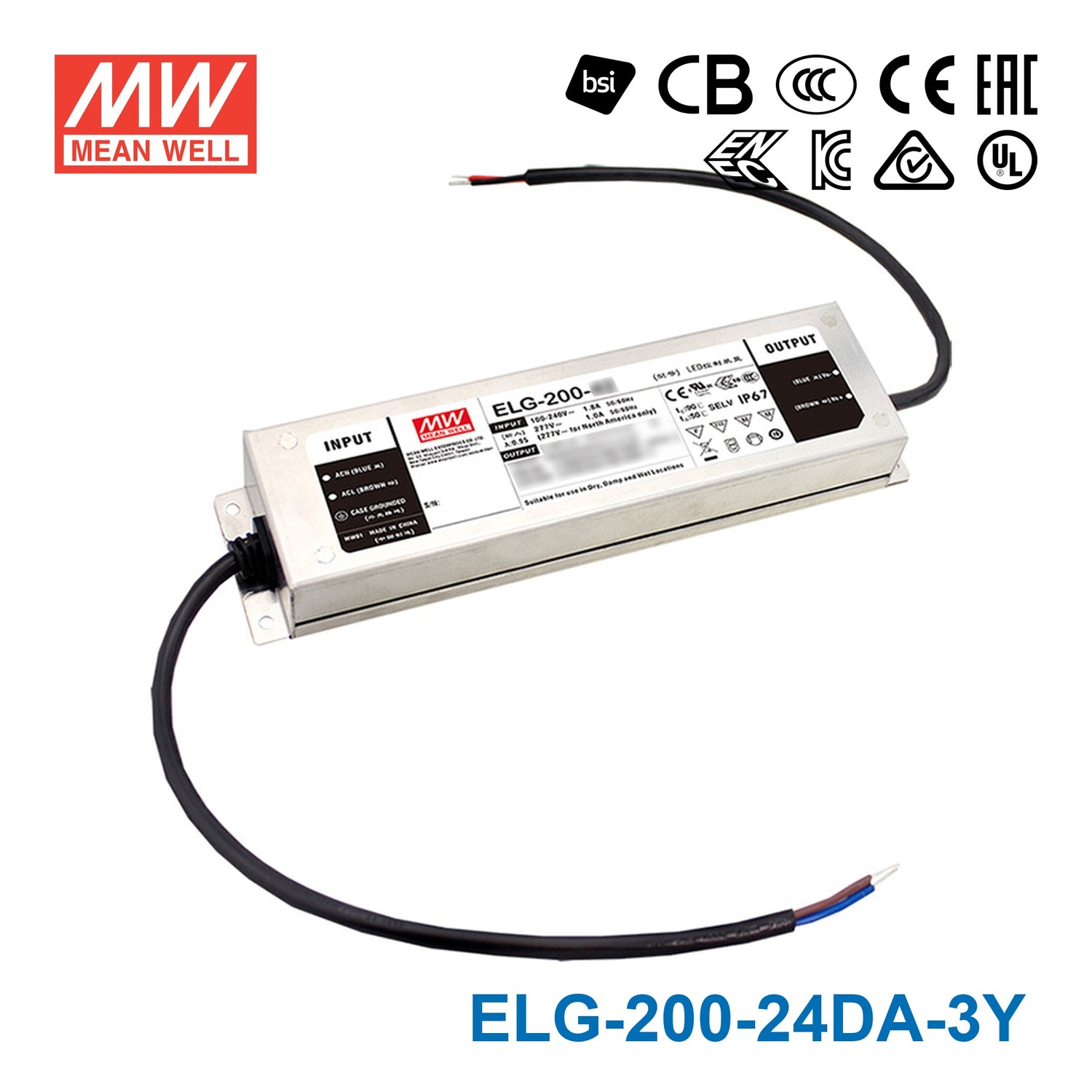

Mean Well ELG-200-24DA-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A

metal caseIP65/IP675 years warranty

SKU:

ELG-200-24DA-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-200-24DA is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12; EAC TP TC 004;BISIS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13
✓ 3 years warranty

Frequently Asked Questions

Can the ELG-200-24DA-3Y be used in a DALI-controlled smart lighting installation for 24V LED strips?

Yes. The ELG-200-24DA-3Y includes DALI protocol dimming support, allowing it to be integrated into DALI-based building automation systems for addressable brightness control of 24V LED strips or LED panels.

How many meters of 24V LED strip can the ELG-200-24DA-3Y support?

The ELG-200-24DA-3Y provides 200W at 24V. Divide 200W by your strip's rated wattage per meter — for a 14.4 W/m strip, approximately 13.9 meters; for a 9.6 W/m strip, roughly 20.8 meters. Always check the rated power per meter on your specific strip before finalising.

Is the ELG-200-24DA-3Y suitable for outdoor LED lighting controlled by a DALI network?

Yes. Its IP67 waterproof rating protects against full dust ingress and temporary water immersion, and the -40°C to +90°C operating range covers harsh outdoor climates. It is appropriate for outdoor architectural LED lighting projects that use DALI for remote dimming control.

Can the ELG-200-24DA-3Y power 24V LED strips in a hospitality or hotel lobby with scene-based lighting control?

Yes. DALI dimming enables scene-based lighting programmes, and the 200W output at 24V supports substantial LED strip loads for cove lighting, accent strips, and feature lighting in hotel lobbies or restaurant spaces.

What certifications does the ELG-200-24DA-3Y hold?

The ELG-200-24DA-3Y is certified to BSMI (Taiwan), CB (international), CE (Europe), EAC (Eurasian Economic Union), and UL (North America), making it compliant for use across major markets.

Does the ELG-200-24DA-3Y work on worldwide mains voltages including 277V?

Yes. The ELG-200-24DA-3Y accepts 100–305VAC input, covering 100–120V (Japan, North America), 200–240V (Europe, Australia), and 277V (US commercial) mains without any manual switching.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well ELG-200-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP65	View
Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP67	View
Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 16A	200W	12V	16A	IP67	View
Mean Well ELG-200-48A-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W 4.16A	200W	48V	4.16A	IP65	View
Mean Well ELG-200-48-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 4.16A	200W	48V	4.16A	IP67	View
Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable 16A	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP65	View
