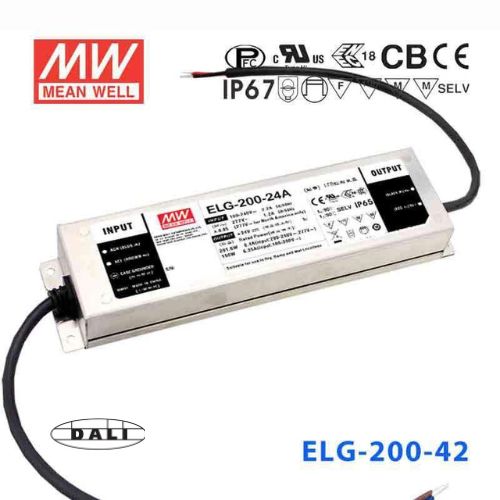

Mean Well ELG-200-42DA Power Supply 200W 42V - DALI | Auckland Distributor

Overview

ELG-200-42DA is the 42V output model of this series: rated current 4.76A, typical efficiency 92.5%. Type DA: DALI control technology (IP67).

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-42DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.2: 21 ~ 42V
RATED CURRENT: 4.76A
RATED POWER 200VAC ~ 305VAC: 199.9W
RATED POWER 100VAC ~ 180VAC: 149.94W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92.5%
AC CURRENT: 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION^Note.7: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 47 ~ 54V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +90℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB/T19510.1,GB/T19510.213; IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ;BS EN/ EN61000-3-3;GB/T 17743,GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5mm (L*W*H)
PACKING: 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA (this model): DALI control technology; IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. No load/standby power consumption is specified for 230VAC input.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B).
14. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-200-42DA Block Diagram — Block Diagram

ELG-200-42DA OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

ELG-200-42DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-42DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-42DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-42DA E L G - 2 0 0 series — E L G - 2 0 0 series

ELG-200-42DA ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

ELG-200-42DA Dimensions (mm) — Dimensions (mm)

ELG-200-42DA ※ B/DA-Type (for 12V model) — ※ B/DA-Type (for 12V model)

ELG-200-42DA ※ B/DA-Type (for other models) — ※ B/DA-Type (for other models)

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-42DA datasheetELG-200-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-200)(EN) PDF Download

UL Certificate (ELG-200)(EN) PDF Download

EMC Certificate (ELG-200)(EN) PDF Download

ENEC Certificate (ELG-200)(EN) PDF Download

Test reports1

Test Report (ELG-200-42)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-42DA be integrated into a DALI building automation system?

Yes. The 'DA' suffix indicates a native DALI (Digital Addressable Lighting Interface) input, allowing the driver to receive individual dimming and on/off commands over a two-wire DALI bus. This is the standard protocol for intelligent lighting control in commercial office, retail, and institutional building automation systems.

Is the ELG-200-42DA suitable for outdoor architectural LED lighting with DALI control?

Yes. The IP67 waterproof rating protects against temporary immersion, and the -40°C to +90°C case temperature range covers outdoor conditions in most climates. Combined with the DALI interface, it enables individually addressed dimming of outdoor façade or landscape LED zones from a building management system.

How much 42V LED strip load can the ELG-200-42DA handle?

The driver outputs 199.9W at 42V. For a 10W/m strip, that supports up to roughly 19.9 m (199.9 ÷ 10); for a 15W/m strip, approximately 13.3 m (199.9 ÷ 15). Apply a 20% derating for thermal safety, reducing those practical limits to about 16 m and 10.6 m respectively. Check your strip's rated power per meter for an accurate calculation.

Can I use the ELG-200-42DA to control zone brightness individually in a large office lighting installation?

Yes. DALI allows up to 64 individually addressable devices on a single bus, so multiple ELG-200-42DA units can be assigned separate DALI addresses and dimmed independently. This is ideal for open-plan offices where different zones require different illumination levels under a single controller.

Is the ELG-200-42DA appropriate for powering LED strips in a hotel corridor or public space with automated lighting scenes?

Yes. DALI's scene and group recall functions make the ELG-200-42DA well-suited for hospitality and public space lighting where preset scenes—such as day, evening, and night modes—are managed by a central controller. The 199.9W, 42V output supports substantial LED strip lengths in corridor or cove lighting applications.

Does the ELG-200-42DA carry the certifications needed for EU and North American commercial lighting projects?

Yes. The sheet lists IEC/EN 61347-1, 61347-2-13 and EN62384 safety with EN55015, EN61000-3-2 Class C and EN61547 EMC compliance for the EU, and UL8750 (Type HL) and CSA C22.2 No. 250.13-12 for the US and Canada, plus DALI compliance to IEC62386-101 and 102, making it suitable for multinational commercial projects.
