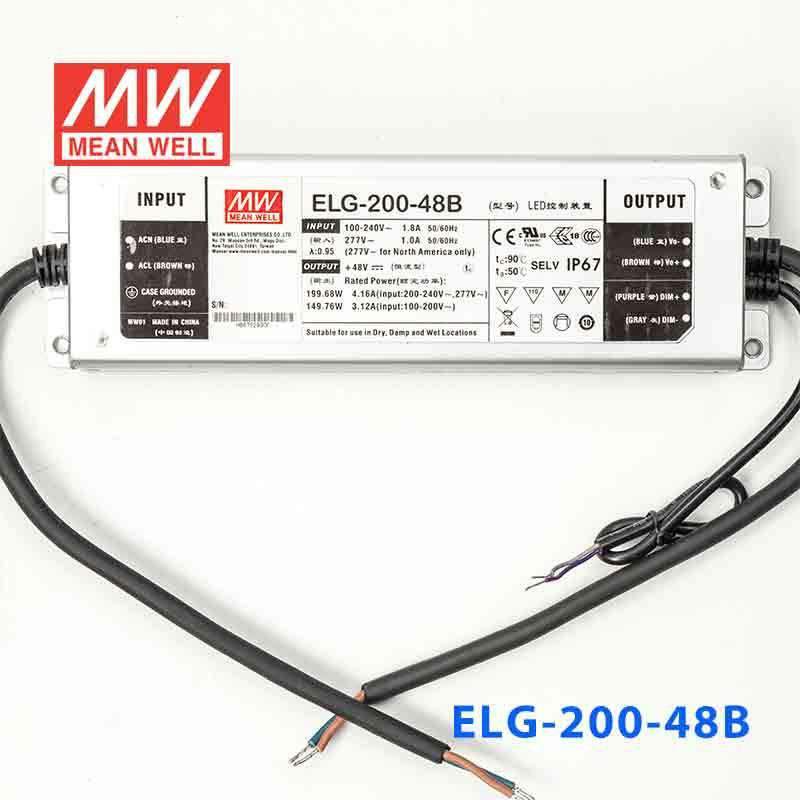

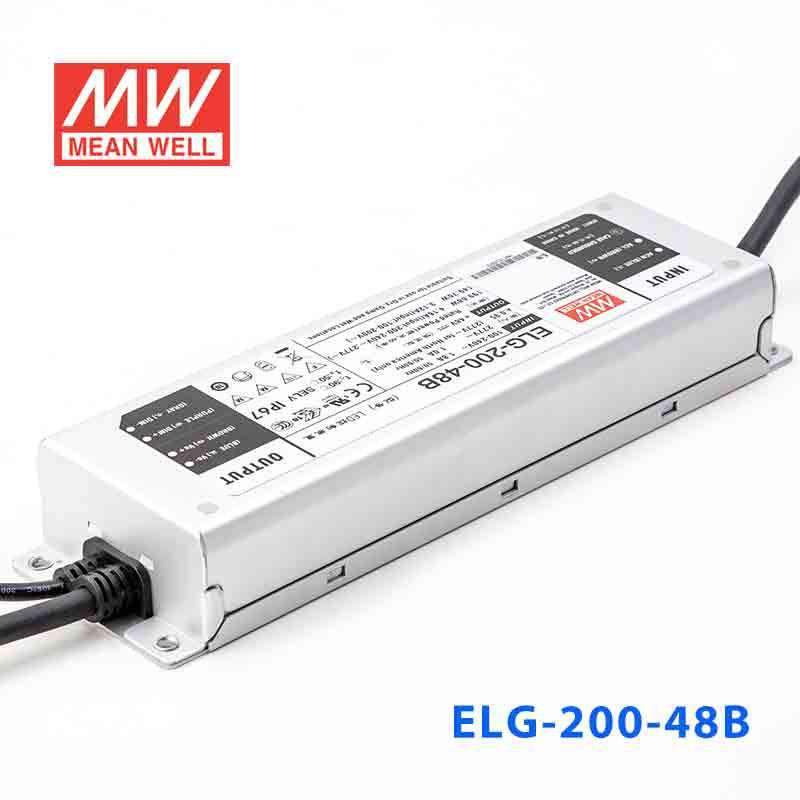

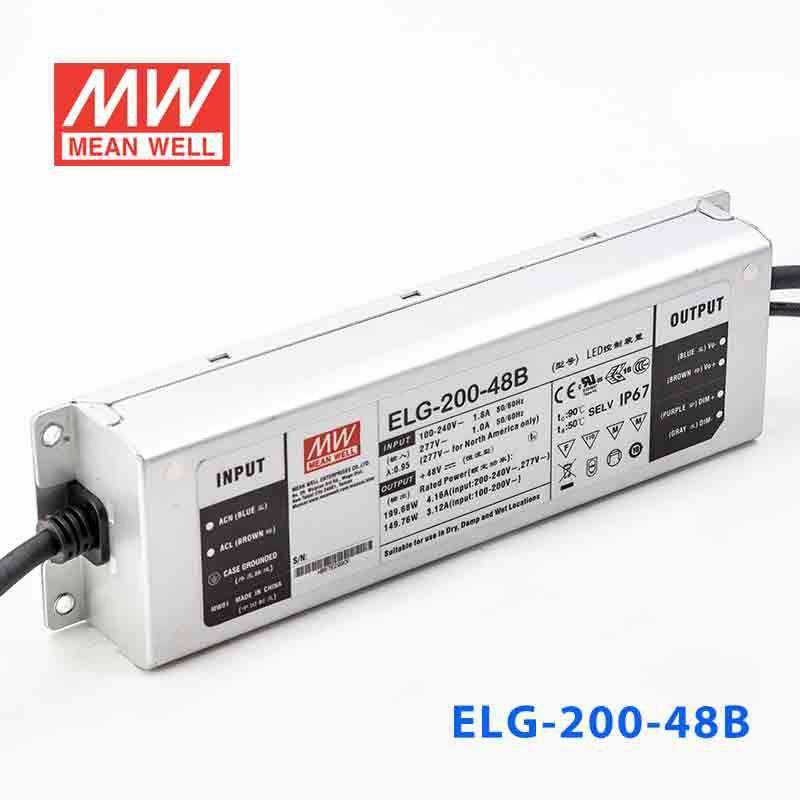

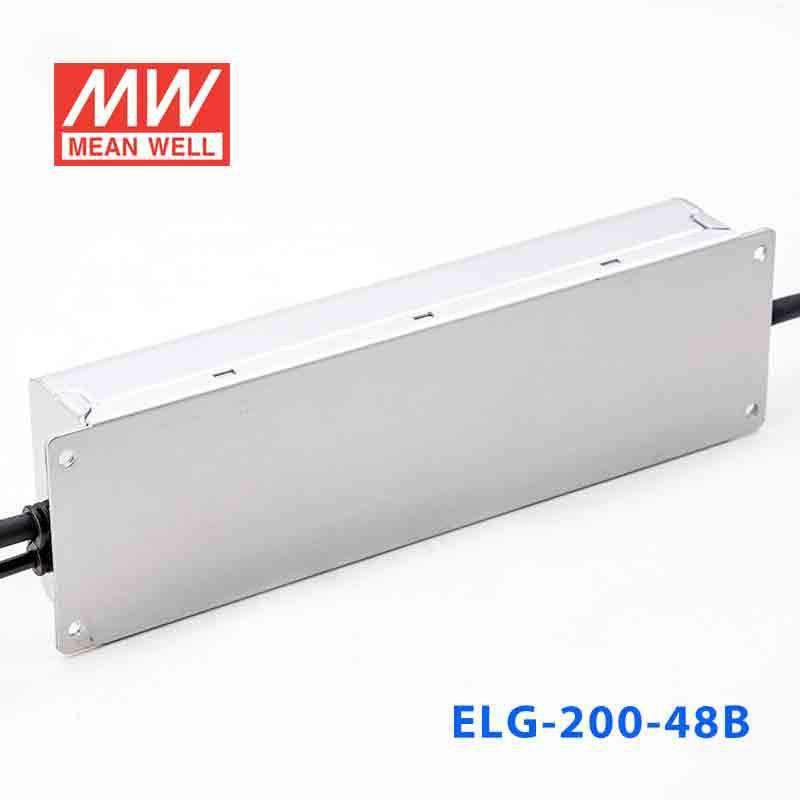

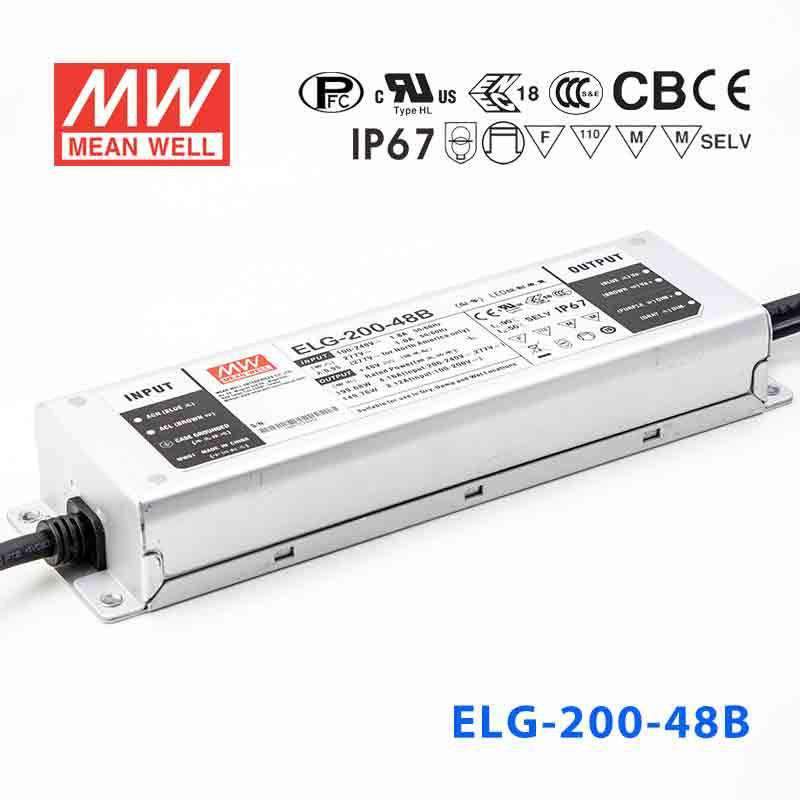

Name: Mean Well ELG-200-48B Power Supply 200W 48V - Dimmable 4.16A
Brand: Mean Well
SKU: ELG-200-48B
Price: 153.07 NZD
Availability: InStock

☎ 0800 88 87 86 | +64 22 522 4414

Apply Wholesale and Trade Account Contact us

ELG-200-48B is the 48V output model of this series: rated current 4.16A, typical efficiency 93%.

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40 ℃ ~ +90 ℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DAL I
Typical lifetime>50000 hours
5 years warranty

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting

Brand

Mean Well
Series

ELG Series
Power Rating

199.68 Watt
Output Voltage

48 Volt
Rated Current

4.16 Ampere
Input Voltage

100V~305V
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL,BIS,GlobalMark,EMC,UKCA
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

24.4 cm
Width

7.1 cm
Height

3.75 cm
Weight

1.22 kg

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24-3Y Power Supply 200W 24V 8.4A — 3-Wire Input (with Earth)	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-24-3Y Power Supply 200W 24V 8.4A — 3-Wire Input (with Earth)	200W	24V	8.4A	IP67	View
Mean Well ELG-200-24A-3Y Power Supply 200W 24V - Adjustable 8.4A — 3-Wire Input (with Earth)	200W	24V	8.4A	IP65	View
Mean Well S-ELG-200-12-3Y Power Supply 192W 12V 16A — 3-Wire Input (with Earth)	192W	12V	16A	IP67	View
Mean Well ELG-200-12-3Y Power Supply 192W 12V 16A — 3-Wire Input (with Earth)	200W	12V	16A	IP67	View
Mean Well ELG-200-48-3Y Power Supply 200W 48V 4.16A — 3-Wire Input (with Earth)	200W	48V	4.16A	IP67	View
Mean Well ELG-200-48A-3Y Power Supply 200W 48V - Adjustable 4.16A — 3-Wire Input (with Earth)	200W	48V	4.16A	IP65	View
Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-12A-3Y Power Supply 192W 12V - Adjustable 16A — 3-Wire Input (with Earth)	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A-3Y Power Supply 200W 24V - Adjustable 8.4A — 3-Wire Input (with Earth)	201.6W	24V	8.4A	IP65	View
