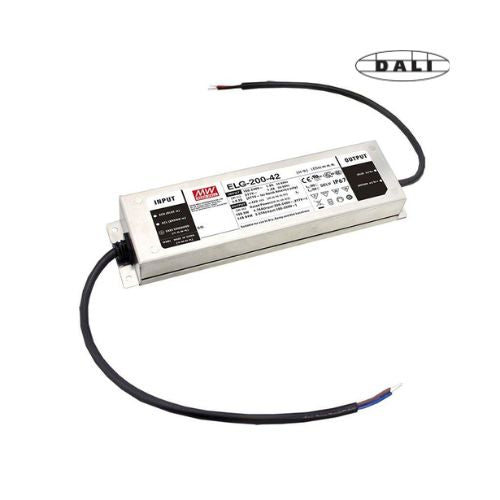

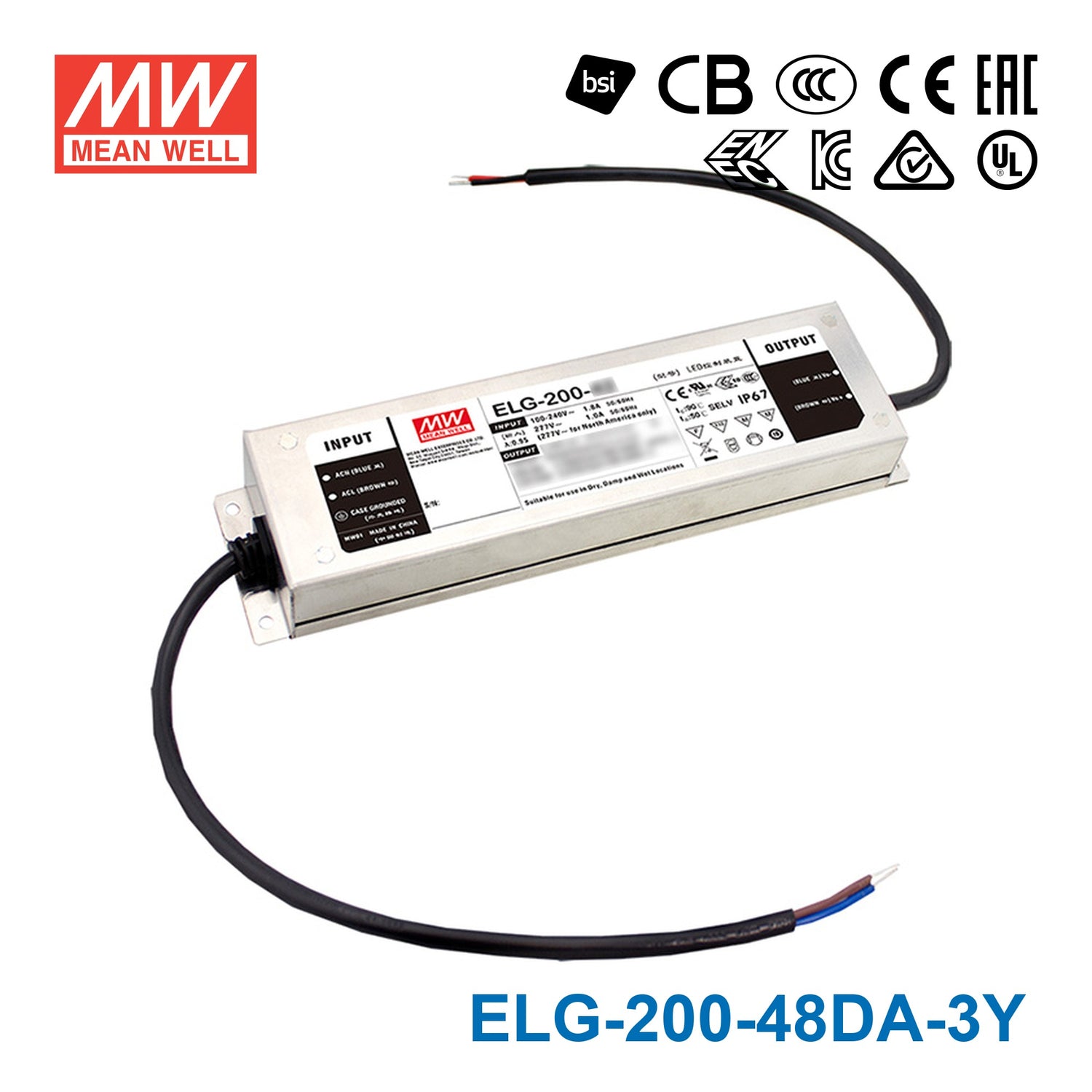

Mean Well ELG-200-48DA-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W 4.16A

metal caseIP65/IP675 years warranty

SKU:

ELG-200-48DA-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-200-48DA is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Frequently Asked Questions

What does the 3Y designation mean on the ELG-200-48DA-3Y?

The 3Y designation indicates this variant meets an extended qualification standard for a longer certified operational life compared to the standard DA model. The driver carries the same 5-year warranty, but the 3Y rating reflects additional longevity and reliability testing performed by Mean Well.

Does the ELG-200-48DA-3Y support DALI dimming?

Yes. Like the ELG-200-48DA, this driver uses a DALI (IEC 62386) digital dimming interface, allowing integration into DALI-based building automation systems for individually addressable scene and schedule control of 48V LED lighting.

Can the ELG-200-48DA-3Y be used in a covered outdoor transit shelter with LED lighting?

Yes. The ELG-200-48DA-3Y is rated IP67 waterproof, providing full dust protection and tolerance for temporary water immersion up to 1 meter for 30 minutes. It is appropriate for transit shelter lighting enclosures and other outdoor structures where the driver is exposed to humidity and rain splash.

How many meters of 48V LED strip can the ELG-200-48DA-3Y power?

The ELG-200-48DA-3Y delivers 200W at 48V and 4.16A. Divide 200W by your strip's wattage per meter to estimate the run length — a 10W/m strip allows up to 20 meters per driver (200 ÷ 10 = 20 m). Always confirm the strip's rated power per meter before finalizing the layout.

Is the ELG-200-48DA-3Y suitable for smart building retrofit projects requiring DALI integration?

Yes. The DALI interface is compatible with DALI control gear used in smart building retrofits, enabling individual addressing, group control, and scene programming without rewiring. The 200W capacity at 48V supports a wide range of commercial LED luminaires and strip systems.

Does the ELG-200-48DA-3Y work on 277V input as found in US commercial buildings?

Yes. The ELG-200-48DA-3Y accepts input voltages from 100VAC to 305VAC, covering 120V, 208V, 240V, and 277V systems used in North American commercial and industrial electrical installations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well ELG-200-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP65	View
Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP67	View
Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 16A	200W	12V	16A	IP67	View
Mean Well ELG-200-48A-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W 4.16A	200W	48V	4.16A	IP65	View
Mean Well ELG-200-48-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 4.16A	200W	48V	4.16A	IP67	View
Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable 16A	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP65	View
