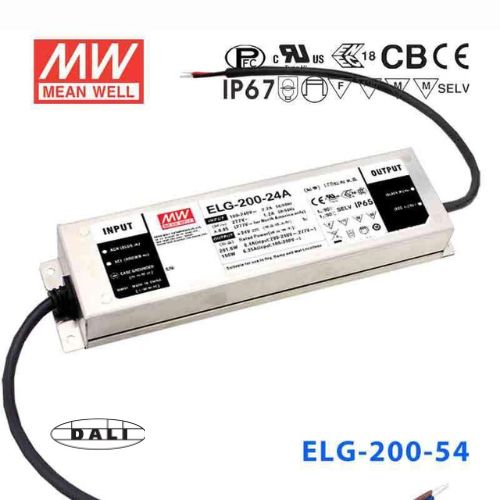

Mean Well ELG-200-54DA 200W 54V DALI Power Supply | Auckland Distributor

The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
✓ 3 years warranty

Frequently Asked Questions

Does the ELG-200-54DA support DALI dimming for smart building integration?

Yes. The 'DA' suffix indicates a native DALI (Digital Addressable Lighting Interface) dimming input, allowing the driver to be individually addressed and controlled over a DALI bus. This makes it suitable for office, retail, or hospitality projects using DALI-based building management systems.

Can the ELG-200-54DA drive outdoor LED architectural lighting?

Yes. The driver carries an IP67 waterproof rating and operates from -40°C to +90°C, making it appropriate for outdoor architectural wash fixtures, facade lighting, or landscape installations where DALI scene control is required. The metal case provides mechanical durability for semi-exposed mounting.

Is the ELG-200-54DA suitable for museum or gallery track lighting with dimming requirements?

Yes. At 54V and 200.88W with DALI control, this driver is well-matched to 54V LED track or pendant fixtures in environments where precise, flicker-free dimming is critical. DALI allows per-driver dimming curves and fade times, which is common in exhibition lighting design.

How many meters of 54V LED strip can the ELG-200-54DA power?

The ELG-200-54DA outputs 200.88W at 54V. For a 54V strip rated at 12W per meter: 200.88W ÷ 12W/m ≈ 16.7m at full load. Apply an 80% continuous-use derating to get approximately 13 meters as a practical maximum. Check your strip's rated power per meter and apply the same calculation.

Can the ELG-200-54DA be used for 54V LED signage in a retail fit-out?

Yes. The driver's 200.88W capacity at 54V covers medium-to-large illuminated signs and lightboxes. DALI control lets store operators adjust brightness across multiple zones from a central controller, which is useful for dynamic merchandising displays.

What certifications does the ELG-200-54DA hold?

The ELG-200-54DA carries c_BSI, CB, CCC, CE, EAC, ENEC, KC, c_RCM, and UL certifications. These cover North American, European, Australian, Chinese, Korean, and Russian market requirements, and the 5-year warranty supports specification in large commercial projects.

How does the ELG-200-54DA differ from the ELG-200-54B and ELG-200-54D2?

All three deliver 200.88W at 54V with 3.72A output and share IP67 waterproof rating. The ELG-200-54B uses three-in-one dimming (1-10V, PWM, resistance); the ELG-200-54D2 uses dual-mode 0-10V and PWM dimming; and the ELG-200-54DA uses the DALI digital protocol. Choose based on the dimming bus your control system requires.
