Can I use the GSM60B07-P1J for 7.5V control electronics or embedded hardware?

Yes, if the equipment requires constant-voltage 7.5V input and stays within 6A output current. The unit is rated at 45W, so it fits higher-current 7.5V devices better than low-power adapters.

Is this model suitable for 7.5V automation accessories in industrial equipment?

It is designed for constant-voltage output at 7.5V and can supply up to 6A. That makes it appropriate for 7.5V accessories or subsystems whose total load remains within 45W.

Can the GSM60B07-P1J be used for bench testing or service fixtures that run on 7.5V?

It can be used for 7.5V bench or service applications where the connected load needs stable constant-voltage power. Its 80-264VAC input range is useful when the fixture may be operated from different AC sources.

How can I tell whether this 7.5V supply is compatible with my equipment?

Check that your equipment is specified for 7.5V constant-voltage operation and draws no more than 6A, with total power not exceeding 45W. If the load needs a different voltage, this is not the correct model.

Is the GSM60B07-P1J rated for outdoor locations or wide temperature swings?

The operating temperature range is -30°C to +70°C, so the temperature specification is broad. No IP rating is provided in the listed specs, so the product data does not confirm outdoor or water-exposed use.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

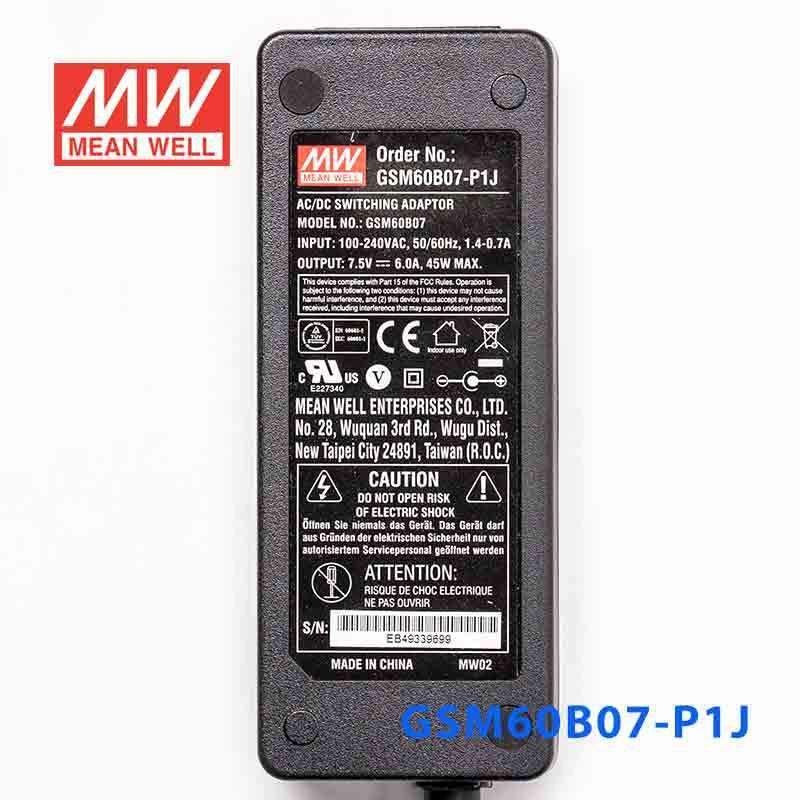

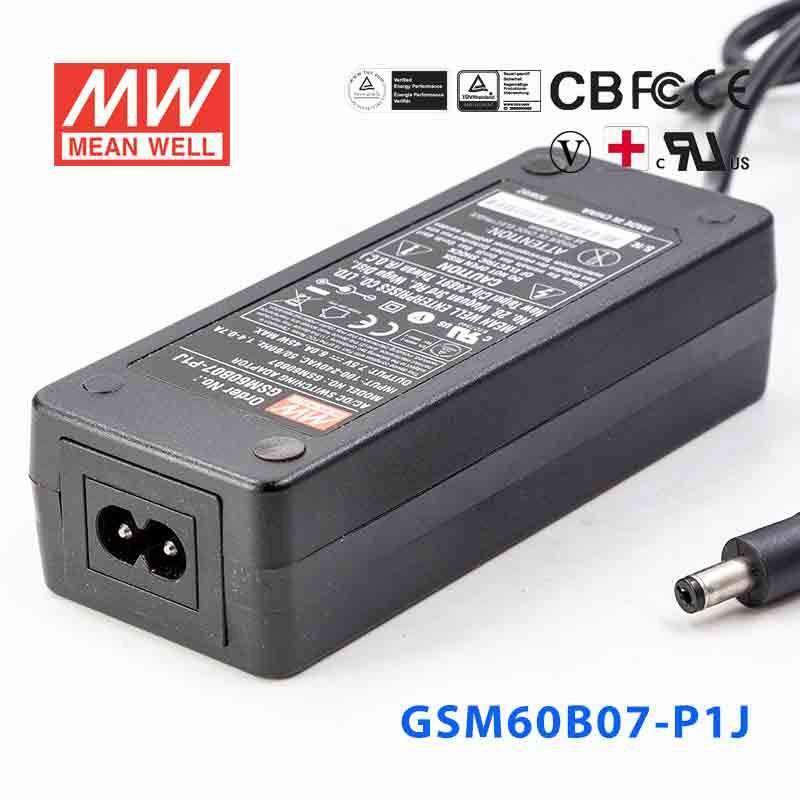

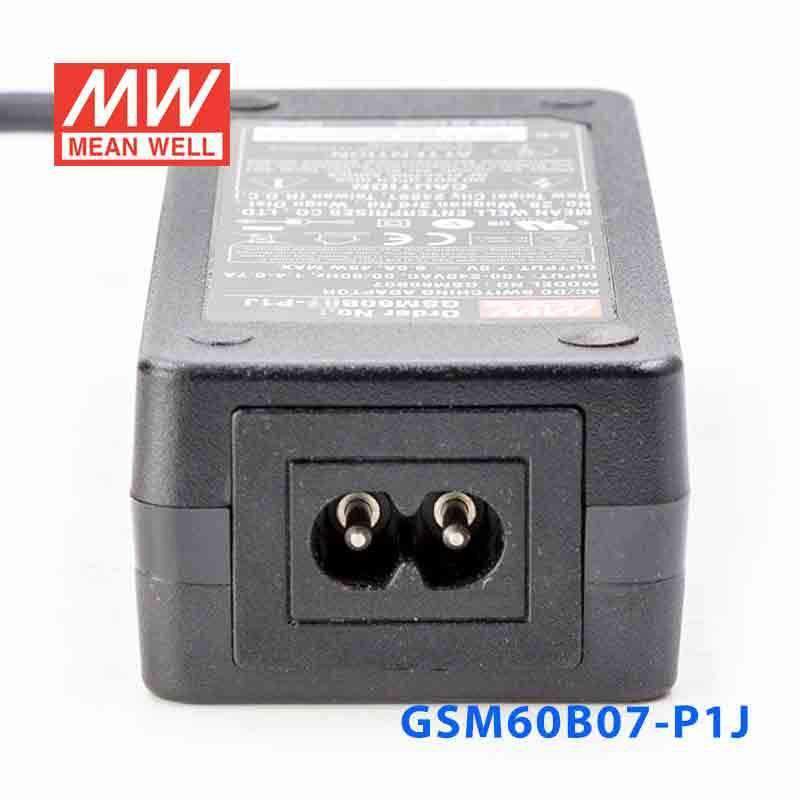

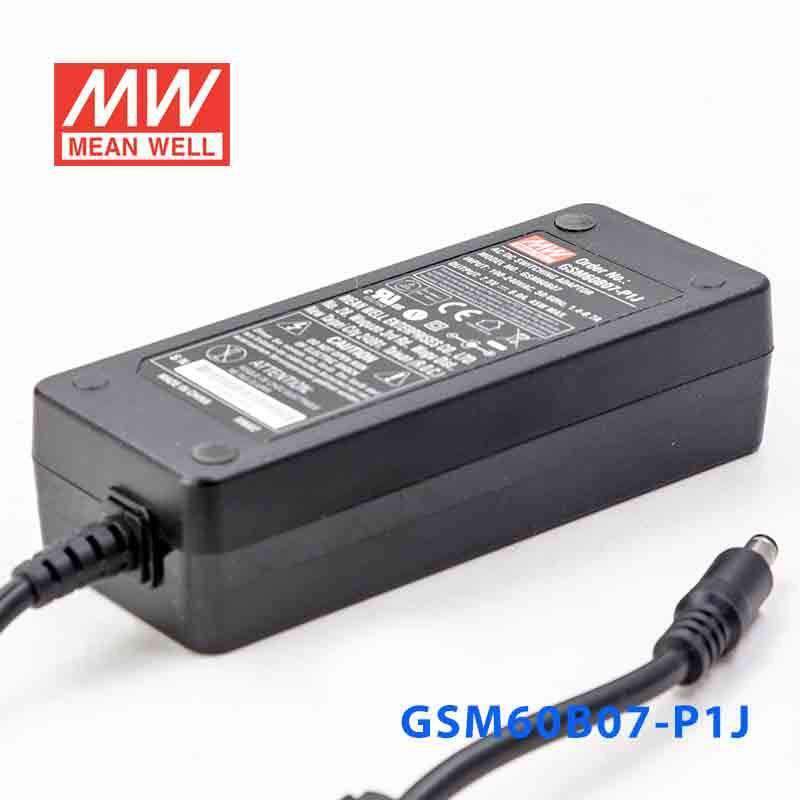

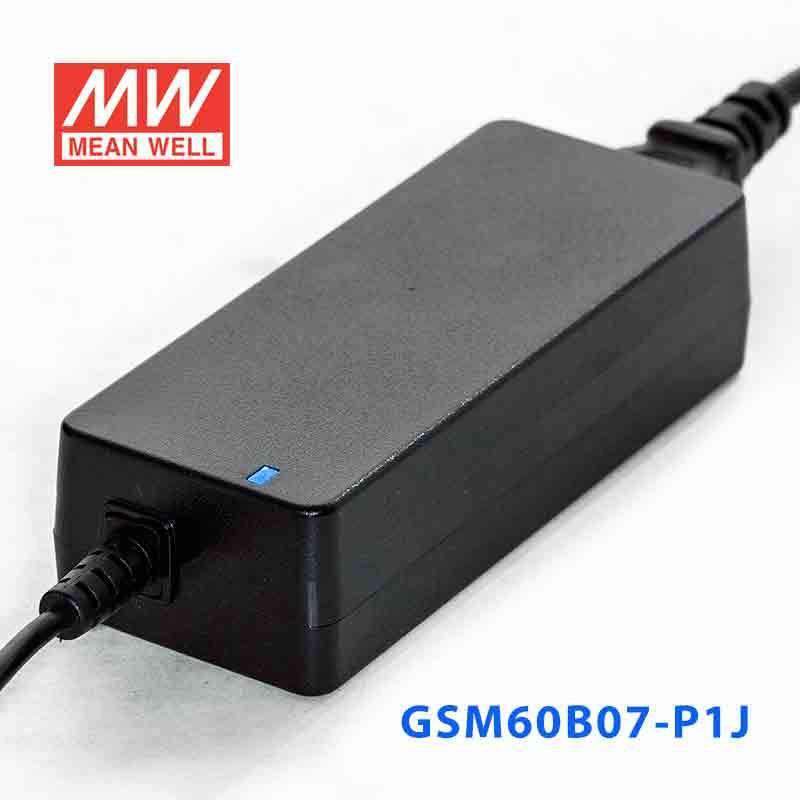

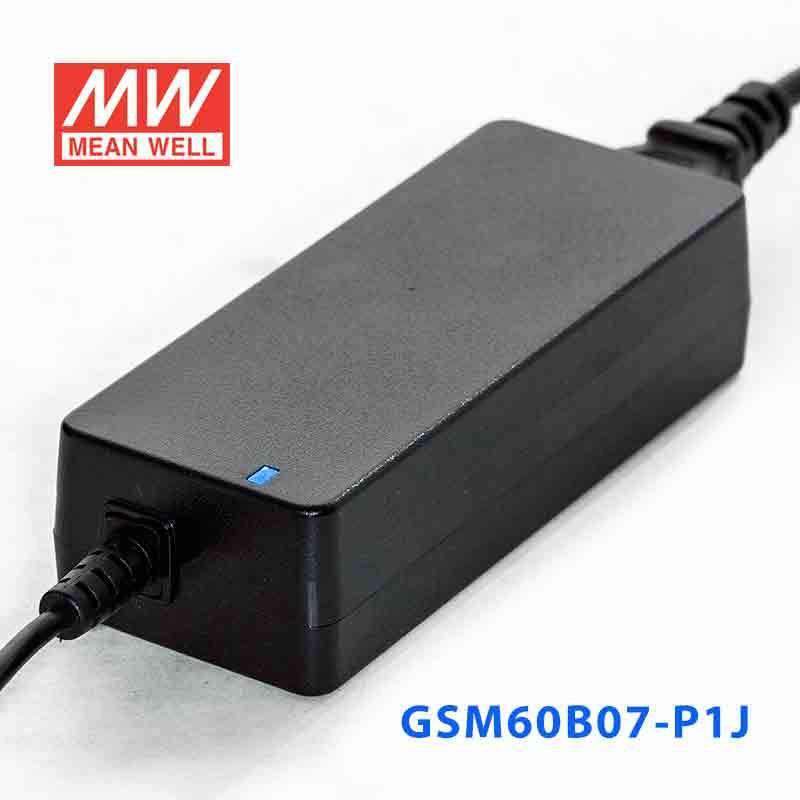

Mean Well GSM60B07-P1J Power Supply 40W 7.5V 6A

SKU:

GSM60B07-P1J

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

GSM60B07-P1J

GSM18B07-P1J 2 Pole Backorder

GSM60B07-P1J 2 Pole Backorder

GSM25B07-P1J 2 Pole Backorder

GSM36B07-P1J 2 Pole Backorder

GSM40A07-P1J 3 Pole Backorder

GSM40B07-P1J 2 Pole Backorder

GSM60A07-P1J 3 Pole Backorder

Product variants

Notify me when it's back in stock

The GSM60B07 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 80~264VAC
✓ 4KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well GSM60A12-P1J Power Supply 60W 12V 5A	60W	12V	5A	View
Mean Well GSM60A24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60E48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60E24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60E18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60E15-P1J Power Supply 60W 15V 4A	60W	15V	4A	View
Mean Well GSM60E12-P1J Power Supply 54W 12V 4.5A	54W	12V	4.5A	View
Mean Well GSM60E09-P1J Power 49.5W 9V 5.5A	49.5W	9V	5.5A	View
Mean Well GSM60E07-P1J Power Supply 40W 7.5V 6A	45W	7.5V	6A	View
Mean Well GSM60E05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well GSM60B48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60B24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60B18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60B15-P1J Power Supply 60W 15 4A	60W	15V	4A	View
Mean Well GSM60B12-P1J Power Supply 54W 12V 5A	60W	12V	5A	View
Mean Well GSM60B09-P1J Power 49.5W 9V 6A	54W	9V	6A	View
Mean Well GSM60B05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well GSM60A48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60A18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60A15-P1J Power Supply 60W 15V 4A	60W	15V	4A	View
Mean Well GSM60A09-P1J Power Supply 54W 9V 6A	54W	9V	6A	View
Mean Well GSM60A07-P1J Power Supply 45W 7.5V 6A	45W	7.5V	6A	View
Mean Well GSM60A05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
