Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

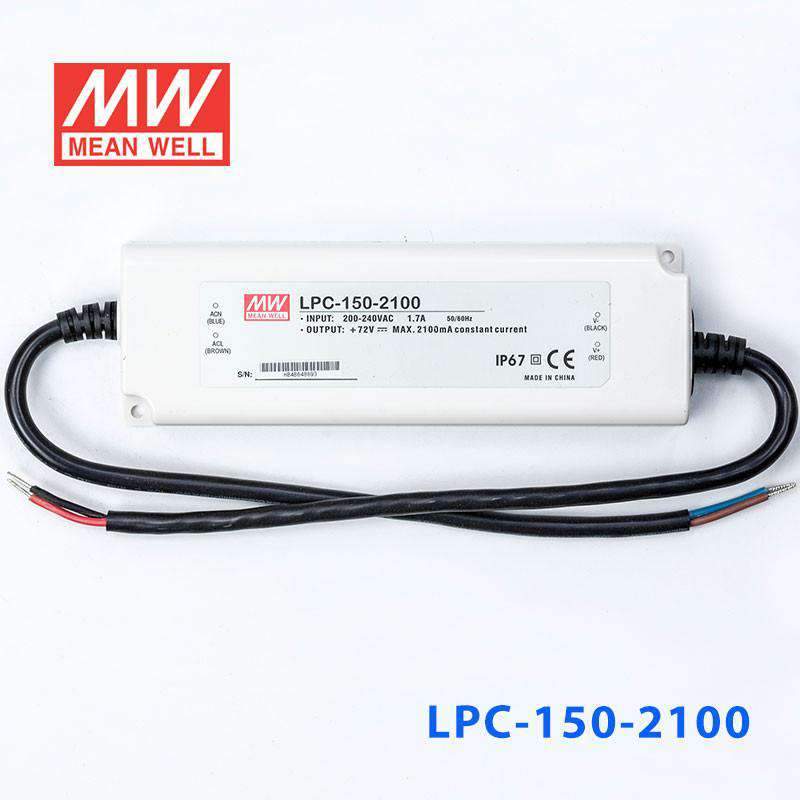

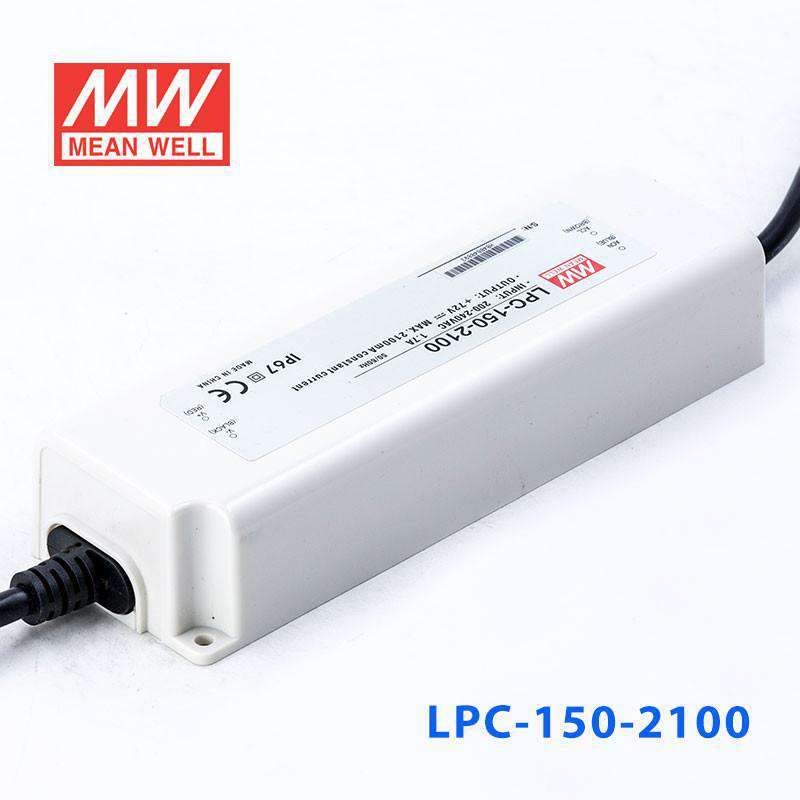

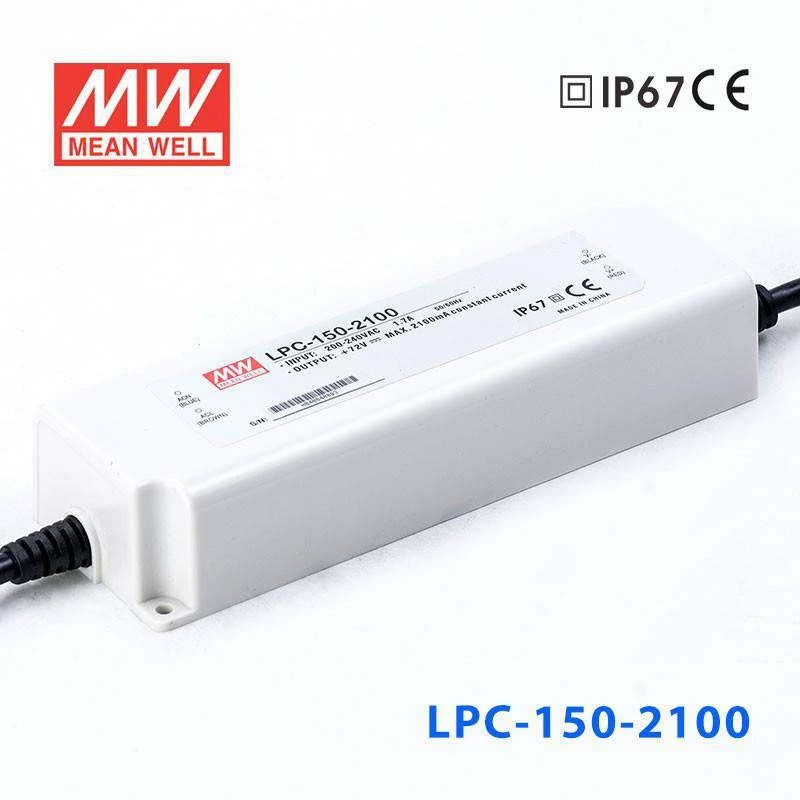

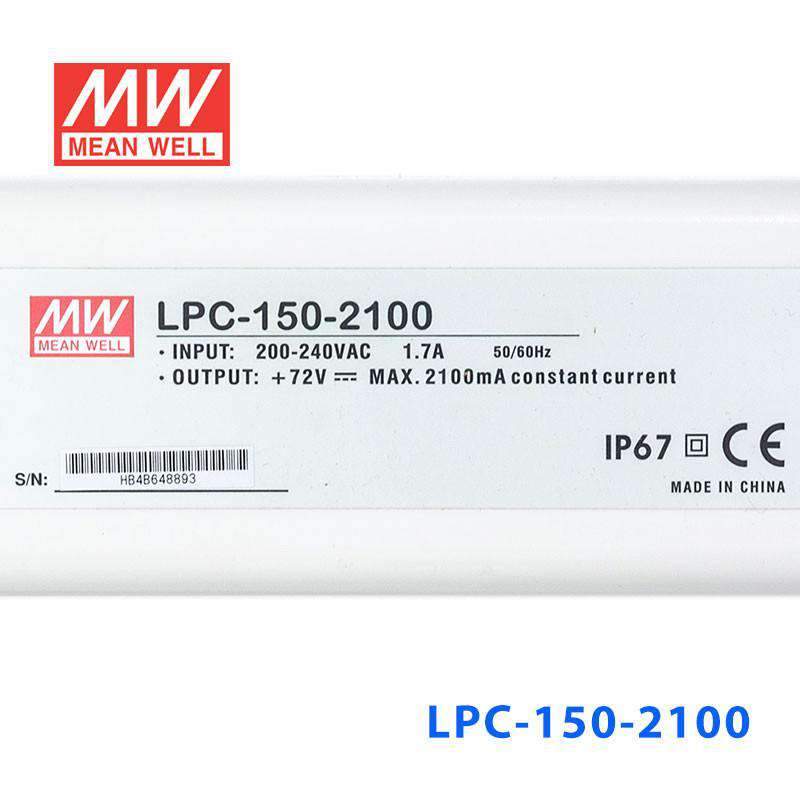

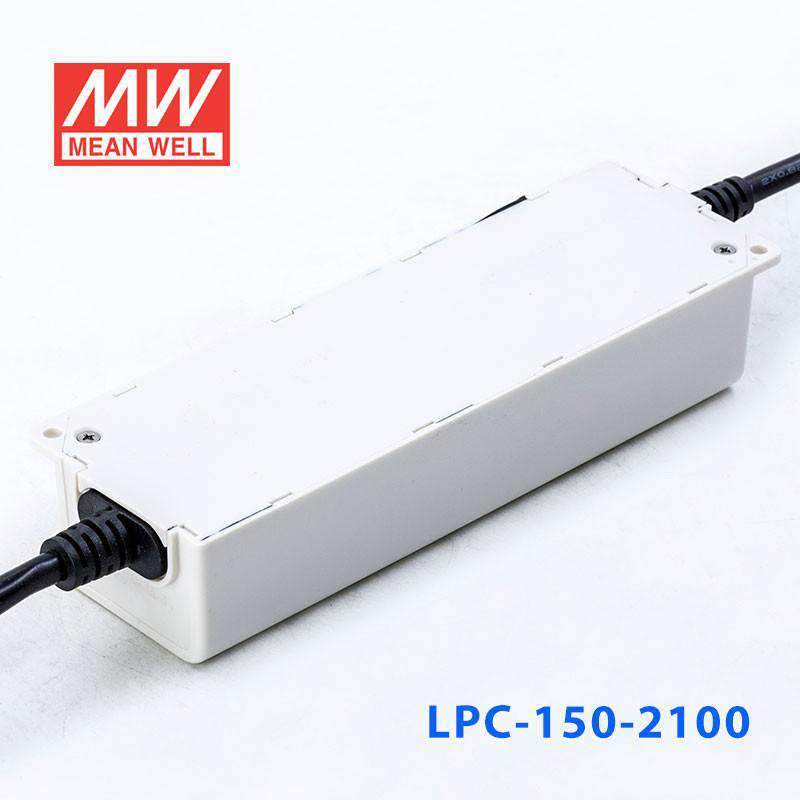

Mean Well LPC-150-2100 Power Supply 150W 2100mA

slim plastic case, economical, IP67

SKU:

LPC-150-2100

Model

100W 2100mA

SKU: LPC-100-2100

150W 2100mA

SKU: LPC-150-2100

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input/full rauge

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage

Constant current design

Withstand 300VAC surge input for 5 seconds

High efficiency up to 90%

Class II power unit, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	180~305VAC
AC inrush current	Cold start, 40A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+50°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	IP67 approved;Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN55024
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SJTW 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	191x 63x 37.5

Specifications

Brand

Mean Well
Series

LPC Series
Power Rating

151.2 Watt
Output Voltage

72 Volt
Rated Current

2.1 Ampere
Input Voltage

180V~305V
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-25°C~50°C
Warranty

2 Year
Length

19.1 cm
Width

6.3 cm
Height

3.75 cm
Weight

0.74 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPC-150-2100 for a high-current LED downlight or COB fixture?

Yes, this driver is intended for 2100mA constant current LED loads. It is a match for fixtures whose total LED forward voltage falls within 36-72V and whose power requirement stays within 151.2W.

Is the LPC-150-2100 suitable for signage modules with a lower-voltage, high-current LED string?

It can be suitable for signage modules designed around a 2100mA constant current input. Its 36-72V constant current range fits lower-voltage strings than the 700mA, 1050mA, or 1400mA high-voltage models in the series.

Can this model power a compact small LED array with heavier current demand?

Yes, the LPC-150-2100 is better aligned with compact high-current arrays than drivers built for lower current output. The array still needs to match 2100mA constant current and stay within the 36-72V and 151.2W limits.

What does LED compatibility depend on for the LPC-150-2100?

Compatibility depends on whether the LED load requires 2100mA constant current and whether its total forward voltage is within 36-72V. This is a constant current driver, not a constant voltage supply, so the number of LEDs depends on each LED's forward voltage rather than a fixed count.

Can the LPC-150-2100 be used outdoors or in wet areas?

Yes, the driver is rated IP67 waterproof and is specified for operation from -25°C to +50°C. That makes it suitable for indoor and outdoor LED applications where enclosure protection against water and dust matters.

Model	Power	Voltage	Current	IP Rating
Mean Well LPC-150-700 Power Supply 150W 700mA	150.5W	215V	0.7A	IP67	View
Mean Well LPC-150-500 Power Supply 150W 500mA	150W	300V	0.5A	IP67	View
Mean Well LPC-150-350 Power Supply150W 350mA	150.5W	430V	0.35A	IP67	View
Mean Well LPC-150-3150 Power Supply 150W 3150mA	151.2W	48V	3.15A	IP67	View
Mean Well LPC-150-2800 Power Supply 150W 2800mA	151.2W	54V	2.8A	IP67	View
Mean Well LPC-150-2450 Power Supply 150W 2450mA	151.9W	62V	2.45A	IP67	View
Mean Well LPC-150-1750 Power Supply 150W 1750mA	150.5W	86V	1.75A	IP67	View
Mean Well LPC-150-1400 Power Supply 150W1400mA	151.2W	108V	1.4A	IP67	View
Mean Well LPC-150-1050 Power Supply 150W 1050mA	151.2W	144V	1.05A	IP67	View
