Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

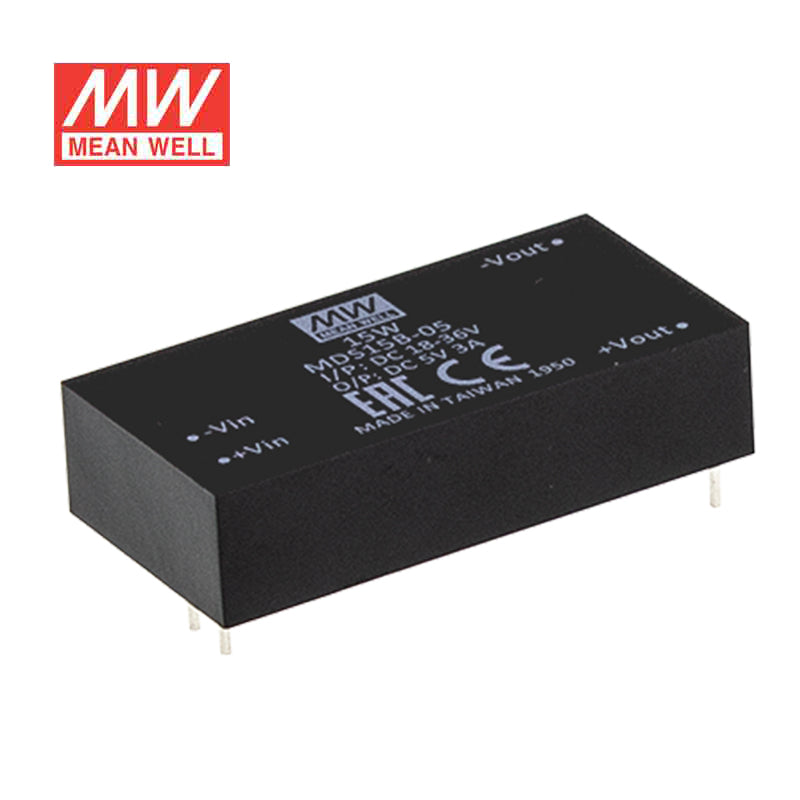

Mean Well MDS15B-05 DC-DC Converter - 15W - 18~36V in 5V out

Q: Can I use the MDS15B-05 for 5V embedded processors or logic boards in industrial equipment?

Yes, it delivers a constant 5V output rated for 15W and 3A, which suits many low-power embedded and control applications. The input source needs to be within the listed 18-36VAC range.

Q: Is the MDS15B-05 suitable for powering 5V industrial communication or interface electronics?

It can be a good match for 5V control electronics that need constant-voltage output and draw no more than 3A. Its published power ceiling is 15W, with an 18-36VAC input range.

Q: Can this model support 5V automation sensors or small controller subsystems?

For low-power 5V automation loads, the relevant limits are the 5V output, 3A current rating, and 15W total power. It is intended for applications fed from an 18-36VAC source, not for loads outside that input window.

Q: Is the MDS15B-05 meant for outdoor service or only protected enclosures?

The temperature specification is -40C to +90C, so it supports a wide operating range. The provided specs do not list an IP rating, so they support temperature assessment but not a claim of outdoor or sealed-enclosure performance by themselves.

Q: What is the difference between the MDS15B-05 and the other MDS15B converters?

The MDS15B family uses the same 18-36VAC input range and 15W rating across the series. Output options are 5V at 3A for MDS15B-05, 12V at 1.25A for MDS15B-12, 15V at 1A for MDS15B-15, and 24V at 625A for MDS15B-24.

SKU:

MDS15B-05

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 2"x1" package with international standard pinout

2:1 wide input range

Low patient leakage current <5µA

Wide operating temperature range -40~+90℃

Medical safety approved(2xMOPP) according to IEC60601-1

Protections: Short circuit(Continuous)/Overload/Input under voltage

4000VAC high I/O isolation(Reinforced isolation)

3 years warranty

General Specification

Voltage accuracy	±1%
Efficiency	88%
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +90°C
Temp. Coefficient	0.03% / ℃ (0 ~ 70℃)
Dimension (LxWxH) (mm)	50.825.412mm (210.47 inch)

Specifications

Brand

Mean Well
Series

MDS Series
Power Rating

15 Watt
Output Voltage

5 Volt
Rated Current

3 Ampere
Input Voltage

18V~36V
Standards Met

CE,EAC,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

5.08 cm
Width

2.54 cm
Height

1.2 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MDS15B-05 for 5V embedded processors or logic boards in industrial equipment?

Yes, it delivers a constant 5V output rated for 15W and 3A, which suits many low-power embedded and control applications. The input source needs to be within the listed 18-36VAC range.

Is the MDS15B-05 suitable for powering 5V industrial communication or interface electronics?

It can be a good match for 5V control electronics that need constant-voltage output and draw no more than 3A. Its published power ceiling is 15W, with an 18-36VAC input range.

Can this model support 5V automation sensors or small controller subsystems?

For low-power 5V automation loads, the relevant limits are the 5V output, 3A current rating, and 15W total power. It is intended for applications fed from an 18-36VAC source, not for loads outside that input window.

Is the MDS15B-05 meant for outdoor service or only protected enclosures?

The temperature specification is -40C to +90C, so it supports a wide operating range. The provided specs do not list an IP rating, so they support temperature assessment but not a claim of outdoor or sealed-enclosure performance by themselves.

What is the difference between the MDS15B-05 and the other MDS15B converters?

The MDS15B family uses the same 18-36VAC input range and 15W rating across the series. Output options are 5V at 3A for MDS15B-05, 12V at 1.25A for MDS15B-12, 15V at 1A for MDS15B-15, and 24V at 625A for MDS15B-24.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS15C-24 DC-DC Converter - 15W - 36~75V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15C-15 DC-DC Converter - 15W - 36~75V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15C-12 DC-DC Converter - 15W - 36~75V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15C-05 DC-DC Converter - 15W - 36~75V in 5V out	15W	5V	3A	Indoor	View
Mean Well MDS15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
