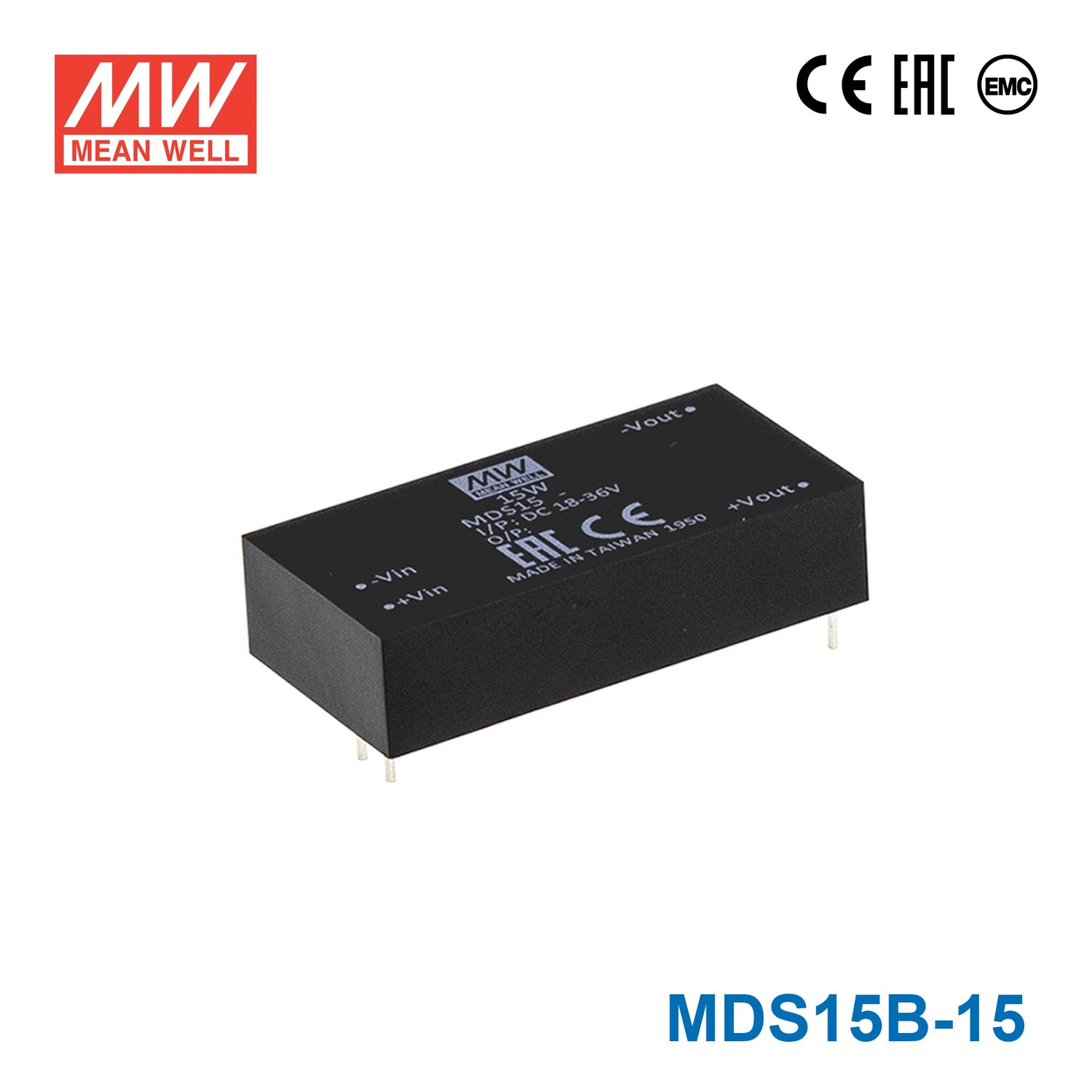

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MDS15B-15 DC-DC Converter - 15W - 18~36V in 15V out

Q: Can I use the MDS15B-15 to provide a 15V rail inside industrial control equipment?

Yes, this model is a 15W constant-voltage DC-DC converter with a 15V output at 1A. That makes it suitable for low-power 15V auxiliary rails in industrial control, embedded, or automation equipment that is fed from an 18-36VAC input range.

Q: Is the MDS15B-15 a fit for 24V-class vehicle or battery-based systems that need 15V output?

It can fit systems where the available source stays within the listed 18-36VAC input range and the load needs 15V constant voltage. With 15W total output power and 1A output current, it is aimed at lighter-duty embedded or control loads rather than larger field devices.

Q: Can I use this converter for instrumentation or analog interface boards that require 15V?

Yes, the 15V constant-voltage output is appropriate for low-power instrumentation, analog interface, and signal-conditioning circuits when the total demand stays within 15W. The compact 50.8 x 25.4 x 12.0 mm size also makes it easier to place in dense control assemblies.

Q: Is the MDS15B-15 suitable for PLC cabinet or embedded enclosure environments?

It is rated for operation from -40 C to +90 C, which supports use in a wide range of industrial indoor environments. However, no IP rating is listed in the provided specs, so the specifications do not establish outdoor exposure resistance and it is better treated as a converter for protected enclosures.

Q: How does the MDS15B-15 compare with the other MDS15B models?

All listed MDS15B models are 15W converters in the same family. The sibling outputs are MDS15B-05 at 5V and 3A, MDS15B-12 at 12V and 1.25A, MDS15B-15 at 15V and 1A, and MDS15B-24 at 24V and 625A.

SKU:

MDS15B-15

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 2"x1" package with international standard pinout

2:1 wide input range

Low patient leakage current <5µA

Wide operating temperature range -40~+90℃

Medical safety approved(2xMOPP) according to IEC60601-1

Protections: Short circuit(Continuous)/Overload/Input under voltage

4000VAC high I/O isolation(Reinforced isolation)

3 years warranty

General Specification

Voltage accuracy	±1%
Efficiency	88%
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +90°C
Temp. Coefficient	0.03% / ℃ (0 ~ 70℃)
Dimension (LxWxH) (mm)	50.825.412mm (210.47 inch)

Specifications

Brand

Mean Well
Series

MDS Series
Power Rating

15 Watt
Output Voltage

15 Volt
Rated Current

1 Ampere
Input Voltage

18V~36V
Standards Met

CE,EAC,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

5.08 cm
Width

2.54 cm
Height

1.2 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MDS15B-15 to provide a 15V rail inside industrial control equipment?

Yes, this model is a 15W constant-voltage DC-DC converter with a 15V output at 1A. That makes it suitable for low-power 15V auxiliary rails in industrial control, embedded, or automation equipment that is fed from an 18-36VAC input range.

Is the MDS15B-15 a fit for 24V-class vehicle or battery-based systems that need 15V output?

It can fit systems where the available source stays within the listed 18-36VAC input range and the load needs 15V constant voltage. With 15W total output power and 1A output current, it is aimed at lighter-duty embedded or control loads rather than larger field devices.

Can I use this converter for instrumentation or analog interface boards that require 15V?

Yes, the 15V constant-voltage output is appropriate for low-power instrumentation, analog interface, and signal-conditioning circuits when the total demand stays within 15W. The compact 50.8 x 25.4 x 12.0 mm size also makes it easier to place in dense control assemblies.

Is the MDS15B-15 suitable for PLC cabinet or embedded enclosure environments?

It is rated for operation from -40 C to +90 C, which supports use in a wide range of industrial indoor environments. However, no IP rating is listed in the provided specs, so the specifications do not establish outdoor exposure resistance and it is better treated as a converter for protected enclosures.

How does the MDS15B-15 compare with the other MDS15B models?

All listed MDS15B models are 15W converters in the same family. The sibling outputs are MDS15B-05 at 5V and 3A, MDS15B-12 at 12V and 1.25A, MDS15B-15 at 15V and 1A, and MDS15B-24 at 24V and 625A.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS15C-24 DC-DC Converter - 15W - 36~75V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15C-15 DC-DC Converter - 15W - 36~75V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15C-12 DC-DC Converter - 15W - 36~75V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15C-05 DC-DC Converter - 15W - 36~75V in 5V out	15W	5V	3A	Indoor	View
Mean Well MDS15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well MDS15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
