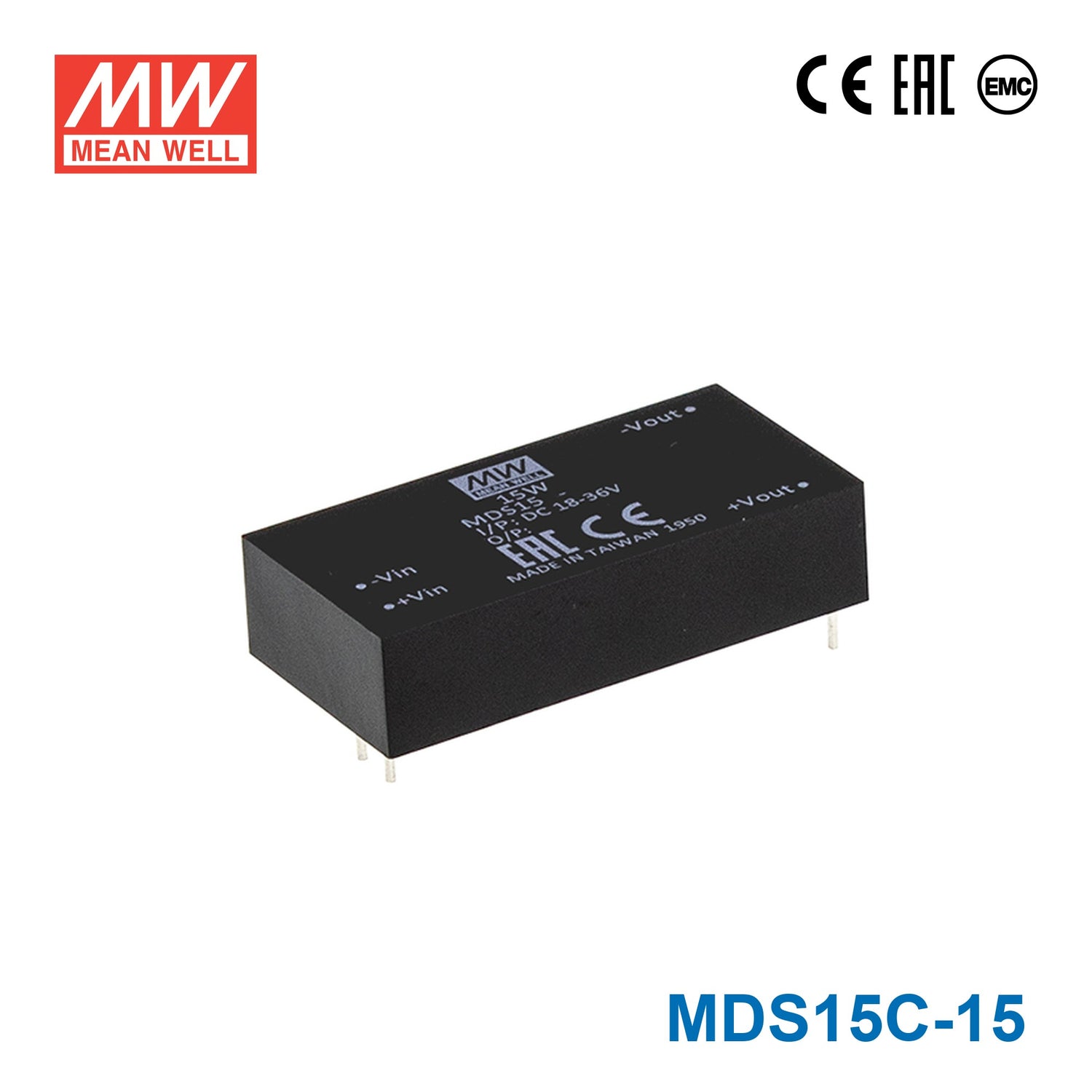

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MDS15C-15 DC-DC Converter - 15W - 36~75V in 15V out

Q: Can I use the MDS15C-15 for a 15V rail in industrial test or measurement equipment?

Yes, this model provides a constant 15V output at 1A with 15W total power. That makes it suitable for low-power test, measurement, control, and embedded circuits that need 15V from a 36-75VAC input source.

Q: Is the MDS15C-15 a fit for embedded analog or interface electronics that require 15V?

It can be a fit where the load needs regulated 15V and stays within the 15W output rating. The 1A output current positions it for lighter analog, interface, and support electronics rather than larger 15V subsystems.

Q: Can this converter be used in higher-voltage automation systems that need a small 15V auxiliary output?

Yes, it is intended for systems operating from a 36-75VAC input range that need a constant 15V output. That is relevant for automation or industrial platforms that distribute a higher input voltage and require a smaller 15V auxiliary rail internally.

Q: Is the MDS15C-15 suitable for space-constrained control assemblies?

Yes, its dimensions are 50.8 x 25.4 x 12.0 mm and its weight is 0.03 kg. Those specs make it practical for compact control, instrumentation, and embedded assemblies where board or enclosure space is limited.

Q: Can the MDS15C-15 be used in outdoor equipment cabinets?

The converter is specified for operation from -40 C to +90 C, which supports demanding ambient temperatures. However, because no IP rating is listed, the published specs do not confirm weather or moisture protection for outdoor exposure.

Q: How does the MDS15C-15 compare with its sibling models?

The listed MDS15C converters all share a 15W platform and differ by output rating. The siblings are MDS15C-05 at 5V and 3A, MDS15C-12 at 12V and 1.25A, MDS15C-15 at 15V and 1A, and MDS15C-24 at 24V and 625A.

SKU:

MDS15C-15

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 2"x1" package with international standard pinout

2:1 wide input range

Low patient leakage current <5µA

Wide operating temperature range -40~+90℃

Medical safety approved(2xMOPP) according to IEC60601-1

Protections: Short circuit(Continuous)/Overload/Input under voltage

4000VAC high I/O isolation(Reinforced isolation)

3 years warranty

General Specification

Voltage accuracy	±1%
Efficiency	88%
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +90°C
Temp. Coefficient	0.03% / ℃ (0 ~ 70℃)
Dimension (LxWxH) (mm)	50.825.412mm (210.47 inch)

Specifications

Brand

Mean Well
Series

MDS Series
Power Rating

15 Watt
Output Voltage

15 Volt
Rated Current

1 Ampere
Input Voltage

36V~75V
Standards Met

CE,EAC,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

5.08 cm
Width

2.54 cm
Height

1.2 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MDS15C-15 for a 15V rail in industrial test or measurement equipment?

Yes, this model provides a constant 15V output at 1A with 15W total power. That makes it suitable for low-power test, measurement, control, and embedded circuits that need 15V from a 36-75VAC input source.

Is the MDS15C-15 a fit for embedded analog or interface electronics that require 15V?

It can be a fit where the load needs regulated 15V and stays within the 15W output rating. The 1A output current positions it for lighter analog, interface, and support electronics rather than larger 15V subsystems.

Can this converter be used in higher-voltage automation systems that need a small 15V auxiliary output?

Yes, it is intended for systems operating from a 36-75VAC input range that need a constant 15V output. That is relevant for automation or industrial platforms that distribute a higher input voltage and require a smaller 15V auxiliary rail internally.

Is the MDS15C-15 suitable for space-constrained control assemblies?

Yes, its dimensions are 50.8 x 25.4 x 12.0 mm and its weight is 0.03 kg. Those specs make it practical for compact control, instrumentation, and embedded assemblies where board or enclosure space is limited.

Can the MDS15C-15 be used in outdoor equipment cabinets?

The converter is specified for operation from -40 C to +90 C, which supports demanding ambient temperatures. However, because no IP rating is listed, the published specs do not confirm weather or moisture protection for outdoor exposure.

How does the MDS15C-15 compare with its sibling models?

The listed MDS15C converters all share a 15W platform and differ by output rating. The siblings are MDS15C-05 at 5V and 3A, MDS15C-12 at 12V and 1.25A, MDS15C-15 at 15V and 1A, and MDS15C-24 at 24V and 625A.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS15C-24 DC-DC Converter - 15W - 36~75V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15C-12 DC-DC Converter - 15W - 36~75V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15C-05 DC-DC Converter - 15W - 36~75V in 5V out	15W	5V	3A	Indoor	View
Mean Well MDS15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well MDS15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well MDS15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well MDS15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well MDS15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
