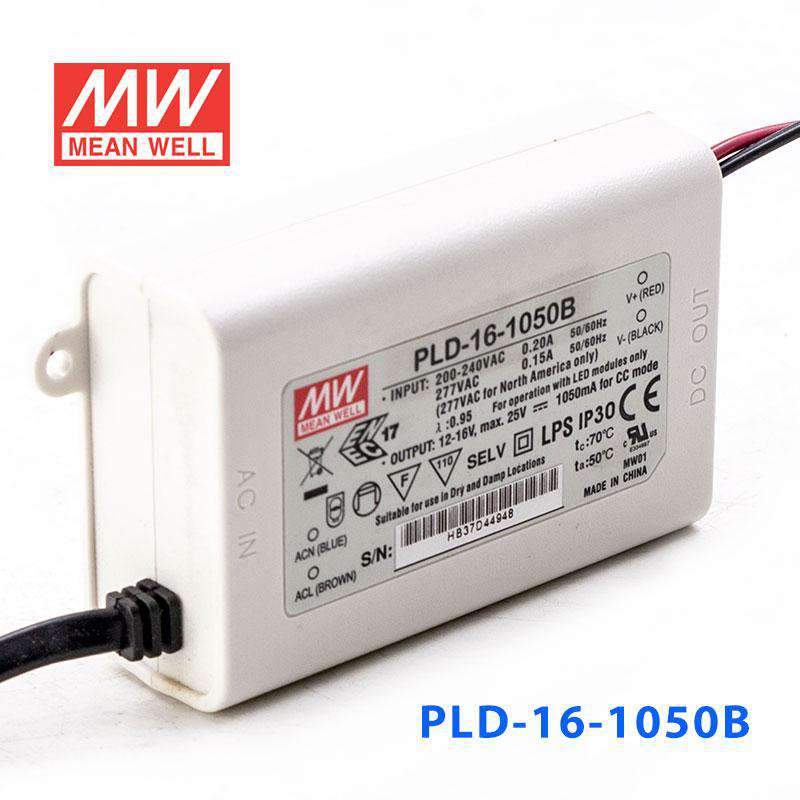

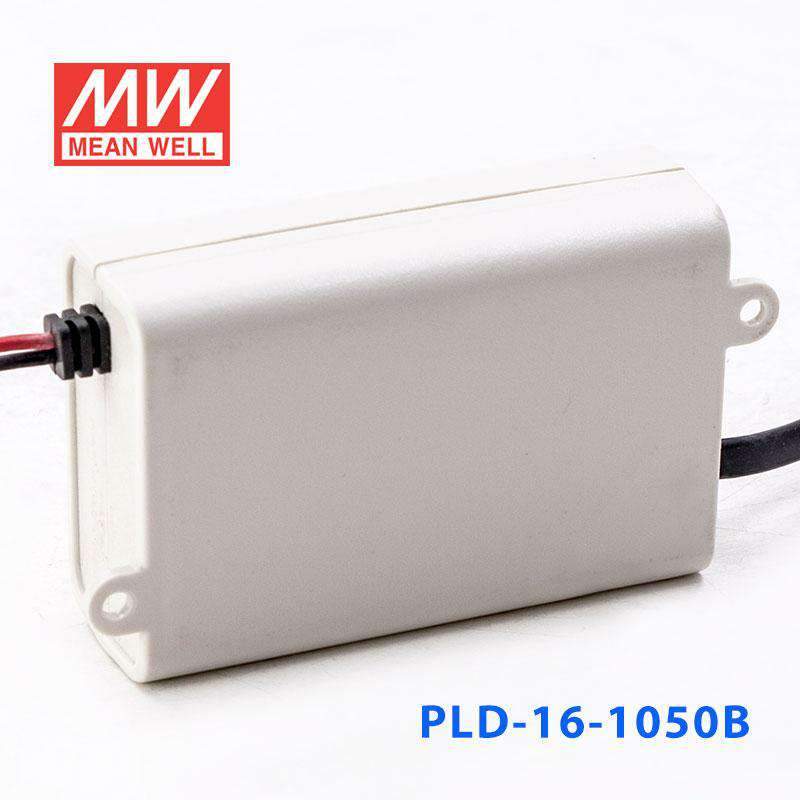

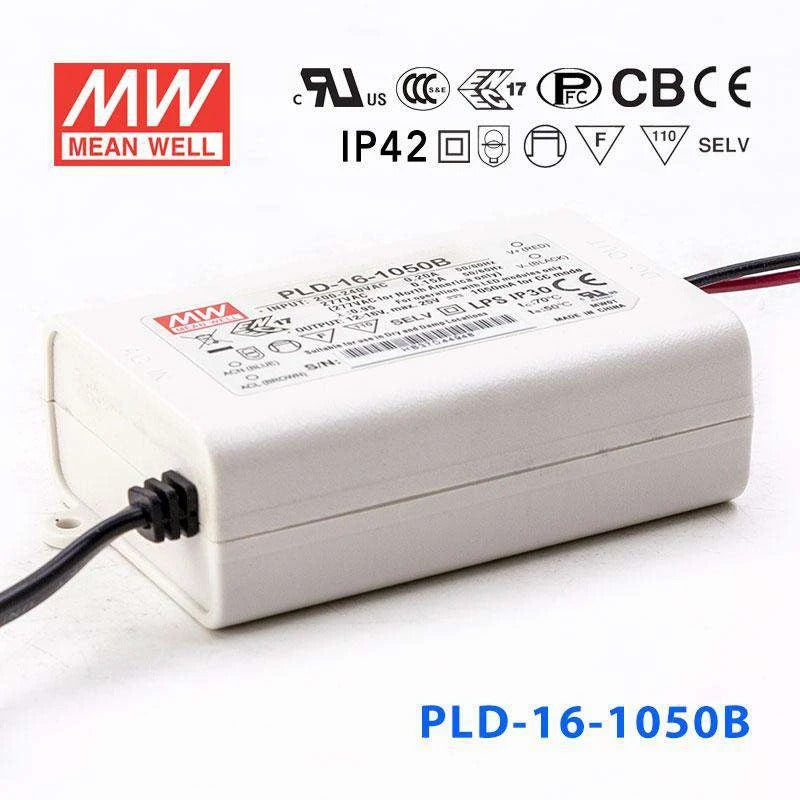

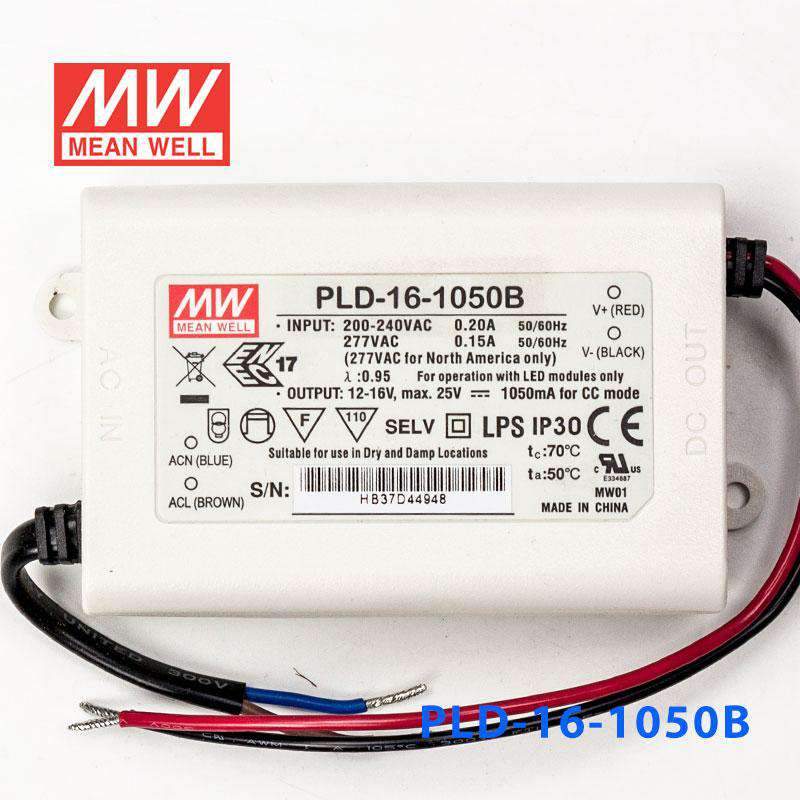

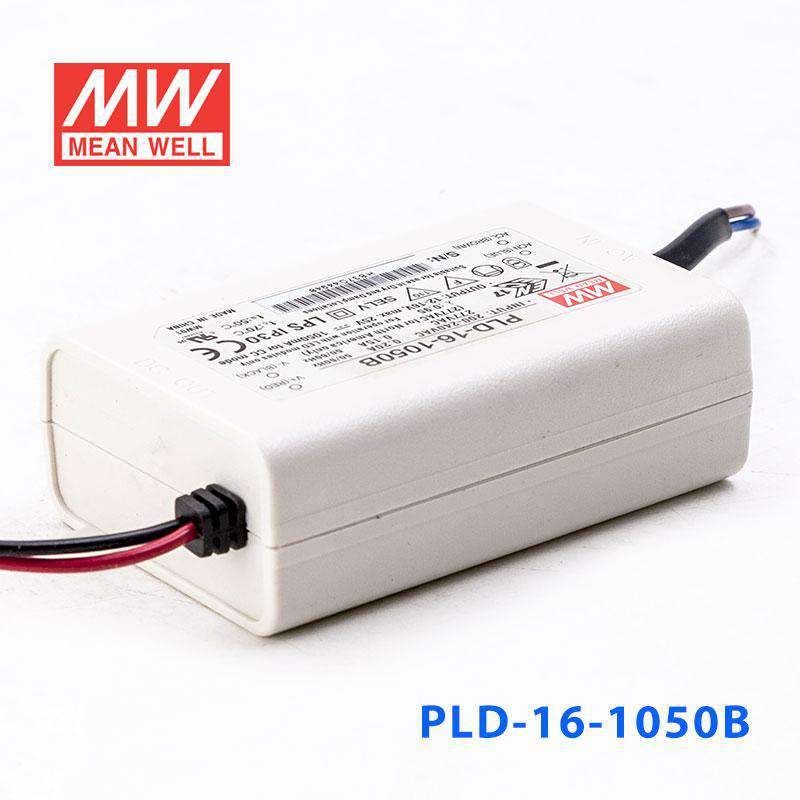

Mean Well PLD-16-1050B Power Supply 16W 1050mA

plastic caseIP42Class II design without FG
SKU PLD-16-1050B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by PLD-25-1050B
In stock
|

Overview

PLD-16-1050B is the model of this series: rated current 1050mA, rated power 16.8W, typical efficiency 84%. Type B: With AC input 180~ 295VAC.

Features

  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class 2 Power Unit
  • Class Ⅱ power unit, no FG
  • IP42 design
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-16-1050BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
12 ~ 16V
CURRENT ACCURACY
±5.0%
RATED POWER
16.8W
RIPPLE & NOISE (max.)Note.1
2.2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
25V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.) A series
84%
EFFICIENCY (Typ.) B series
85%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.)
COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT

MODEL ENCODING

A
With AC input 90~ 135VAC
B (this model)
With AC input 180~ 295VAC
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-16-1050B Mechanical Specification
Mechanical Specification
PLD-16-1050B Block Diagram
Block Diagram
PLD-16-1050B Power Factor Characteristic
Power Factor Characteristic
PLD-16-1050B EFFICIENCY vs LOAD (PLD-16-350)
EFFICIENCY vs LOAD (PLD-16-350)

Downloads

FAQ

Can I use the PLD-16-1050B for a compact LED downlight?

Yes, when the downlight is specified for 1050mA constant current operation. The LED load must stay within the 12-16V constant current range and within the 16.8W output capacity.

Will this driver work with constant current signage modules?

Yes, if the signage modules are designed for constant current at 1050mA. The full LED load must operate within the 12-16V CC range, and this driver is not for constant voltage signage systems.

Is the PLD-16-1050B a good fit for a small LED array in a display fixture?

It can be, provided the LED array is rated for 1050mA constant current. The total LED forward voltage must fall within 12-16V, and the number of LEDs depends on the forward voltage of each LED.

Can this model be used for constant voltage LED tape or strip products?

No, because the PLD-16-1050B is a constant current driver, not a constant voltage power supply. It regulates 1050mA and supports LED loads only within the 12-16V constant current range.

What should I check before pairing this driver with an LED module?

Check that the module is built for 1050mA constant current and that the full LED load stays within the 12-16V CC output range. The exact number of LEDs depends on each LED forward voltage, so there is no single fixed LED count.

Is the PLD-16-1050B intended for harsh outdoor environments?

Its IP42 rating is better suited to indoor or protected locations rather than exposed outdoor use. The unit is rated for -30°C to +50°C, but the environment still needs to match the limitations of an IP42 rating.
