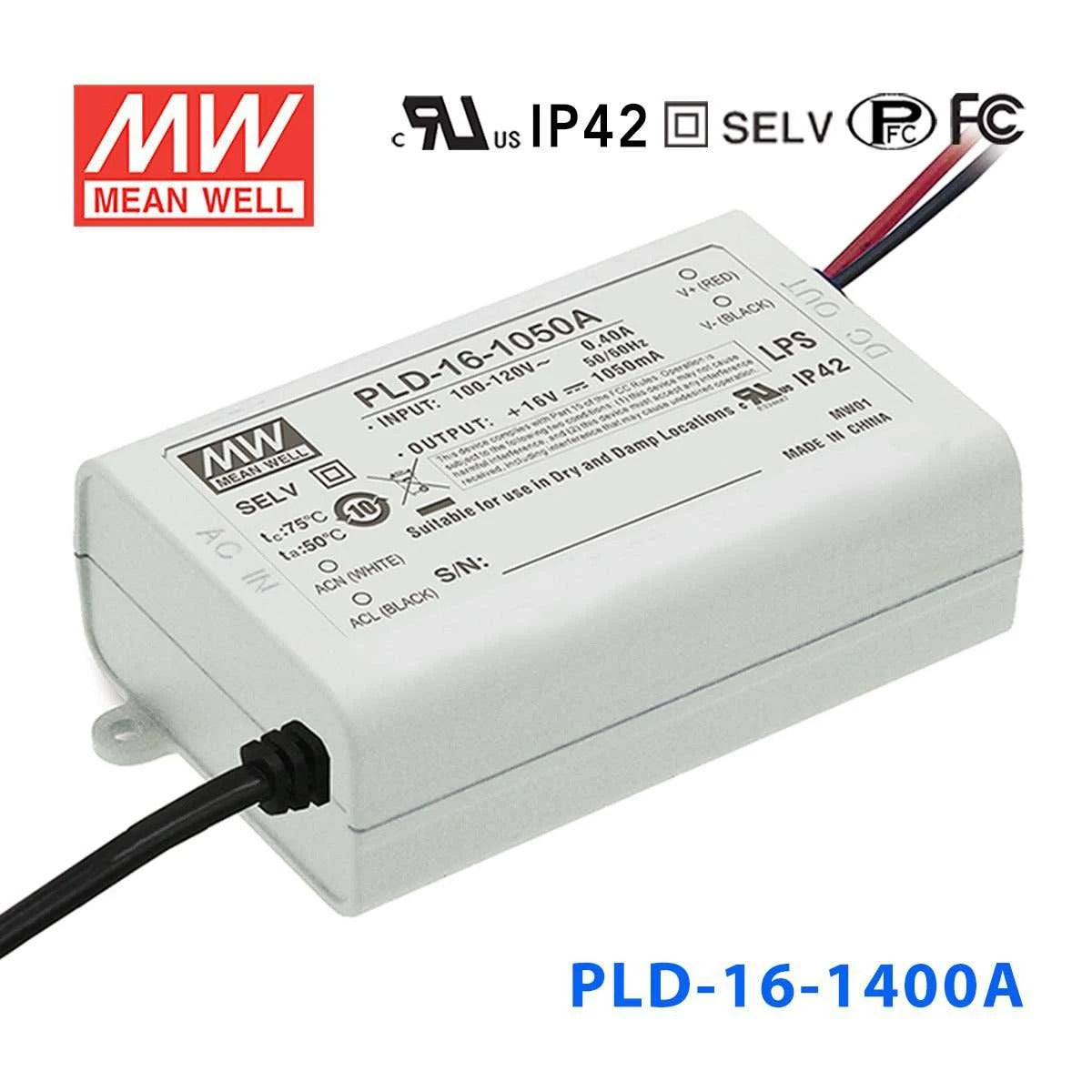

Mean Well PLD-16-1400A Power Supply 16W 1400mA

plastic caseIP42Class II design without FG
SKU PLD-16-1400A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by PLD-25-1400A
Available to order
|

Overview

PLD-16-1400A is the model of this series: rated current 1400mA, rated power 16.8W, typical efficiency 82.5%. Type A: With AC input 90~ 135VAC.

Features

  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class 2 Power Unit
  • Class Ⅱ power unit, no FG
  • IP42 design
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-16-1400ASpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
8 ~ 12V
CURRENT ACCURACY
±5.0%
RATED POWER
16.8W
RIPPLE & NOISE (max.)Note.1
2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
16V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.) A series
82.5%
EFFICIENCY (Typ.) B series
83.5%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.)
COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT

MODEL ENCODING

A (this model)
With AC input 90~ 135VAC
B
With AC input 180~ 295VAC
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-16-1400A Mechanical Specification
Mechanical Specification
PLD-16-1400A Block Diagram
Block Diagram
PLD-16-1400A Power Factor Characteristic
Power Factor Characteristic
PLD-16-1400A EFFICIENCY vs LOAD (PLD-16-350)
EFFICIENCY vs LOAD (PLD-16-350)

Downloads

FAQ

Can I use the PLD-16-1400A for a single LED downlight module?

Yes, if the downlight is designed for 1400mA constant current. The LED load must operate within the 8-12V constant current range and within the 16.8W rating.

Is this driver suitable for compact signage light modules?

It can be suitable when the signage module is made for 1400mA constant current operation. The total forward voltage of the module string must stay within 8-12V, and it is not for constant voltage signage products.

Can the PLD-16-1400A power a small LED array?

Yes, for a small LED array that requires 1400mA constant current and falls within the 8-12V CC range. The exact number of LEDs depends on the forward voltage of each LED rather than a fixed count.

Is this a better match for low-voltage constant current LED loads than higher-voltage arrays?

Yes, this model is intended for LED loads that operate within an 8-12V constant current window at 1400mA. Loads needing a higher constant current voltage range would need a different driver.

How do I confirm LED compatibility with the PLD-16-1400A?

The LED load must be specified for 1400mA constant current, with a total forward voltage between 8V and 12V. The number of LEDs depends on each LED forward voltage, so compatibility is determined by the full electrical load.

Can this driver be used in enclosed indoor fixtures with moderate environmental exposure?

Its IP42 rating is generally suited to indoor or protected fixture environments rather than exposed wet locations. It is rated for operation from -30°C to +50°C, so both enclosure conditions and ambient temperature should stay within that range.
