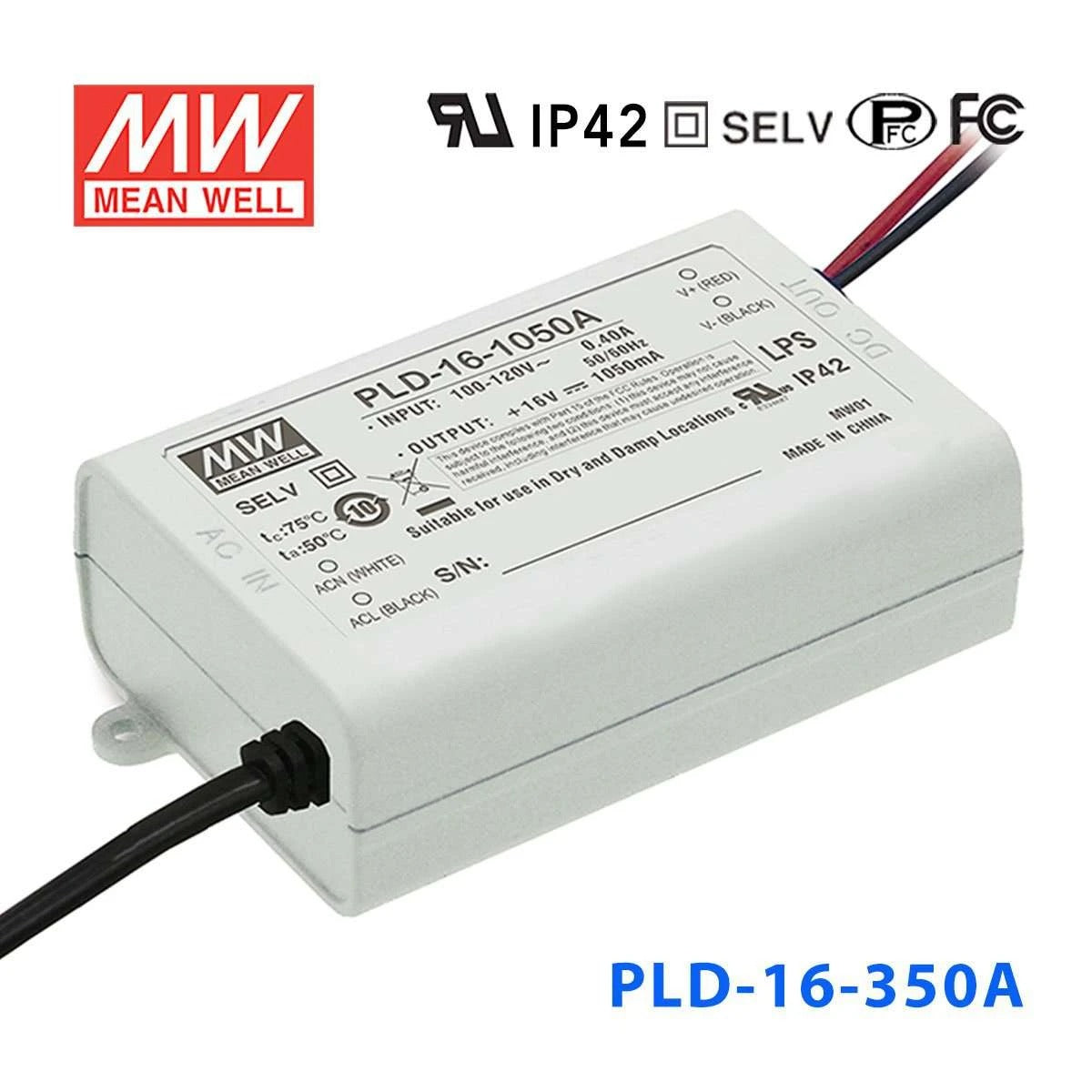

Mean Well PLD-16-350A Power Supply 16W 350mA
Please Login for Pricing
Description
Description
The PLD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750,CSA C22.2 No.250.0-08(except for PLD-16-350);ENEC EN 613471-1,EN 61347-2-13 independent, EN62384(for B type only), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating16.8 Watt
-
Output Voltage48 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~135V
-
Standards MetCE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PLD-16-350A for a higher-voltage LED downlight array?
Yes, if the downlight array is designed for 350mA constant current operation. The full LED load must stay within the 24-48V constant current range and within the 16.8W rating.
Is this driver suitable for signage modules that use a longer constant current LED string?
It can be suitable when the signage module string is designed for 350mA constant current. The total forward voltage must remain within 24-48V, and the exact number of LEDs depends on the forward voltage of each LED.
Can the PLD-16-350A run a small LED array with more series voltage than low-voltage drivers?
Yes, this model supports a 24-48V constant current range at 350mA. That makes it a better fit for small LED arrays with a higher total forward voltage than drivers limited to 8-12V or 12-16V.
Can I use this for constant voltage LED strips or tape lighting?
No, the PLD-16-350A is a constant current driver rated at 350mA. It is intended for LED loads that operate within the 24-48V CC range, not for constant voltage strip lighting products.
How do I check compatibility with the PLD-16-350A?
Your LED load must require 350mA constant current and have a total forward voltage between 24V and 48V. The number of LEDs that can be used depends on each LED forward voltage, so the load must be evaluated as a complete series string or array.
Is this driver appropriate for protected indoor environments with temperature swings?
Yes, it is rated for operation from -30°C to +50°C and uses a plastic case with IP42 protection. That makes it better suited to indoor or otherwise protected locations rather than direct weather exposure.
