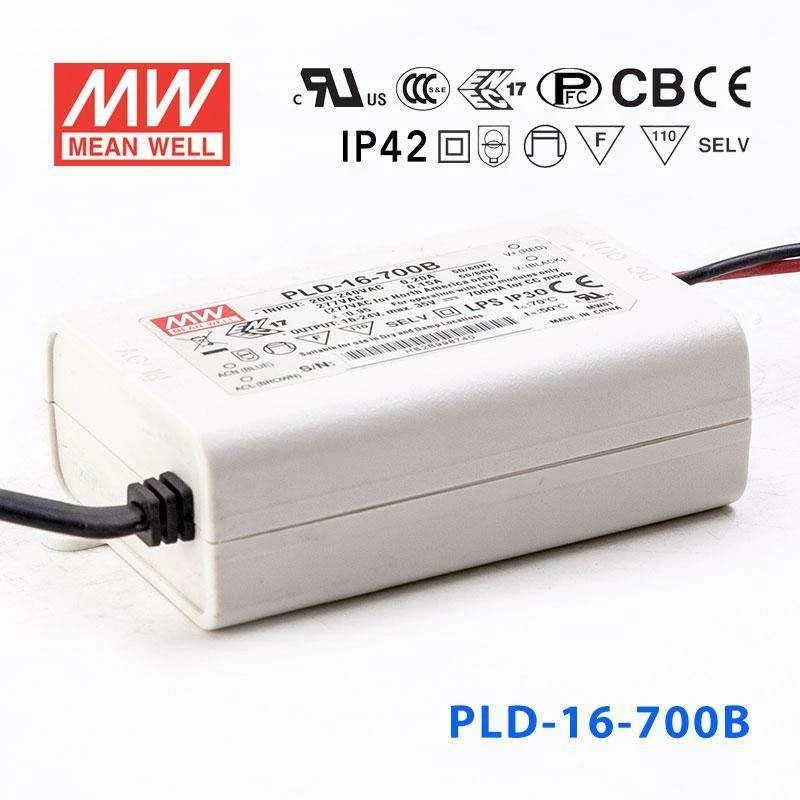

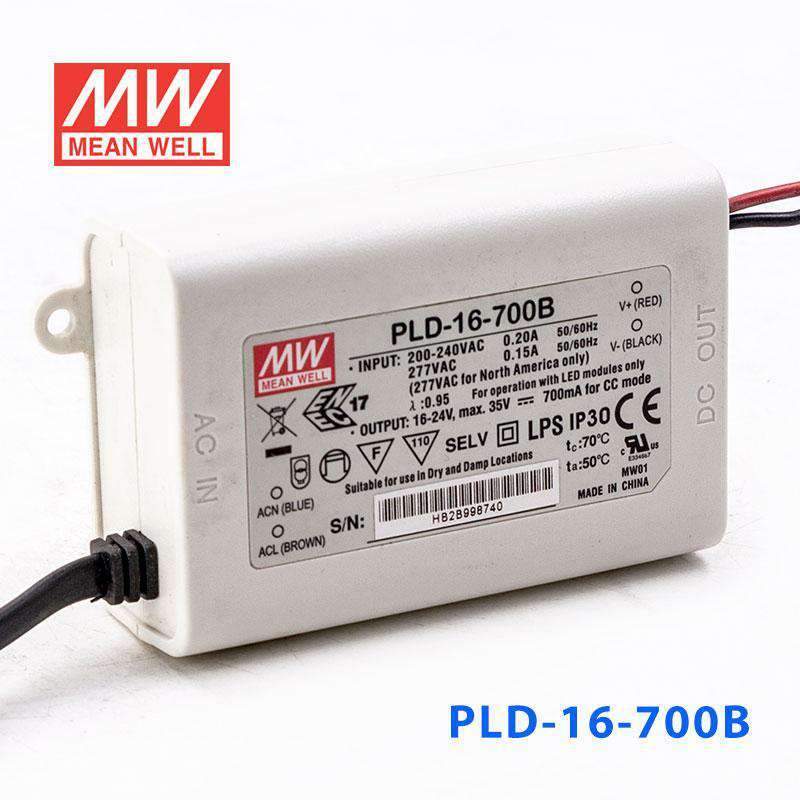

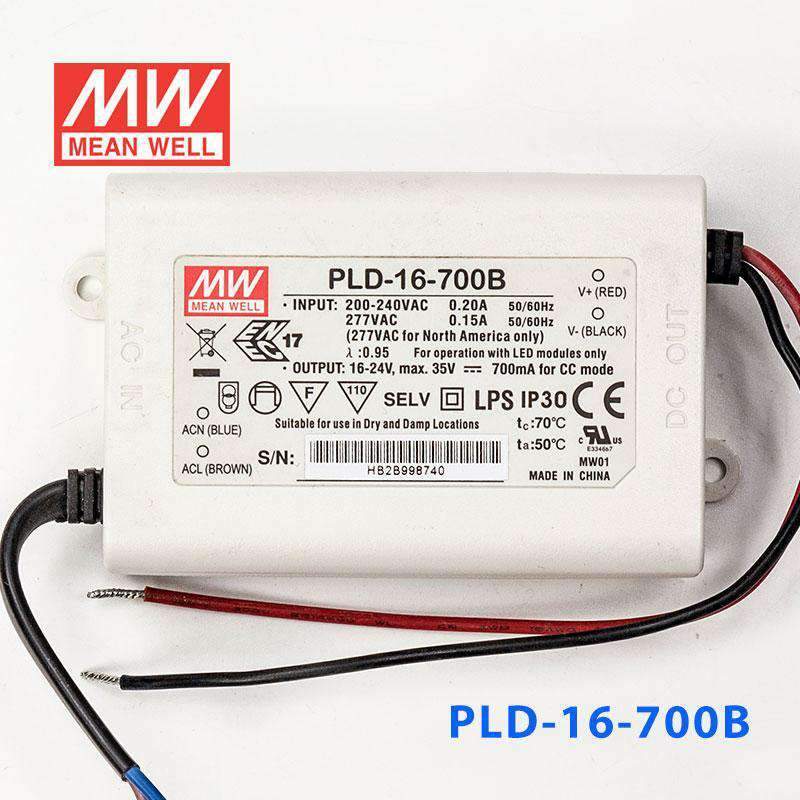

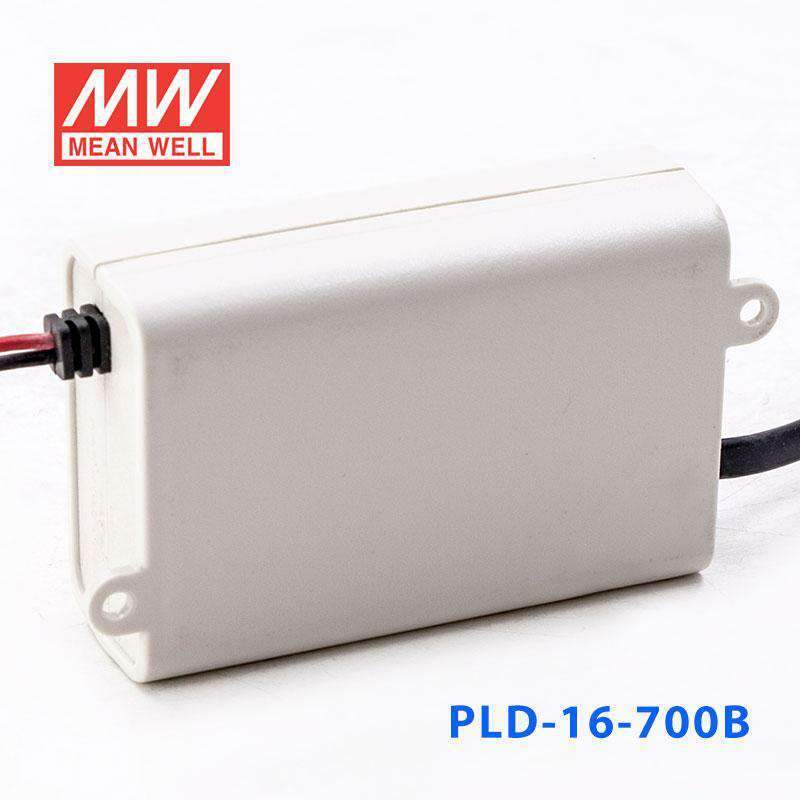

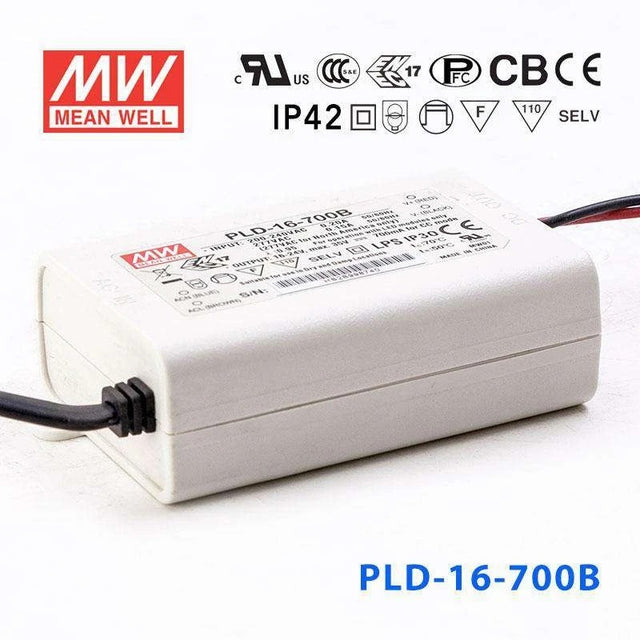

Mean Well PLD-16-700B Power Supply 16W 700mA
Please Login for Pricing
Description
Description
The PLD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750,CSA C22.2 No.250.0-08(except for PLD-16-350);ENEC EN 613471-1,EN 61347-2-13 independent, EN62384(for B type only), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating16.8 Watt
-
Output Voltage24 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
Standards MetCE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the PLD-16-700B run a 700mA LED downlight?
Yes, if the downlight is specified for 700mA constant current and its LED string operates within the 16-24V constant current range. With a 16.8W rating, it is aimed at smaller downlight loads in that range. It is a constant current model, so it should not be substituted for a constant voltage supply.
Is the PLD-16-700B appropriate for LED display or accent arrays?
Yes, for small LED arrays that require 700mA constant current and have a total forward voltage between 16V and 24V. The actual number of LEDs depends on the forward voltage of each LED. The output power limit is 16.8W.
Can I use this driver for constant current signage lighting?
Yes, if the signage lighting is built around a 700mA constant current load within the 16-24V CC range. It is not suitable for standard constant voltage signage modules that expect a fixed DC voltage. The distinction between constant current and constant voltage matters here.
What kind of LED load matches the PLD-16-700B?
A compatible load requires 700mA constant current and must operate within the driver's 16-24V constant current range. The number of LEDs is determined by the forward voltage of each LED rather than a single stated count. Total load power should remain within 16.8W.
Is the PLD-16-700B suitable for exposed outdoor conditions?
No, the IP42 rating points to use in protected areas instead of exposed outdoor environments. The driver is rated for operation from -30°C to +50°C, which covers a broad temperature range, but ingress protection is still limited to IP42. Its plastic case is better suited to enclosed or sheltered installations.
Other PLD-16 Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well PLD-16-700A Power Supply 16W 700mA | 16.8W | 24V | 0.7A | Indoor | View |
| Mean Well PLD-16-350B Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | View |
| Mean Well PLD-16-350A Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | View |
| Mean Well PLD-16-1400B Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | View |
| Mean Well PLD-16-1400A Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | View |
| Mean Well PLD-16-1050B Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | View |
| Mean Well PLD-16-1050A Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | View |
