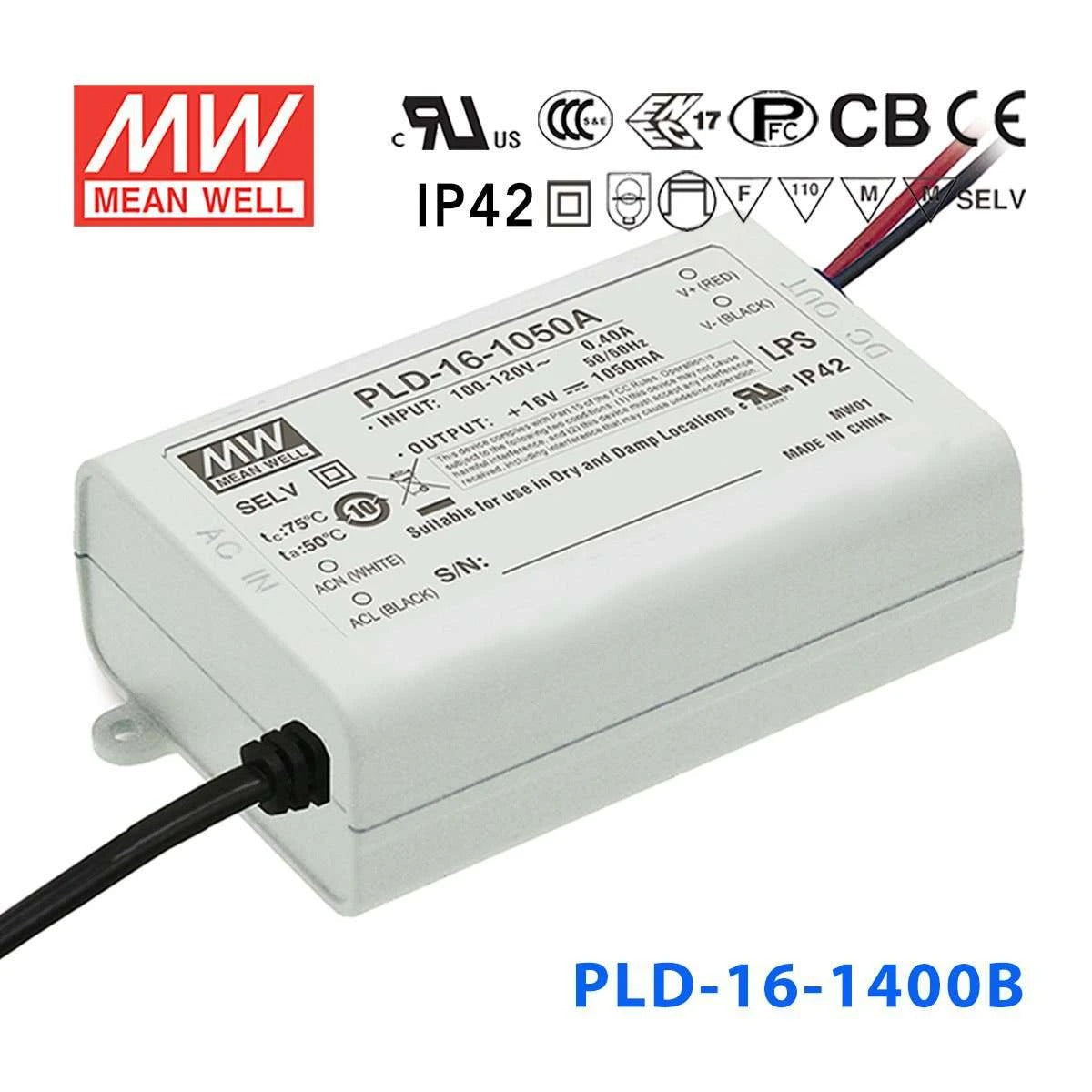

Mean Well PLD-16-1400B Power Supply 16W 1400mA
Please Login for Pricing
Description
Description
The PLD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750,CSA C22.2 No.250.0-08(except for PLD-16-350);ENEC EN 613471-1,EN 61347-2-13 independent, EN62384(for B type only), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating16.8 Watt
-
Output Voltage12 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~295V
-
Standards MetCE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PLD-16-1400B for a constant current LED downlight?
Yes, when the downlight is designed for 1400mA constant current operation. The full LED load must stay inside the 8-12V CC range and within the 16.8W output rating.
Will this driver work for small signage LED assemblies?
It can, if the signage assembly is a constant current load rated for 1400mA. The total forward voltage must remain within 8-12V, and this is not a constant voltage driver for standard LED strip or tape products.
Is the PLD-16-1400B suitable for a compact LED array in a display or light head?
Yes, provided the LED array is intended for 1400mA constant current. The array voltage must stay within 8-12V, and the number of LEDs depends on the forward voltage of each LED.
Can I use this driver where the LED load needs higher current but a lower voltage range?
Yes, this model is built for 1400mA output with an 8-12V constant current range. That makes it more appropriate for lower-voltage constant current LED loads than models with higher CC voltage ranges.
What makes an LED load electrically compatible with the PLD-16-1400B?
The LED load needs to be a 1400mA constant current load with a total forward voltage in the 8-12V range. The exact LED quantity depends on each LED forward voltage, so there is no fixed supported LED count.
Is the PLD-16-1400B meant for outdoor exposed use?
The IP42 housing is better suited to indoor or protected environments than fully exposed outdoor locations. It can operate from -30°C to +50°C, but the enclosure protection level still needs to match the installation environment.
