Mean Well

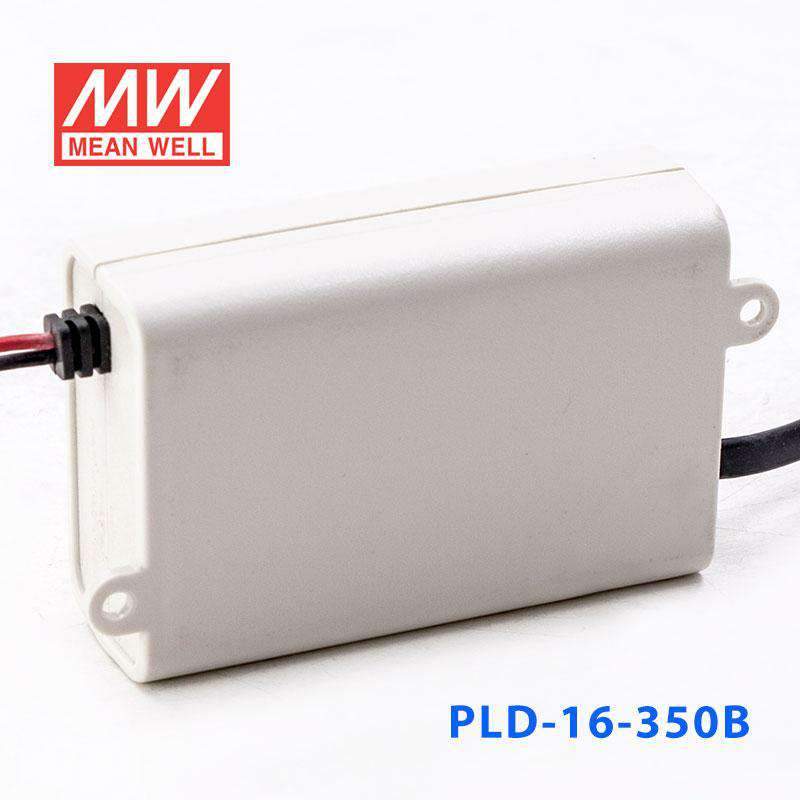

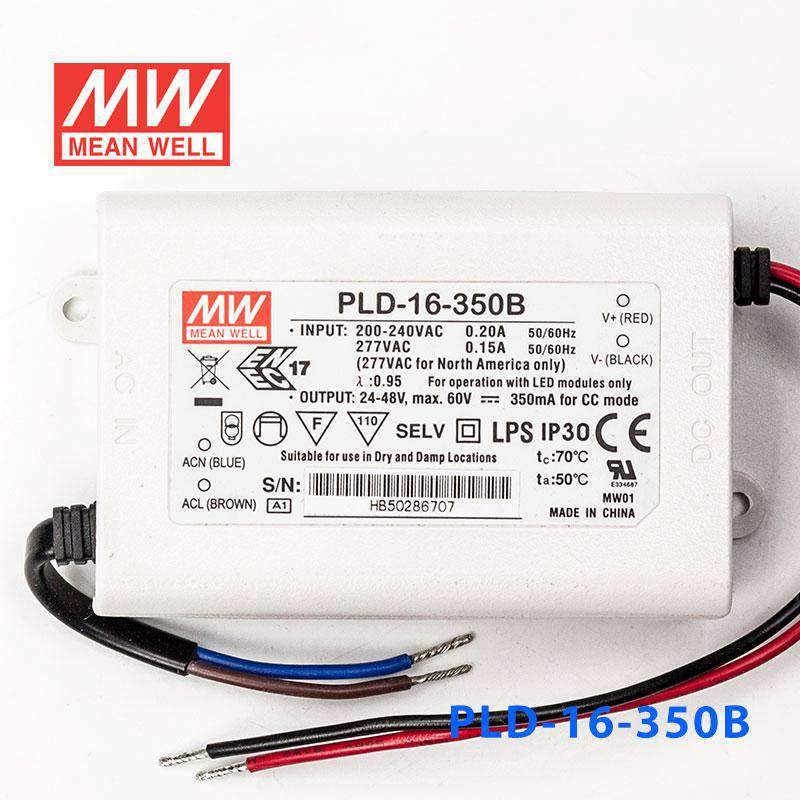

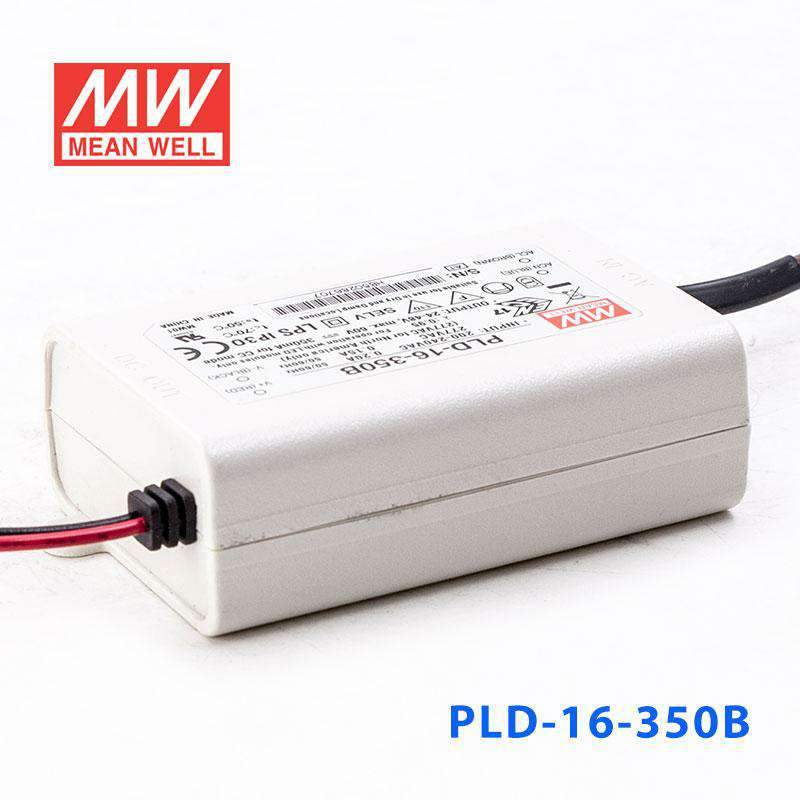

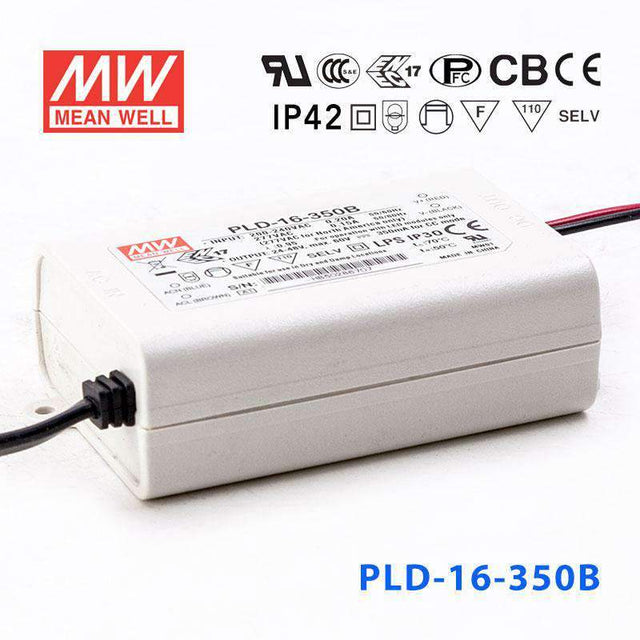

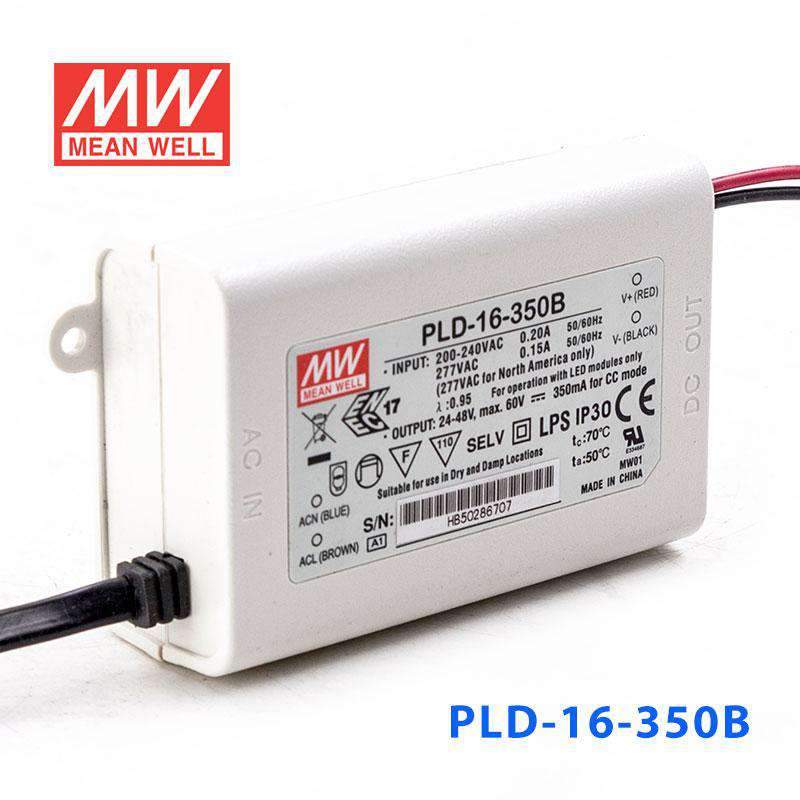

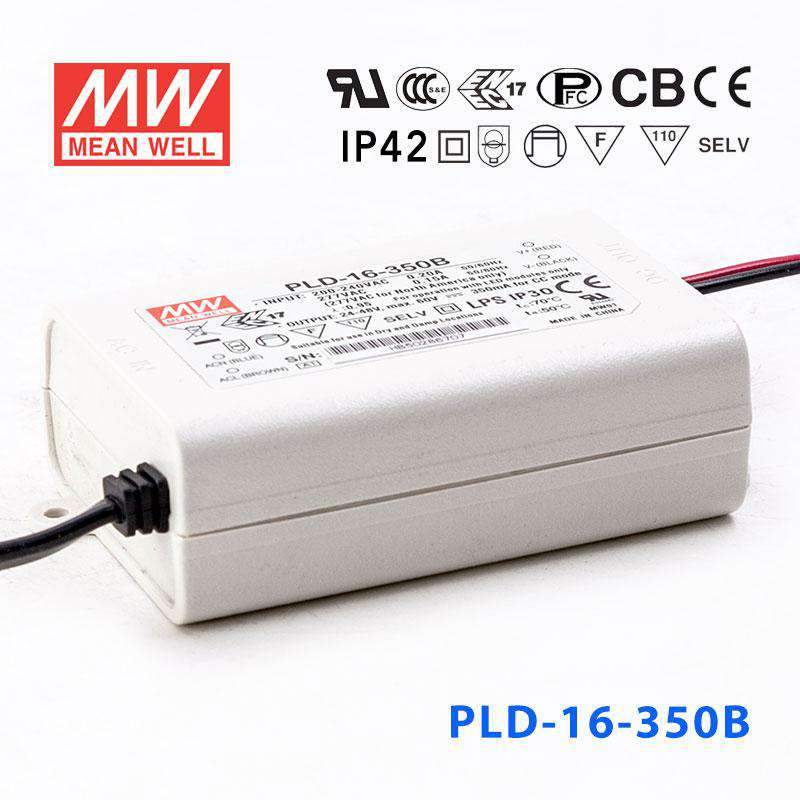

Mean Well PLD-16-350B Power Supply 16W 350mA

plastic caseIP42Class II design without FG
SKU PLD-16-350B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by PLD-25-350B
Available to order
|

Overview

PLD-16-350B is the model of this series: rated current 350mA, rated power 16.8W, typical efficiency 84.5%. Type B: With AC input 180~ 295VAC.

Features

  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class 2 Power Unit
  • Class Ⅱ power unit, no FG
  • IP42 design
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-16-350BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
350mA
OPERATING VOLTAGE RANGE
24 ~ 48V
CURRENT ACCURACY
±5.0%
RATED POWER
16.8W
RIPPLE & NOISE (max.)Note.1
4.6Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
60V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.) A series
84.5%
EFFICIENCY (Typ.) B series
85.5%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.)
COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT

MODEL ENCODING

A
With AC input 90~ 135VAC
B (this model)
With AC input 180~ 295VAC
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-16-350B Mechanical Specification
Mechanical Specification
PLD-16-350B Block Diagram
Block Diagram
PLD-16-350B Power Factor Characteristic
Power Factor Characteristic
PLD-16-350B EFFICIENCY vs LOAD (PLD-16-350)
EFFICIENCY vs LOAD (PLD-16-350)

Downloads

FAQ

Can I use the PLD-16-350B for a 350mA LED downlight?

Yes, if the downlight requires a constant current driver rated at 350mA and its LED load operates within the 24-48V constant current range. This model delivers up to 16.8W, so it is intended for lower-power downlight assemblies within that range. It is a constant current driver, not a constant voltage power supply.

Is the PLD-16-350B suitable for LED signage modules?

It can be suitable for signage modules that are designed to run from a 350mA constant current source and fall within the 24-48V CC output range. It is not the right choice for signage modules that expect a fixed constant voltage supply such as 12V or 24V constant voltage input. The total load also needs to stay within the 16.8W rating.

Can this driver power a small LED array for architectural or display lighting?

Yes, for a small LED array built for 350mA constant current operation and a combined forward voltage within 24-48V. The exact number of LEDs depends on the forward voltage of each LED, not on a fixed LED count. Its 16.8W output makes it appropriate for modest constant current arrays rather than larger assemblies.

How do I know if my LED load is compatible with the PLD-16-350B?

Your LED load should require 350mA constant current and operate within the driver's 24-48V constant current range. The number of LEDs you can run depends on each LED's forward voltage, so there is no single universal LED count. If your product expects constant voltage instead of constant current, this driver is not a match.

Can the PLD-16-350B be used in damp or exposed locations?

This driver has an IP42 rating, so it is better suited to protected indoor environments rather than exposed outdoor or washdown locations. Its operating temperature range is -30°C to +50°C, which supports use in a wide range of indoor conditions. IP42 is not a high-ingress-protection outdoor rating, and humidity should stay within 20-95% RH non-condensing.
