Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

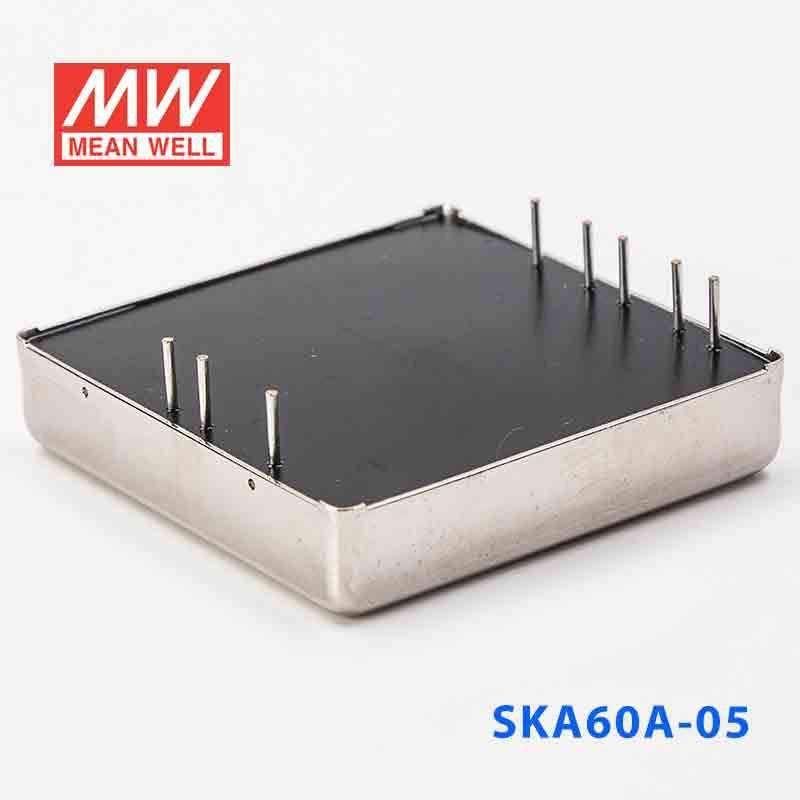

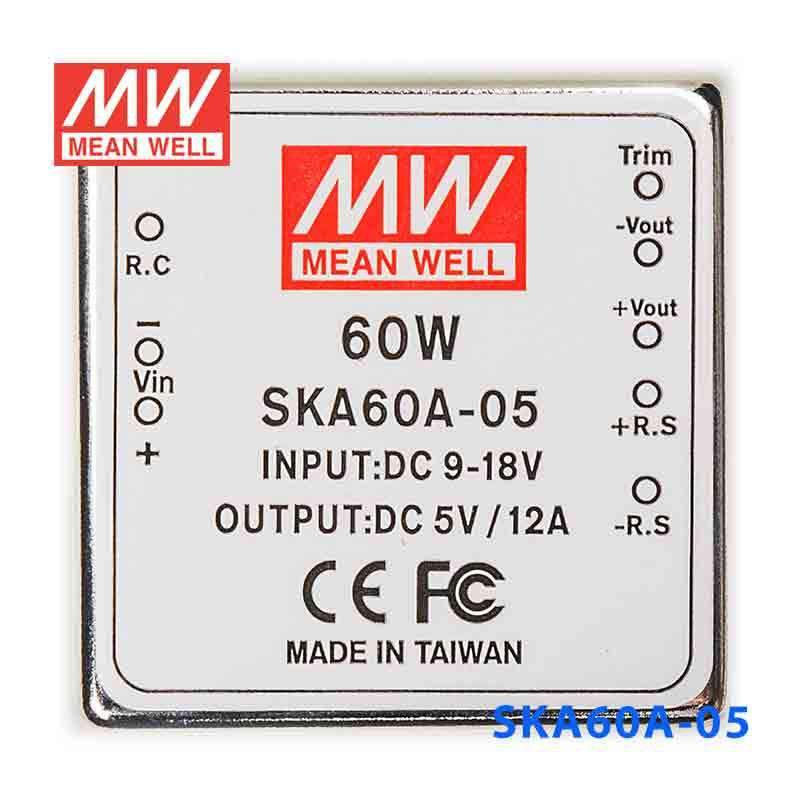

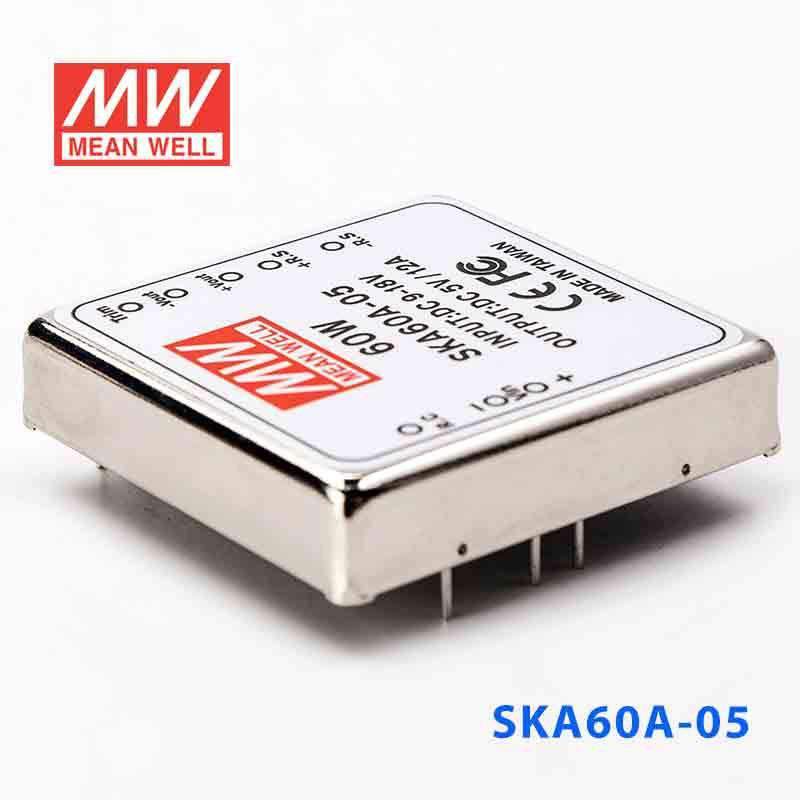

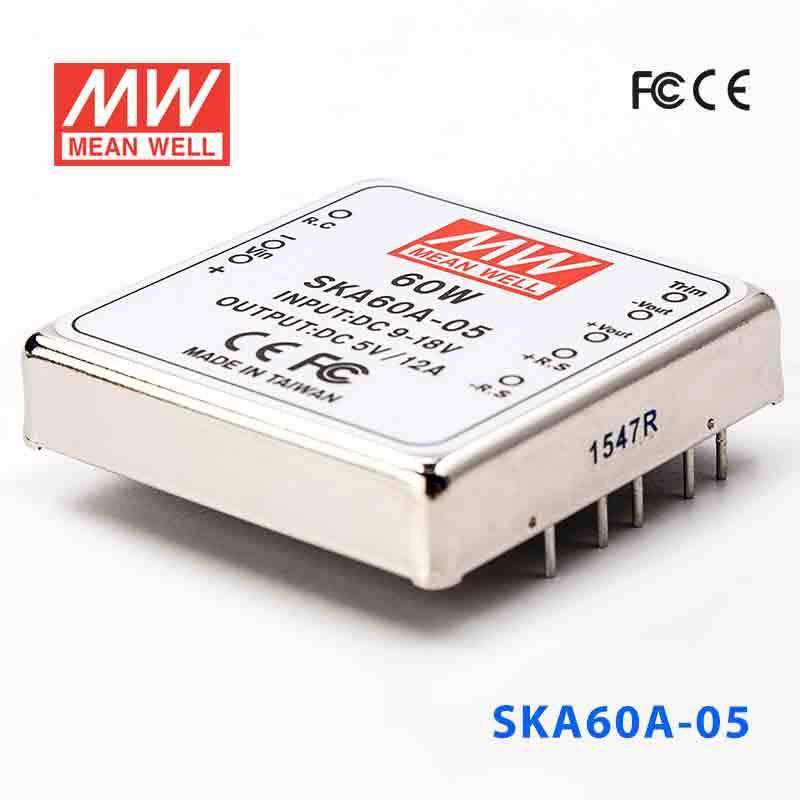

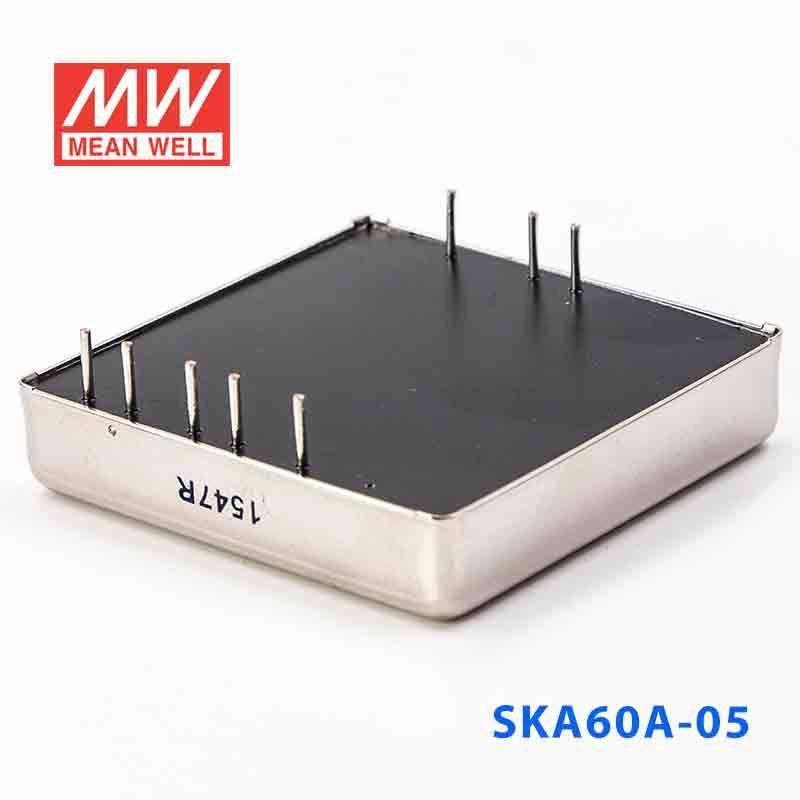

Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out

SKU:

SKA60A-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

5 Volt
Rated Current

12 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60A-05 to power a 5V embedded controller or single-board computer in an industrial system?

Yes. This model provides a constant-voltage 5V output with up to 12A and 60W, which fits 5V embedded controllers or single-board computers that need a stable 5V rail. The input range is 9-18VAC.

Is the SKA60A-05 suitable for 5V industrial logic, sensors, or control electronics?

It can be a fit for 5V industrial logic and other 5V control electronics because the output is regulated constant voltage at 5V. With 12A available and a 60W rating, it is better suited to higher-current 5V loads than lower-current variants in the same family.

Can this converter be used for 5V automation devices in compact control equipment?

Yes. The compact 50.8 x 50.8 x 11.0 mm form factor and 0.067 kg weight make it practical where space is limited. It is intended for 5V constant-voltage loads and accepts 9-18VAC input.

Is the SKA60A-05 appropriate for harsh-temperature environments?

The specified operating temperature range is -40C to +70C, so the temperature rating supports use in demanding indoor equipment or protected enclosures. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not established by this data alone.

How does the SKA60A-05 compare with the other SKA60A models?

All three SKA60A models are rated for 60W. The SKA60A-05 outputs 5V at 12A, the SKA60A-12 outputs 12V at 5A, and the SKA60A-15 outputs 15V at 4A, and all use the same 9-18VAC input range.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out	60W	12V	5A	Indoor	View
