Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

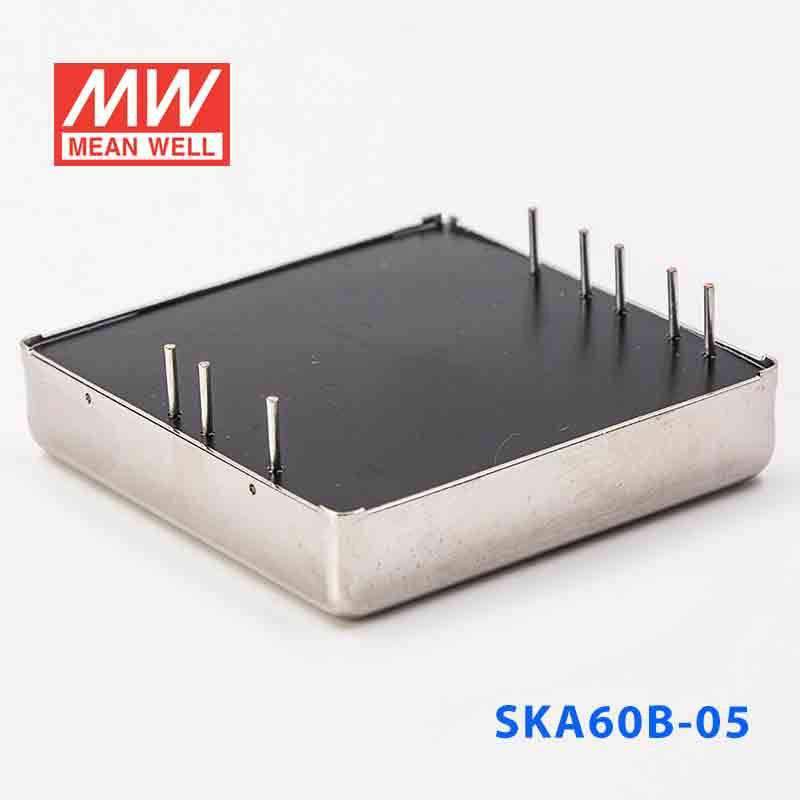

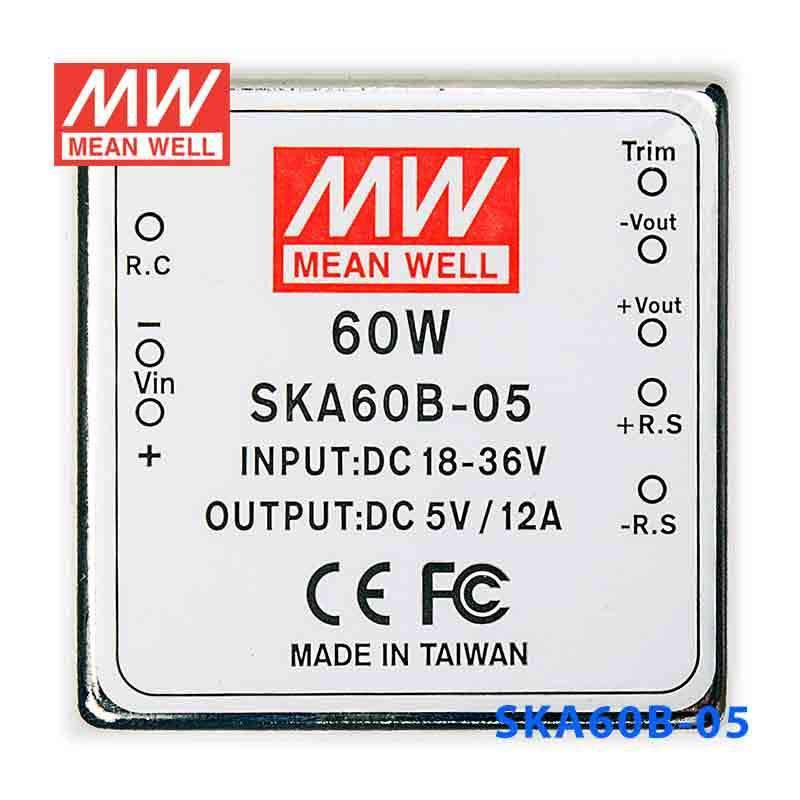

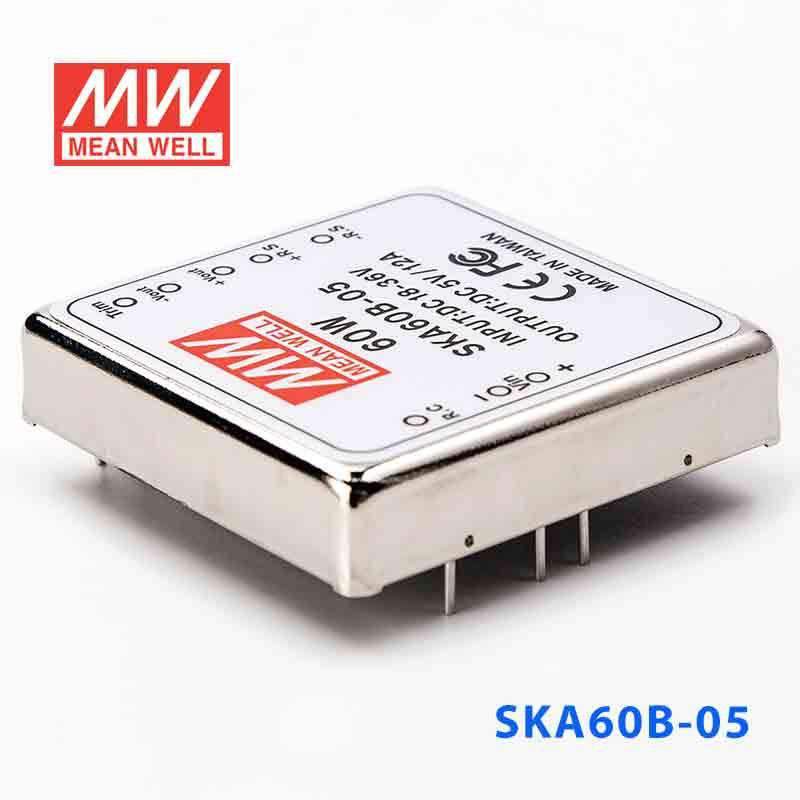

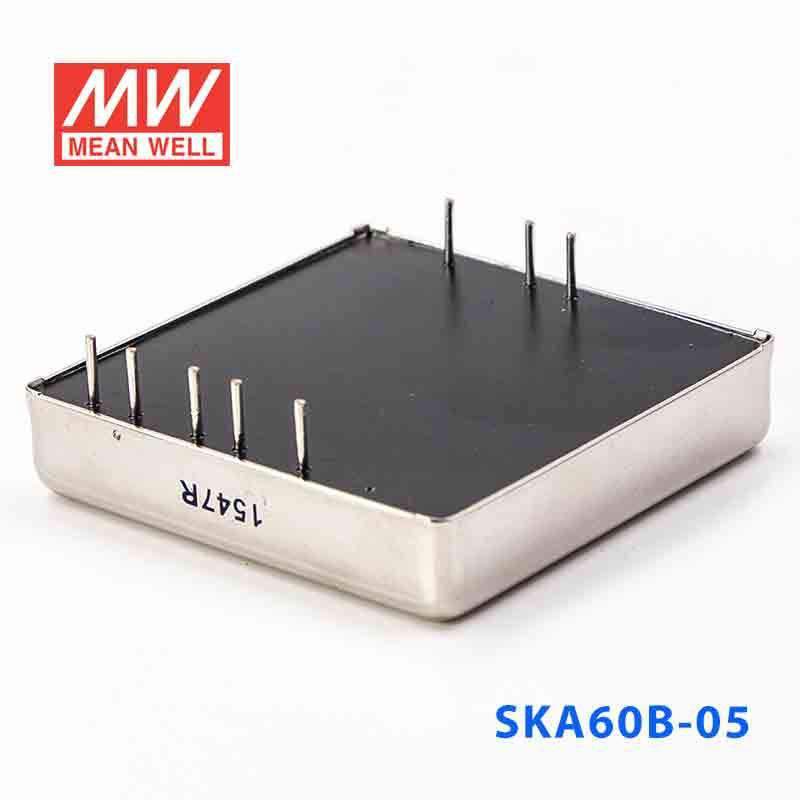

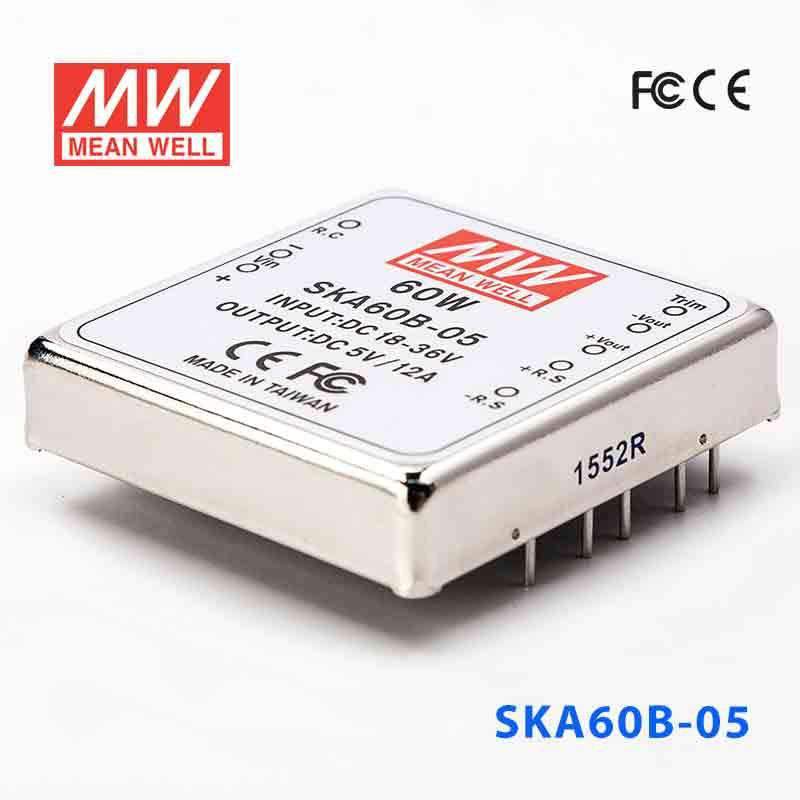

Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out

SKU:

SKA60B-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

5 Volt
Rated Current

12 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60B-05 to power 5V embedded computing or control hardware from an 18-36VAC source?

Yes. The SKA60B-05 is rated for 18-36VAC input and provides a constant 5V output up to 12A and 60W. That makes it suitable for 5V embedded computing or control hardware that needs higher 5V current capacity.

Is this model appropriate for 5V industrial communication or logic electronics?

It can be a fit for 5V communication or logic electronics because the output is regulated constant voltage at 5V. With 12A output current and 60W total power, it supports higher-current 5V loads in systems using 18-36VAC input.

Can the SKA60B-05 be used in compact automation equipment with limited space?

Yes. The converter measures 50.8 x 50.8 x 11.0 mm and weighs 0.067 kg, so it is compact for space-constrained automation assemblies. It is designed for 5V constant-voltage output applications.

Is the SKA60B-05 suitable for cold or hot operating environments?

The specified operating temperature range is -40C to +70C, so the thermal rating covers a wide range of conditions. The provided specs do not list an IP rating, so resistance to rain, dust ingress, or washdown is not established here.

What are the differences between SKA60B-05 and the other SKA60B models?

The SKA60B-05 is the 5V version in the 60W SKA60B family and is rated for 12A output. The sibling models are SKA60B-12 at 12V and 5A and SKA60B-15 at 15V and 4A, and all three use 18-36VAC input.
