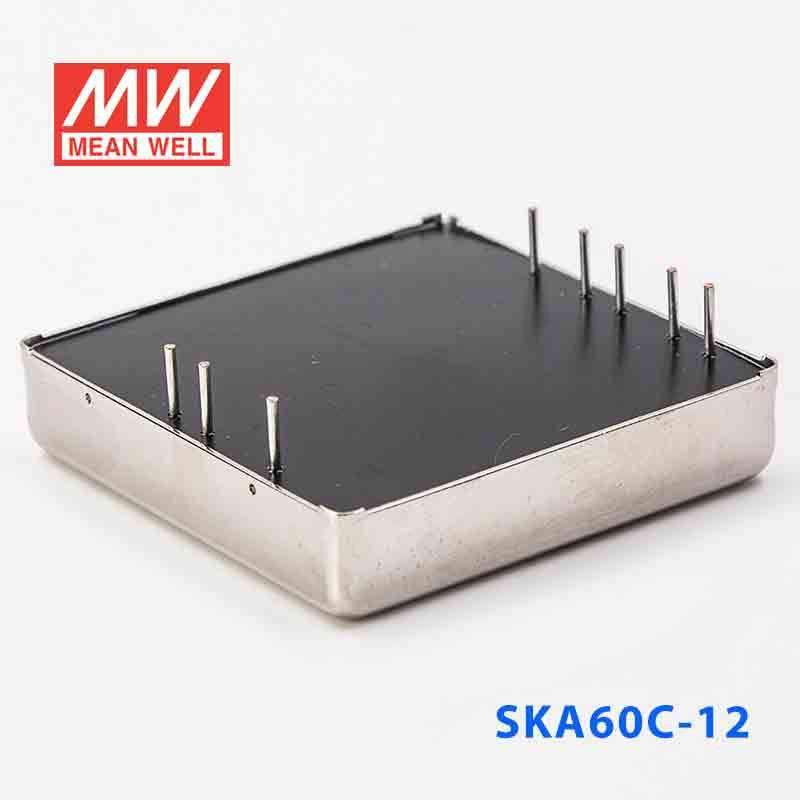

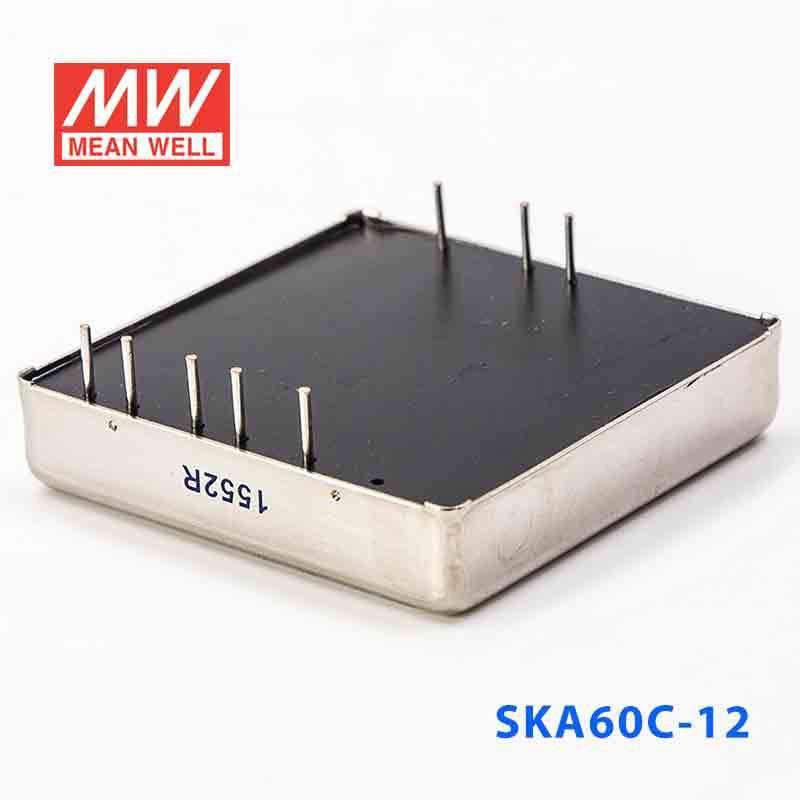

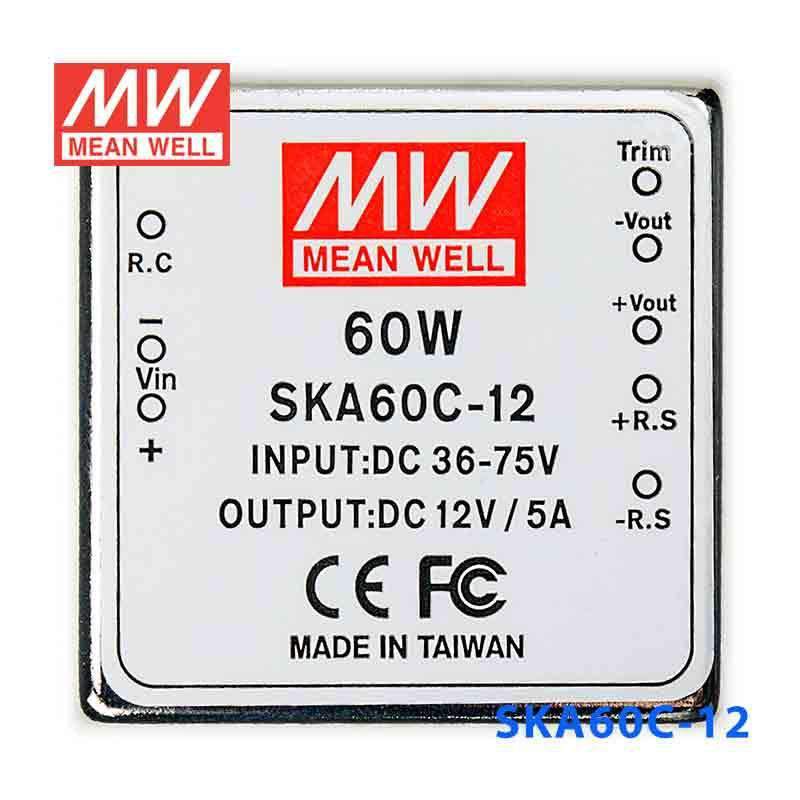

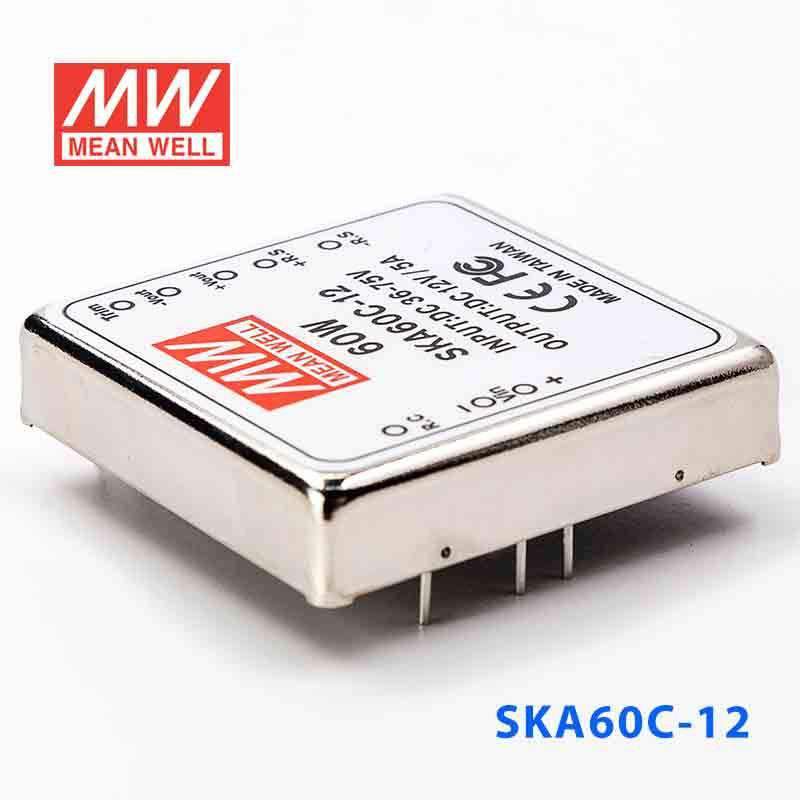

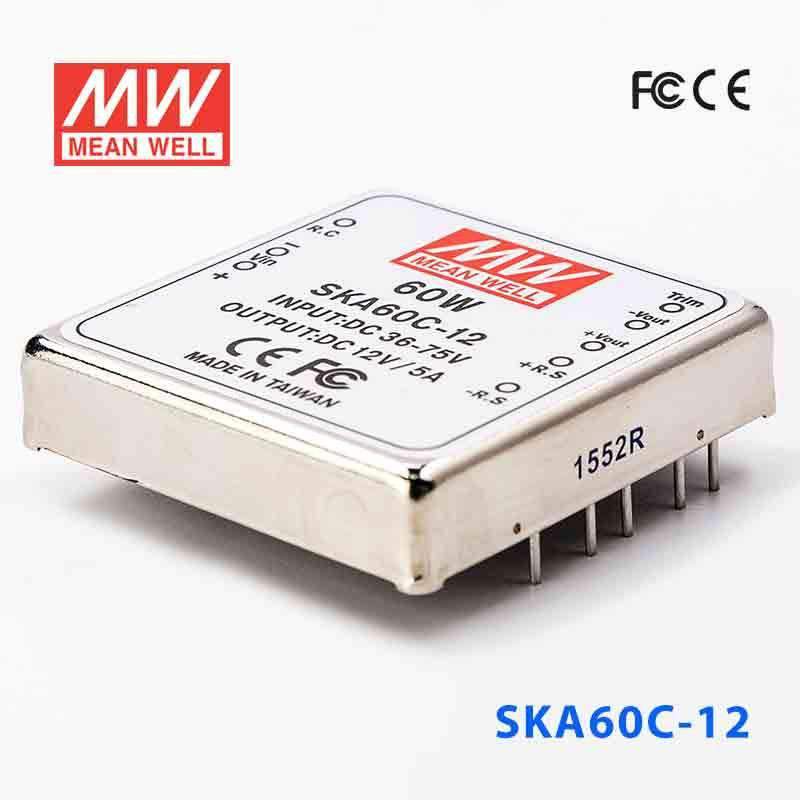

Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out
Please Login for Pricing
Description
Description
The SKA60C is a 60W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height1.1 cm
-
Weight0.07 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA60C-12 to power 12V automation devices from a 36-75V source?
Yes. The SKA60C-12 is a constant-voltage converter rated for 12V output, 5A output current, and 60W total power. It is intended for systems that need regulated 12V power from a 36-75V input range.
Is the SKA60C-12 suitable for industrial sensors, relays, or control accessories that run on 12V?
It can be suitable when those devices need a steady 12V supply and the total load stays within 5A. The 60W rating supports moderate 12V loads in embedded or automation assemblies. Buyers should size the connected load against the 12V, 5A output limit.
Can this model be used for 12V embedded systems inside equipment with higher input voltage?
Yes. Its role is to convert a 36-75V input to a regulated 12V constant-voltage output. That makes it relevant for embedded or industrial electronics that need a 12V rail while the source voltage is substantially higher.
Is the SKA60C-12 appropriate for outdoor equipment cabinets?
The product is specified for -40°C to +70°C operation, which supports wide-temperature equipment environments. However, no IP rating is listed in the provided specs, so weather and ingress exposure are not defined here. It is better matched to protected enclosures where environmental sealing is handled by the cabinet or housing.
How does the SKA60C-12 compare with the other SKA60C output options?
The listed SKA60C family shares the same 60W power class and 36-75V input range. The SKA60C-05 is rated at 5V and 12A, the SKA60C-12 is rated at 12V and 5A, and the SKA60C-15 is rated at 15V and 4A. The difference is the output rail each model is designed to provide.
Other SKA60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out | 60W | 15V | 4A | Indoor | View |
| Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out | 60W | 5V | 12A | Indoor | View |
| Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out | 60W | 15V | 4A | Indoor | View |
| Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out | 60W | 12V | 5A | Indoor | View |
| Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out | 60W | 5V | 12A | Indoor | View |
| Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out | 60W | 15V | 4A | Indoor | View |
| Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out | 60W | 12V | 5A | Indoor | View |
| Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out | 60W | 5V | 12A | Indoor | View |
