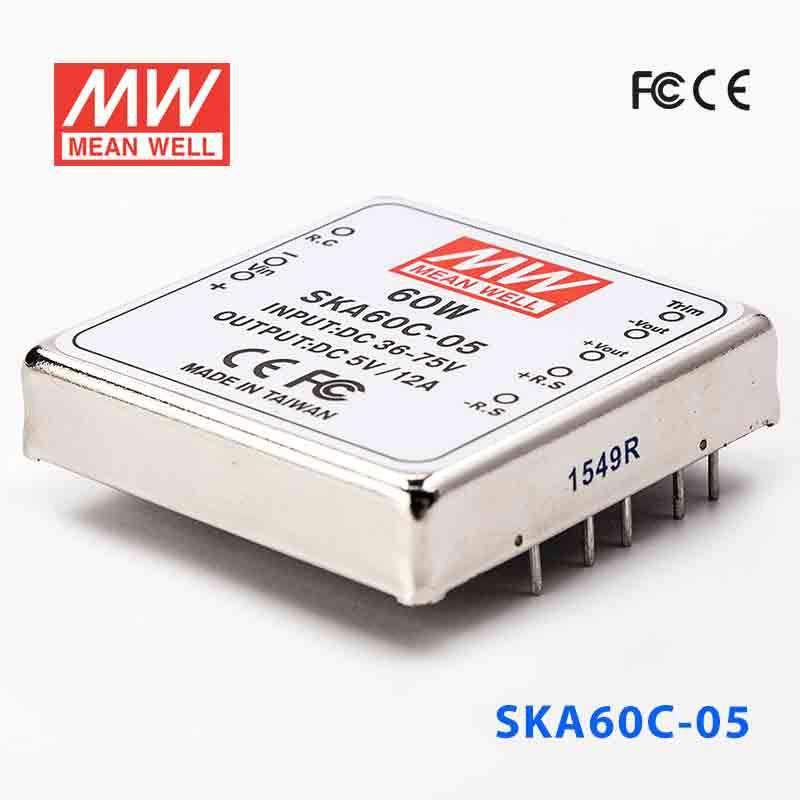

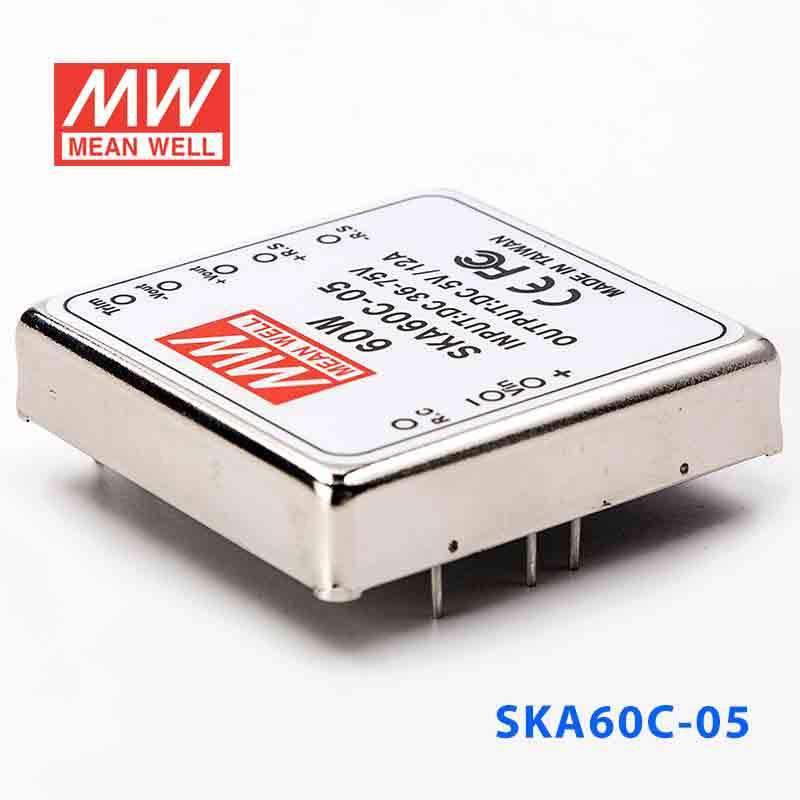

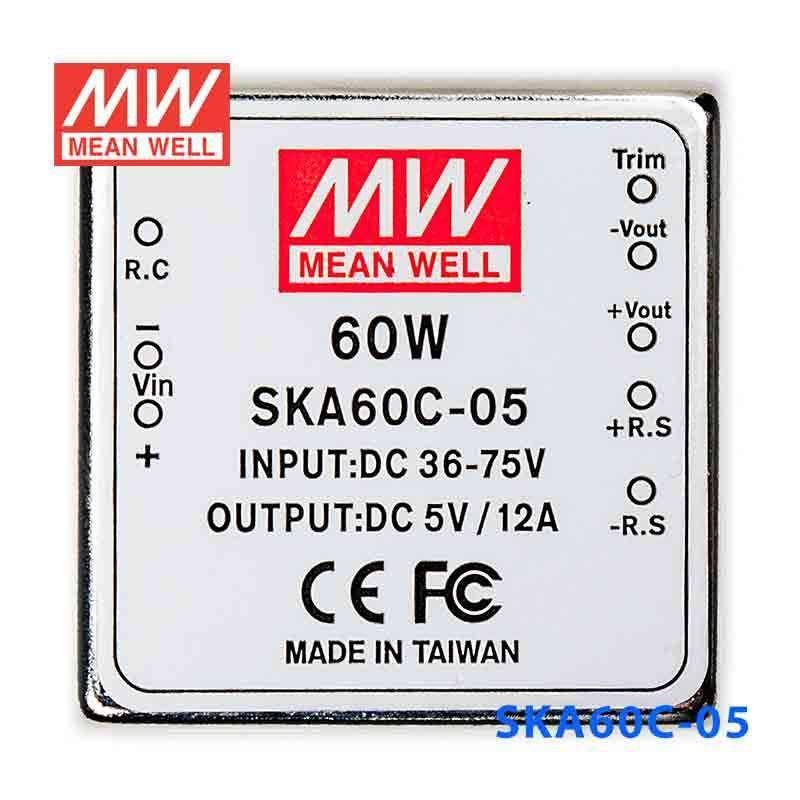

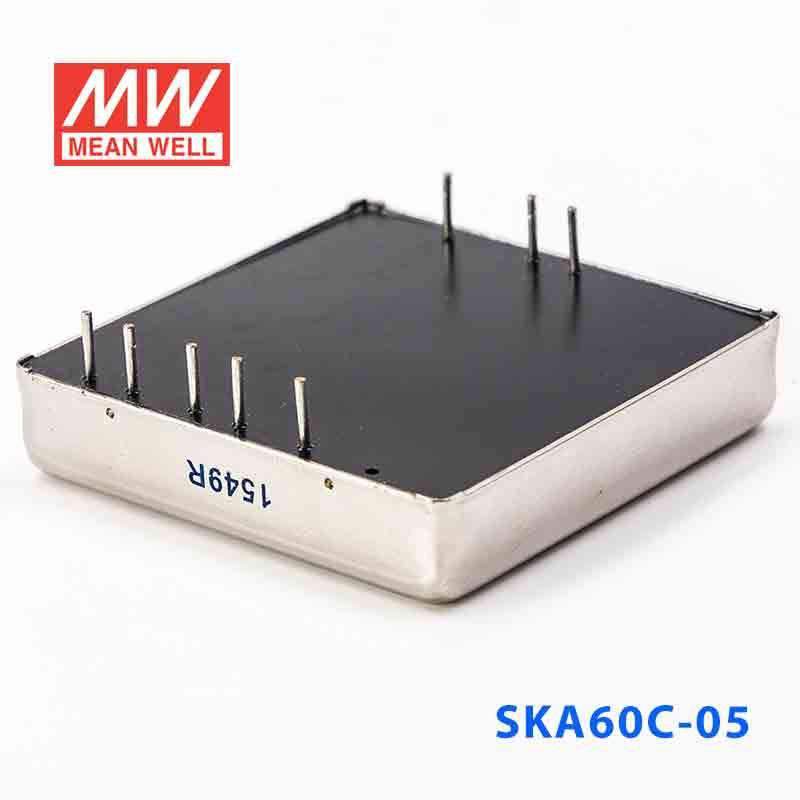

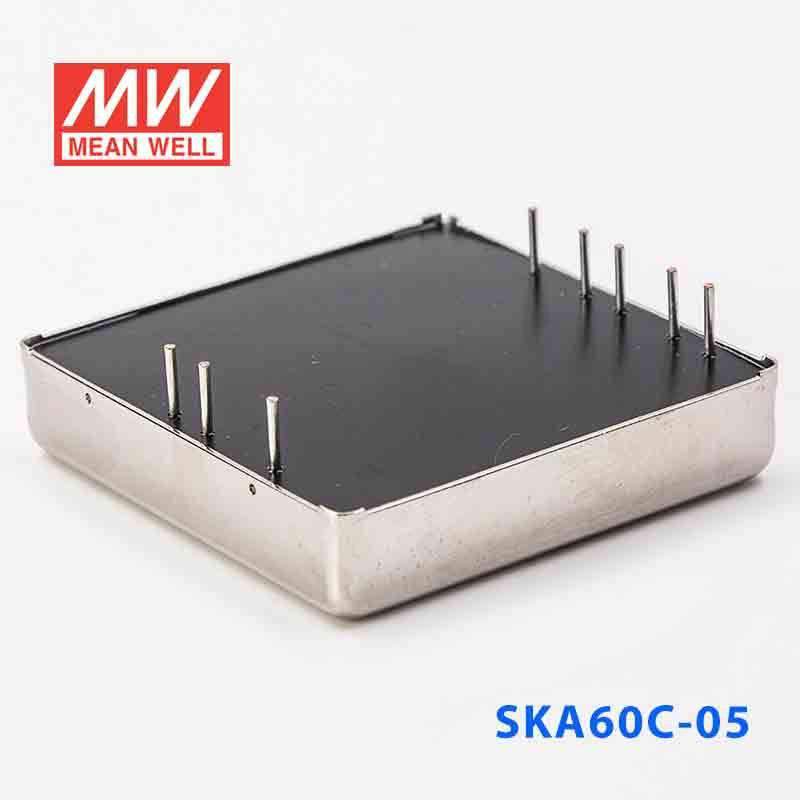

Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out

SKU:

SKA60C-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

5 Volt
Rated Current

12 Ampere
Input Voltage

36V~75V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60C-05 to supply 5V logic or embedded electronics from a 36-75V source?

Yes. This model provides constant 5V output with up to 12A output current and is rated for 60W. It is designed for applications that need a regulated 5V rail from a 36-75V input range.

Is the SKA60C-05 a good fit for industrial controllers or communication hardware that need higher-current 5V power?

It can be a fit when the load requires 5V and stays within 12A. That higher 12A output makes it more suitable for heavier 5V loads than the 12V or 15V versions in the same 60W family. The converter operates in constant-voltage mode for stable 5V output.

Can this converter support 5V devices in automation systems with a 36-75V input range?

Yes, that is the use case this model is aligned with. The 36-75V input range and 5V, 12A output make it suitable where the upstream system voltage is higher but the downstream electronics require regulated 5V power. The total output capability is 60W.

Will the SKA60C-05 work in hot or cold industrial environments?

The operating temperature range is -40°C to +70°C, which supports use in demanding indoor equipment environments. No IP rating is listed in the provided specs, so the temperature range is the main environmental rating available. For exposed outdoor conditions, enclosure-level protection would need to be provided separately.

What is the difference between the SKA60C-05 and the other SKA60C versions?

All listed SKA60C models are rated at 60W and use a 36-75V input range. The SKA60C-05 outputs 5V at 12A, the SKA60C-12 outputs 12V at 5A, and the SKA60C-15 outputs 15V at 4A. The selection point is the required output voltage and current at the same 60W class.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out	60W	5V	12A	Indoor	View
