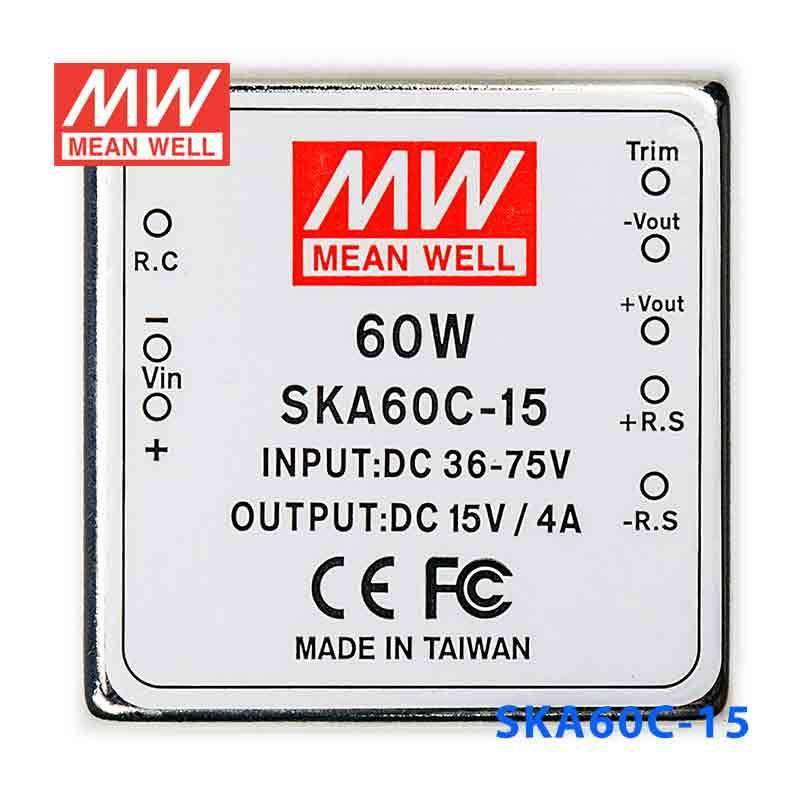

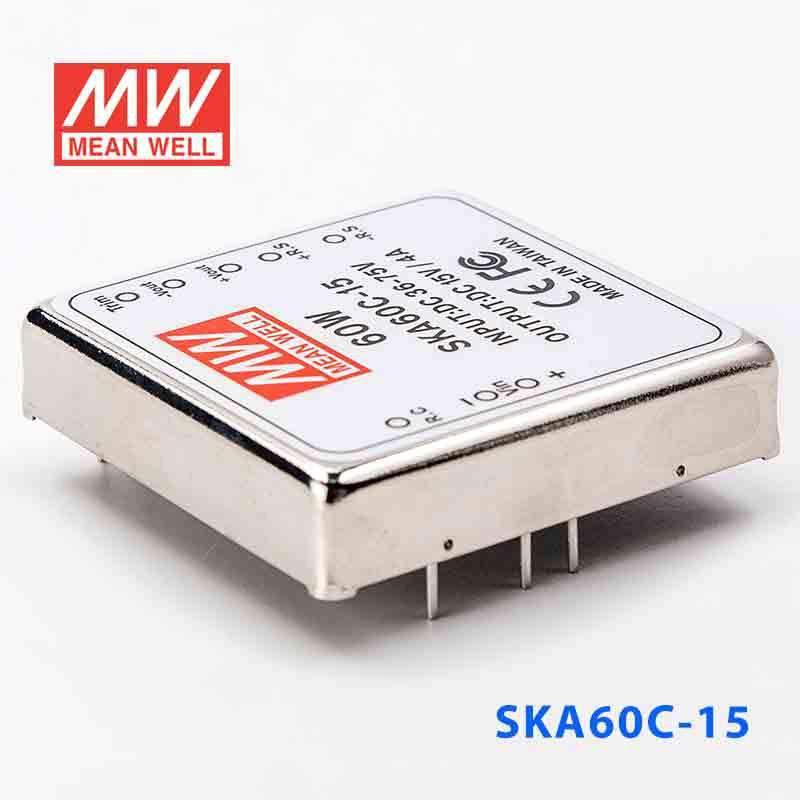

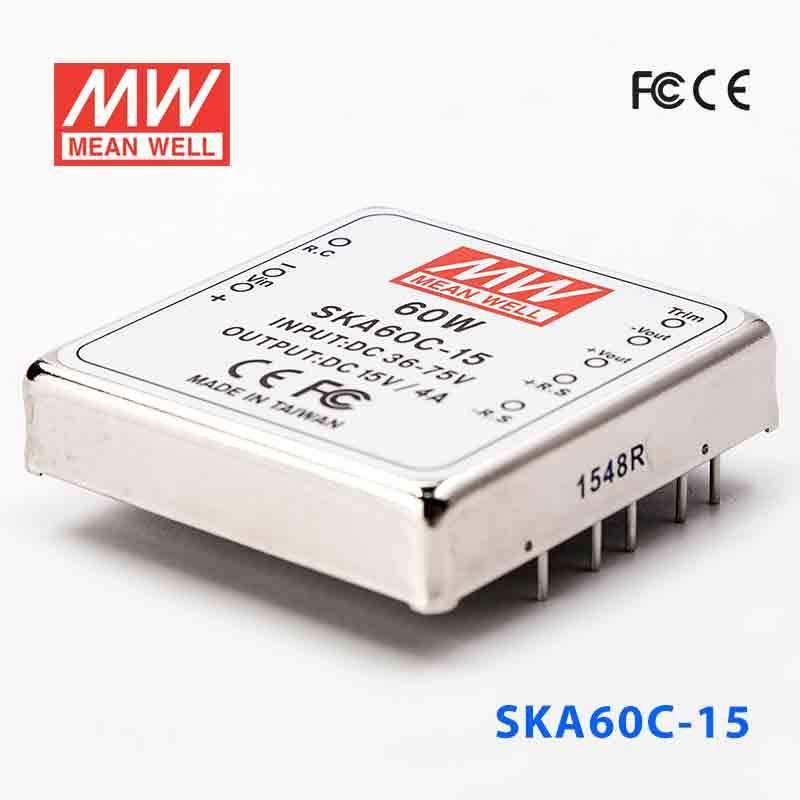

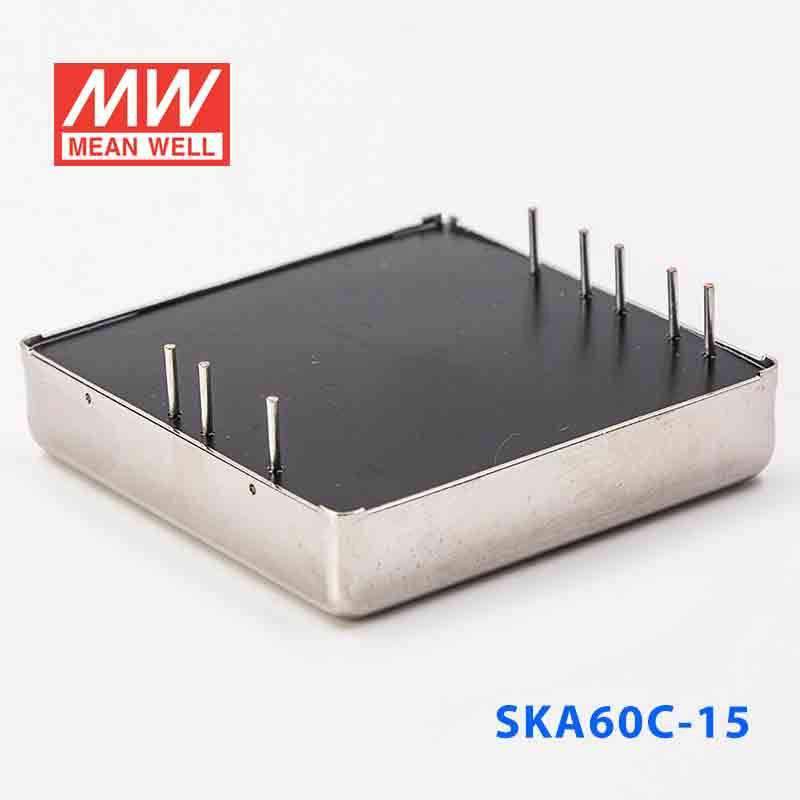

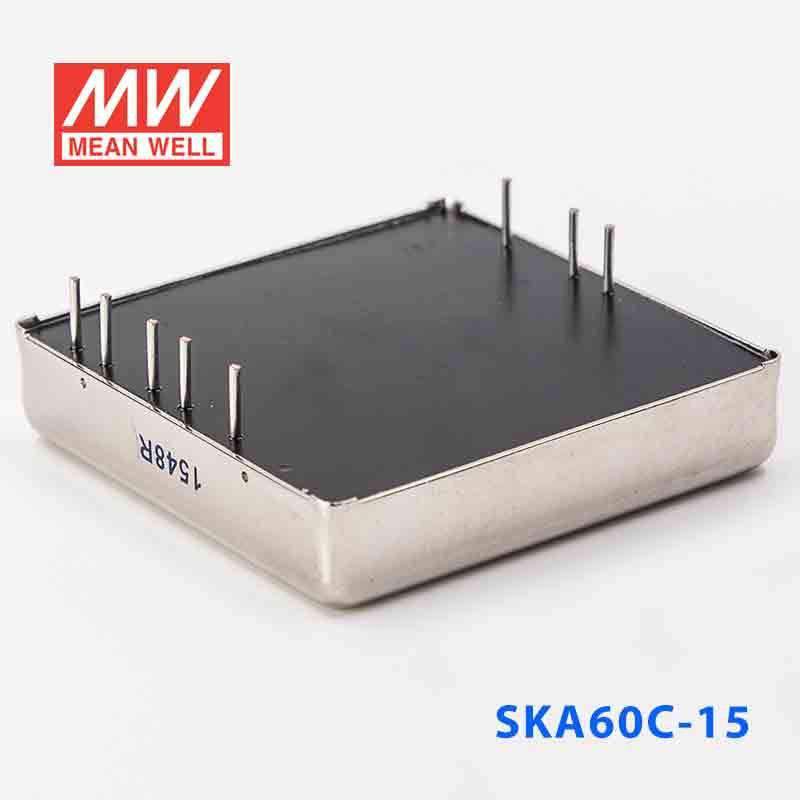

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out

SKU:

SKA60C-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

15 Volt
Rated Current

4 Ampere
Input Voltage

36V~75V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60C-15 for 15V industrial or embedded equipment powered from 36-75V?

Yes. This converter provides constant 15V output at up to 4A and is rated for 60W. It is intended for systems that need a regulated 15V rail from a 36-75V input range.

Is the SKA60C-15 suitable for instrumentation or control electronics that require 15V constant voltage?

It can be, as long as the connected load stays within 4A at 15V. The constant-voltage operating mode is appropriate for equipment designed around a fixed 15V supply. Its 60W rating places it in a mid-power range for industrial and embedded electronics.

Can this converter support 15V subsystems in automation equipment with wide input variation?

Yes. The specified input range is 36-75V, while the output remains a regulated 15V. That makes it relevant for automation subsystems that must derive a stable 15V rail from a broader upstream voltage range.

Can the SKA60C-15 be used in harsh temperature conditions?

The rated operating temperature is -40°C to +70°C, which supports use in demanding equipment environments. The provided specs do not include an IP rating, so dust and water exposure are not defined by this listing. In practice, it is better suited to protected indoor housings or sealed system enclosures.

What are the differences between the SKA60C-15 and its SKA60C siblings?

All listed SKA60C models use a 36-75V input range and are rated at 60W. The SKA60C-05 outputs 5V at 12A, the SKA60C-12 outputs 12V at 5A, and the SKA60C-15 outputs 15V at 4A. The choice depends on which regulated output voltage your equipment requires.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out	60W	5V	12A	Indoor	View
