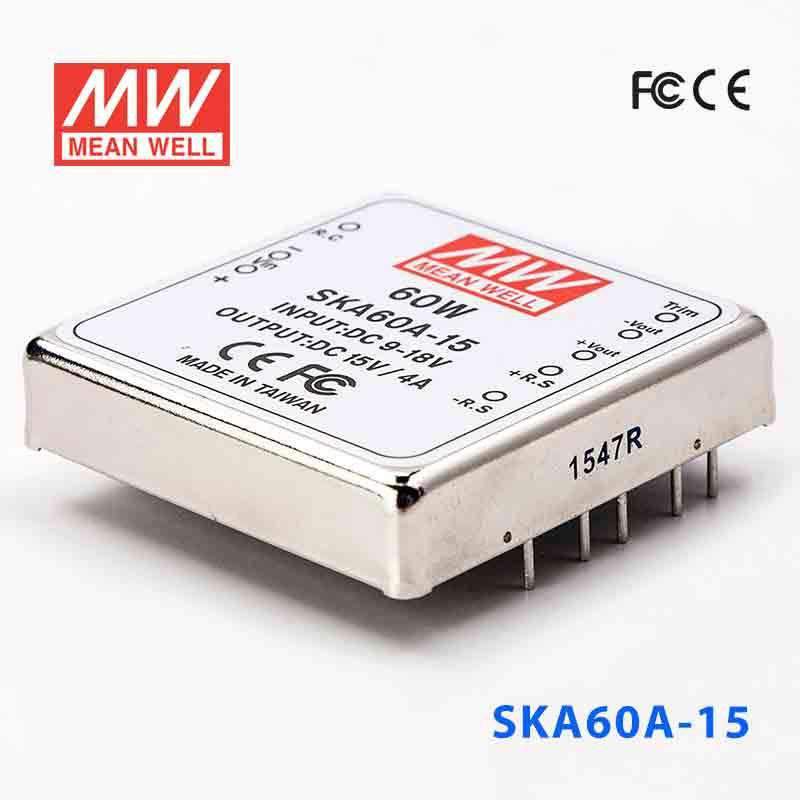

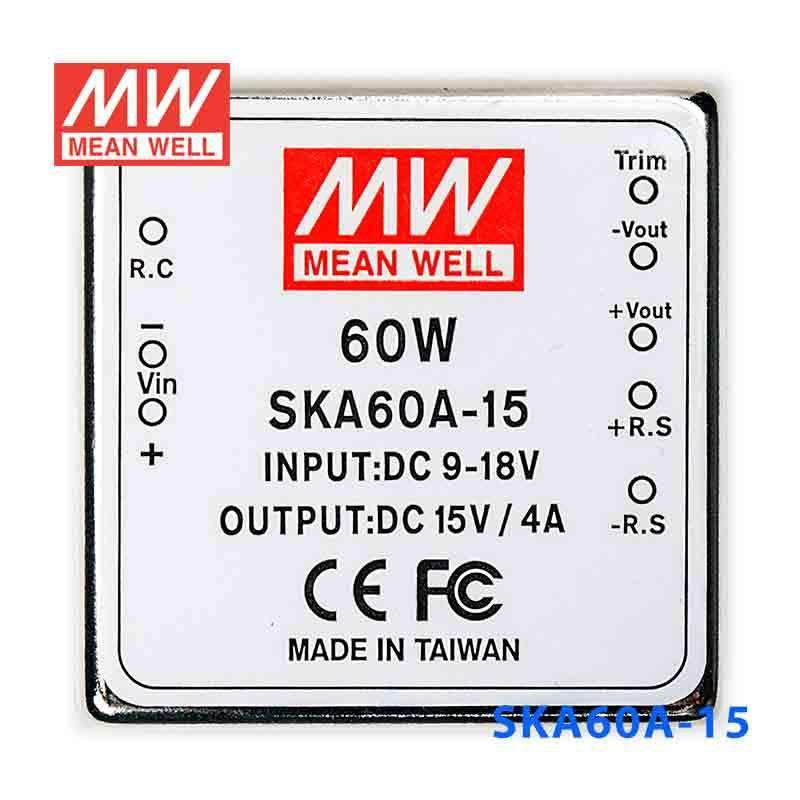

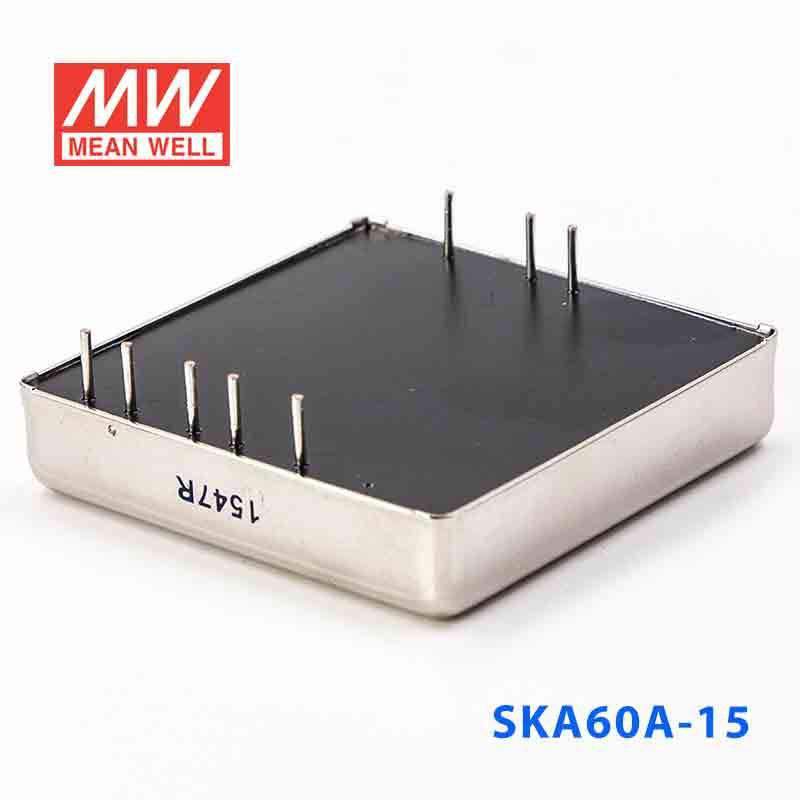

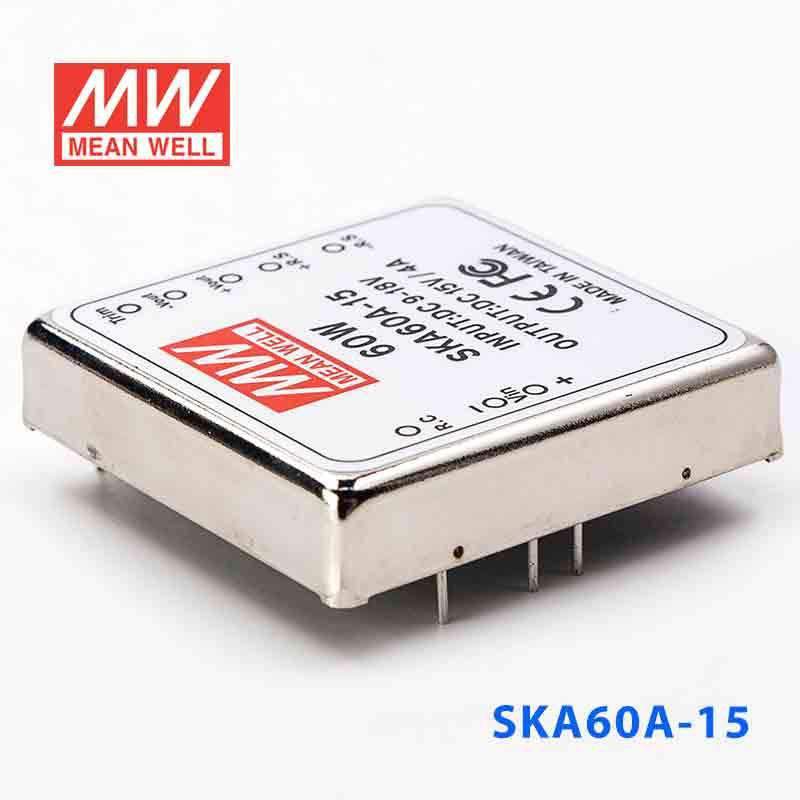

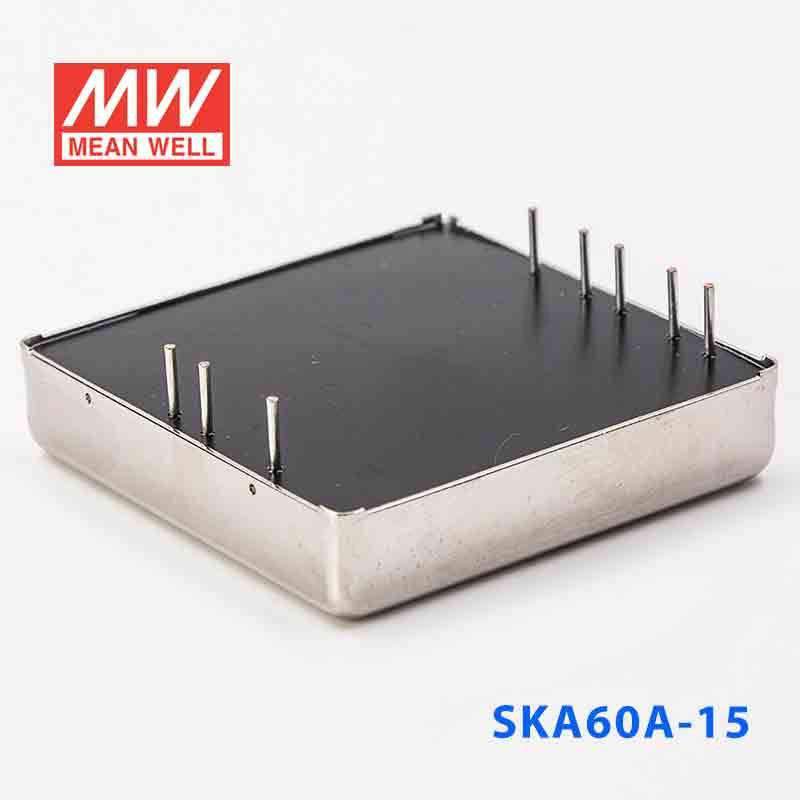

Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out

SKU:

SKA60A-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

15 Volt
Rated Current

4 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60A-15 for 15V analog, sensor, or instrumentation circuits?

Yes. This converter provides a constant-voltage 15V output and is rated for up to 4A and 60W, which makes it suitable for 15V instrumentation or analog control loads within that range. The specified input range is 9-18VAC.

Is the SKA60A-15 suitable for 15V industrial control modules?

It can be used where the module requires regulated 15V constant voltage. The output rating is 15V at 4A with 60W total power, so the load needs to stay within those limits. Input must be within 9-18VAC.

Can this converter power 15V embedded or automation electronics in a compact enclosure?

Yes. The package measures 50.8 x 50.8 x 11.0 mm and weighs 0.067 kg, so it is compact for dense equipment layouts. Electrically, it is intended for 15V constant-voltage loads and provides up to 4A.

Is the SKA60A-15 suitable for outdoor or temperature-challenging environments?

The operating temperature is rated from -40C to +70C, so the temperature specification is broad. However, no IP rating is listed in the provided specs, so outdoor exposure protection is not defined by this product data.

How does SKA60A-15 compare with SKA60A-05 and SKA60A-12?

All three SKA60A models are 60W converters with 9-18VAC input. The SKA60A-15 outputs 15V at 4A, while the SKA60A-12 outputs 12V at 5A and the SKA60A-05 outputs 5V at 12A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out	60W	5V	12A	Indoor	View
