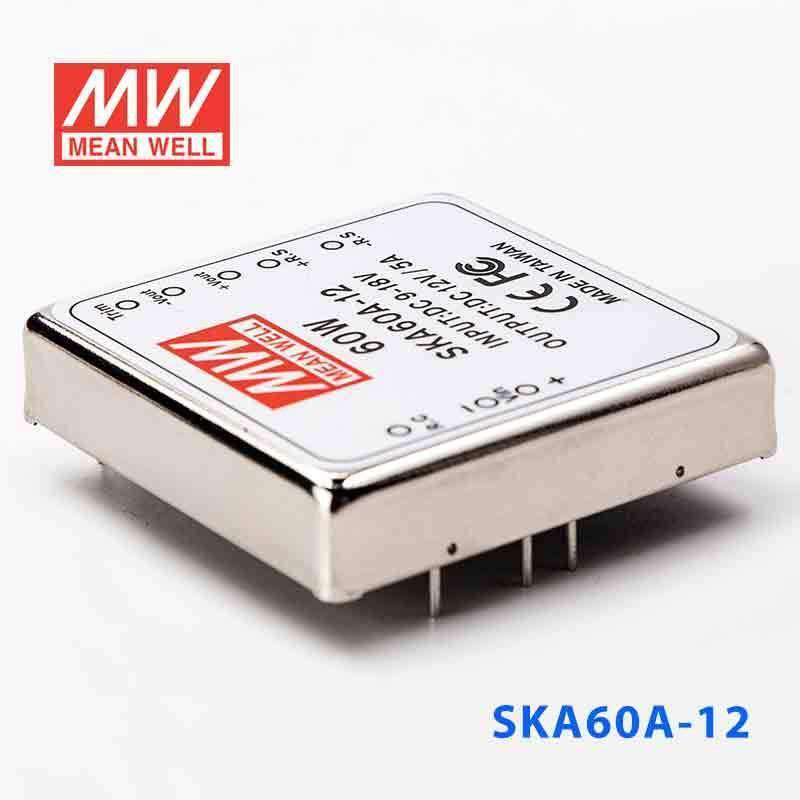

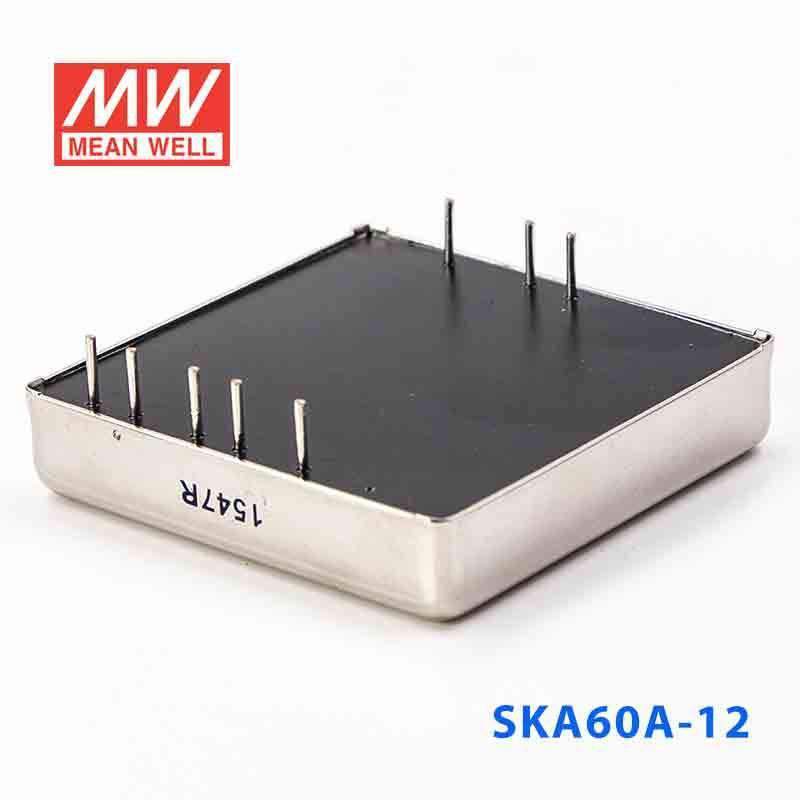

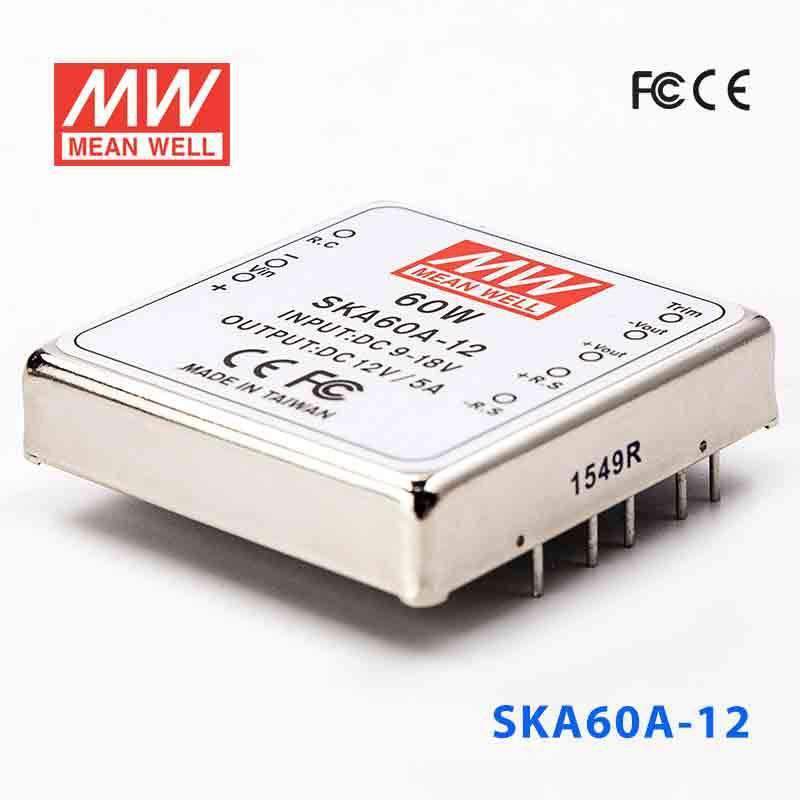

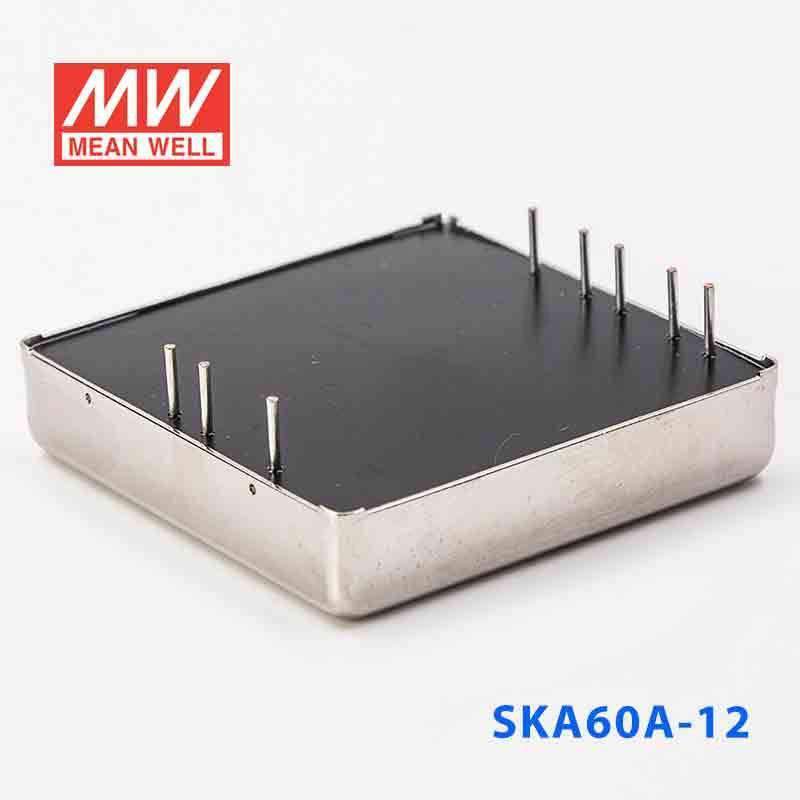

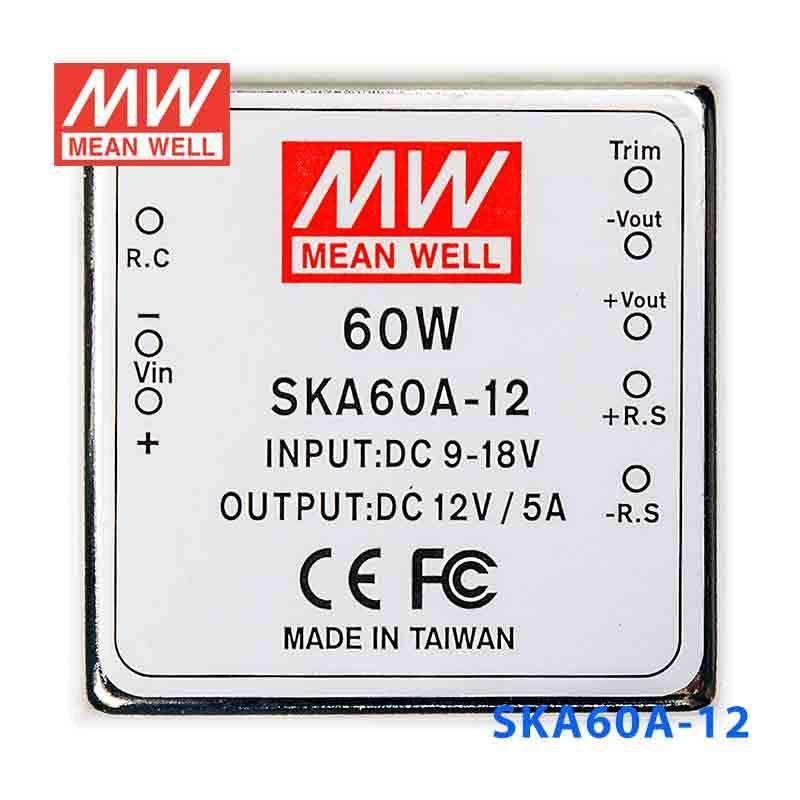

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out

SKU:

SKA60A-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60A-12 for 12V PLC, HMI, or panel control devices?

Yes, if the load requires regulated 12V constant voltage. This model delivers 12V output up to 5A with a 60W rating, and it accepts 9-18VAC input. That makes it suitable for many 12V control and automation devices within that power range.

Is the SKA60A-12 a good fit for 12V industrial relays, indicators, and auxiliary controls?

It is intended for 12V constant-voltage loads, so it can be used for 12V relay circuits, indicators, and auxiliary control electronics when the total demand stays within 5A and 60W. The regulated 12V output is the key match for those applications.

Can this model power 12V instrumentation or monitoring electronics from a 9-18VAC source?

Yes. The unit is specified for 9-18VAC input and provides a constant 12V output. With up to 5A available, it fits 12V monitoring or instrumentation loads that need regulated 12V power.

Will the SKA60A-12 handle cold or high-heat operating conditions?

The published operating temperature range is -40C to +70C, which supports use across a wide temperature span. The product data provided does not include an IP rating, so exposure resistance for outdoor or wet locations is not defined here.

What is the difference between SKA60A-12 and the other SKA60A versions?

The SKA60A-12 is the 12V version of the 60W SKA60A series and is rated for 5A output. The sibling models are SKA60A-05 at 5V and 12A, and SKA60A-15 at 15V and 4A, with the same 9-18VAC input range.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out	60W	5V	12A	Indoor	View
