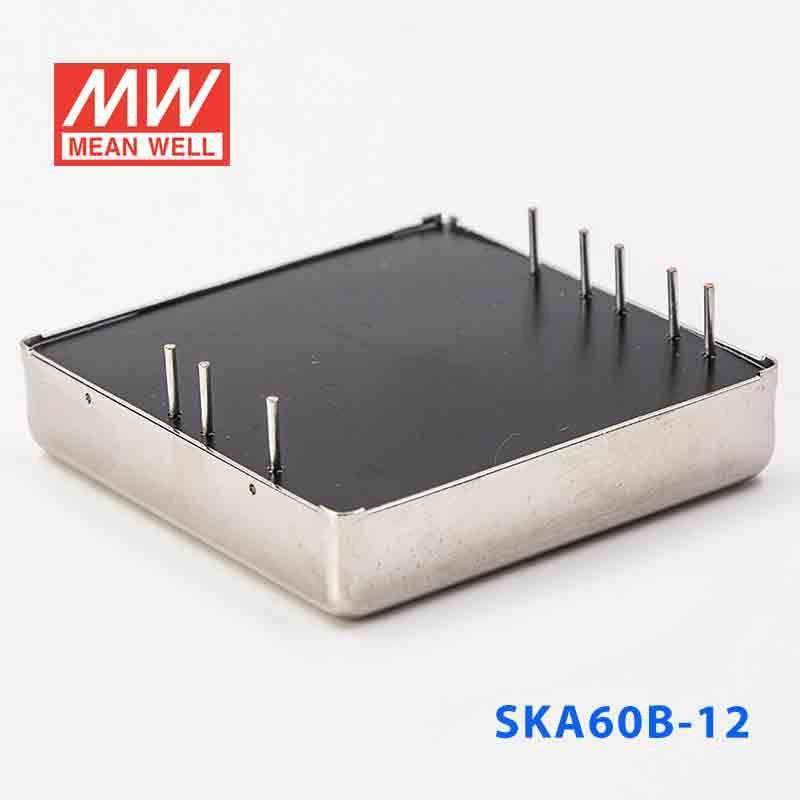

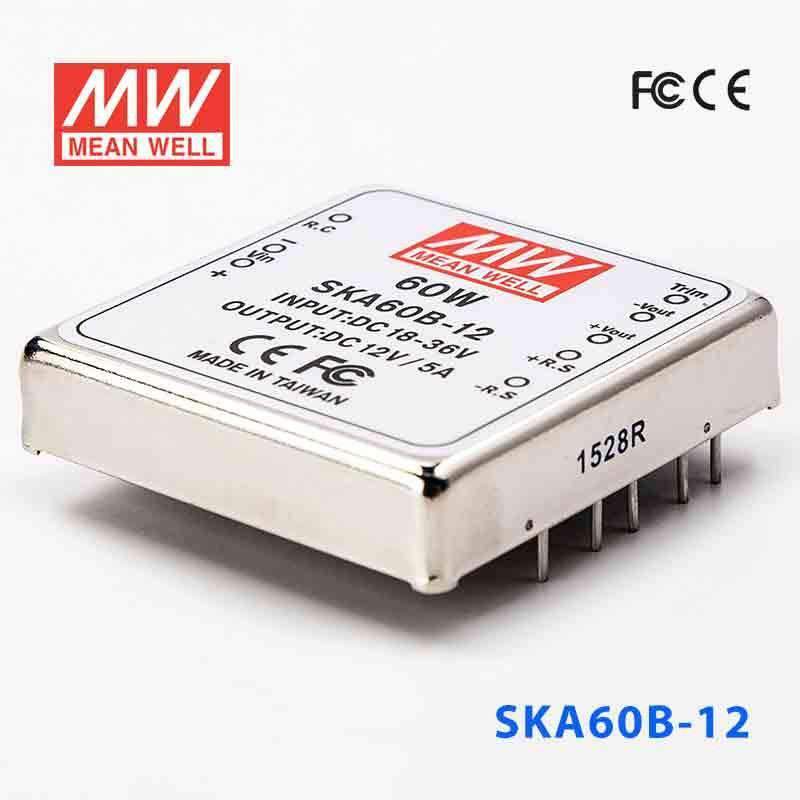

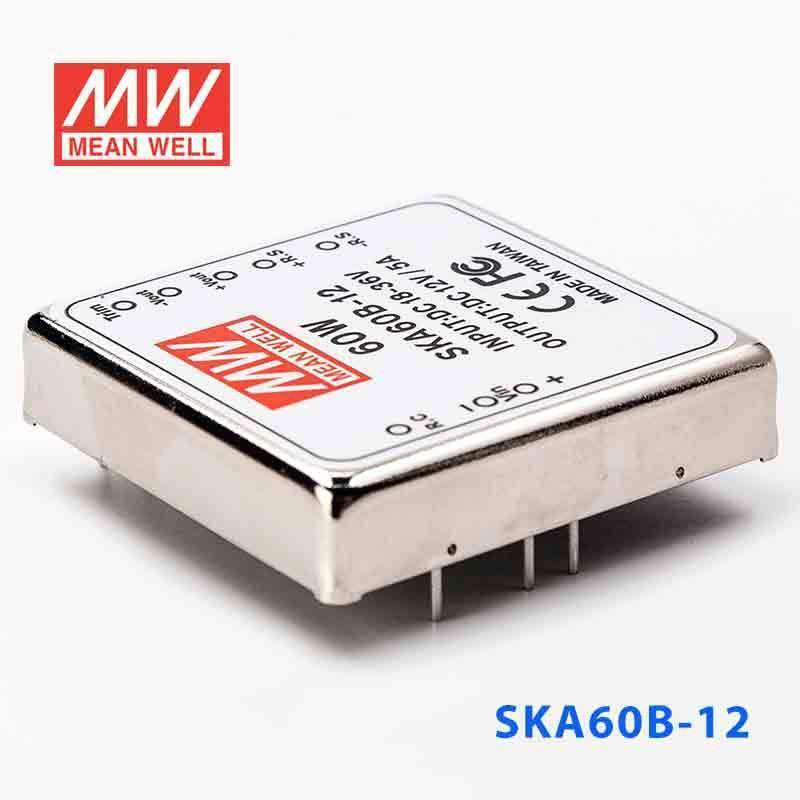

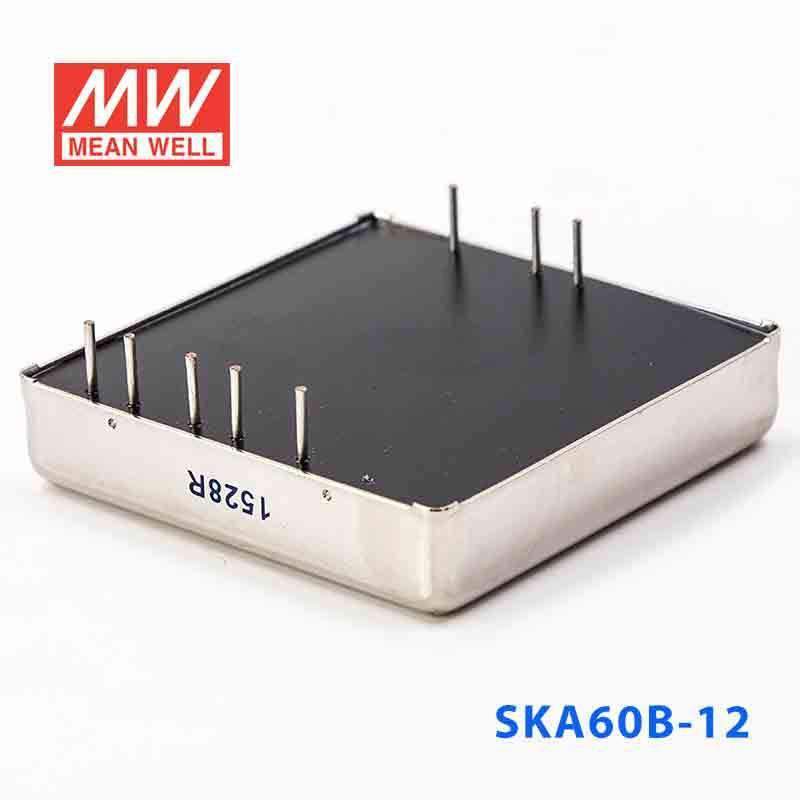

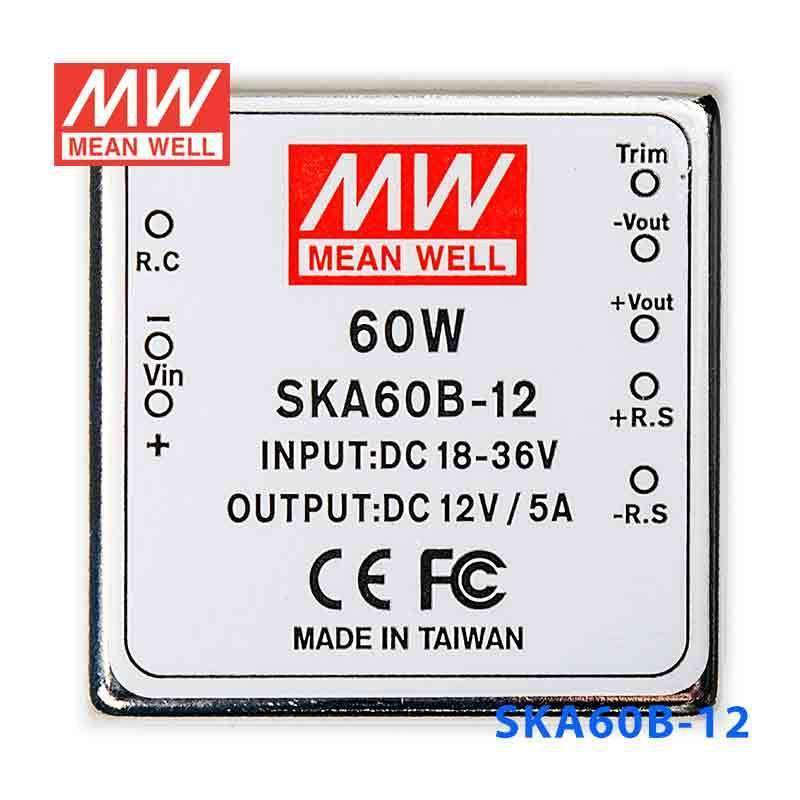

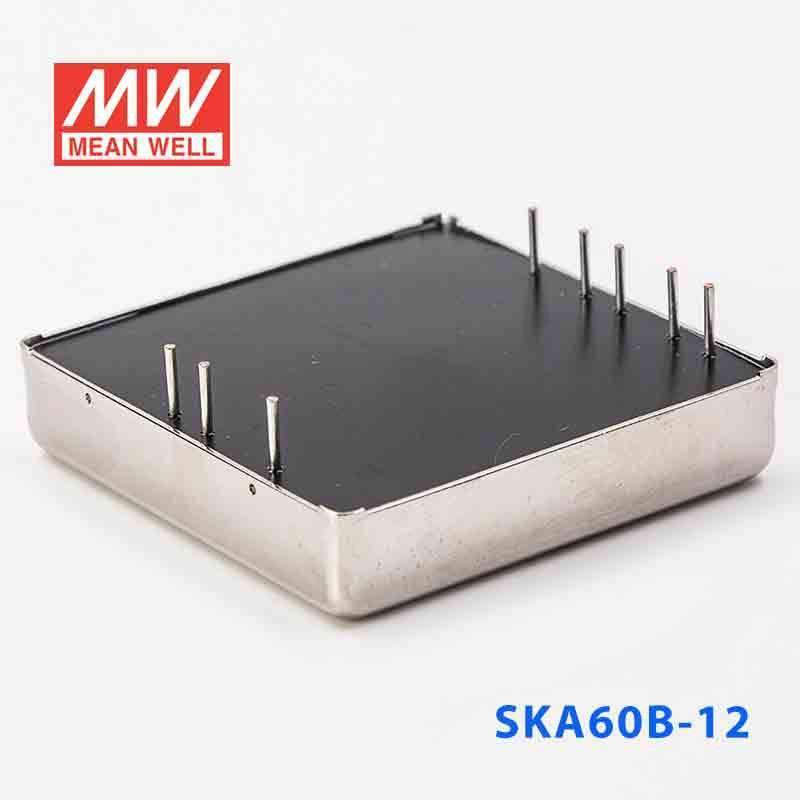

Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out

SKU:

SKA60B-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2"x2" compact size

2:1 wide input range

High efficiency up to 93%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense

Trimming output ±10%

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and Output Over voltage

Cooling by free air convection

Six-sided shield metal case

100% full burn-in test

Low cost, high reliability

Output 3.3V available

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.5% (max.)
Load regulation	±0.5%
Overload protection	110%~250%, auto-recovery
Efficiency	91% ; 90.5% ; 92% \| 92% ; 92.5% ; 92% \| 92% ; 93% ; 92.5%
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+70°C (refer to output derating curve)
Storage temperature	-55 ~ +105°C, 10 ~ 95% RH
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm)	50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA60B-12 for 12V automation controls powered from an 18-36VAC source?

Yes. This model accepts 18-36VAC input and delivers a constant 12V output rated at 5A and 60W. It is appropriate for 12V automation controls or panel devices that require regulated 12V power.

Is the SKA60B-12 suitable for 12V monitoring, signaling, or control electronics?

It can be used for 12V monitoring, signaling, or control electronics when the load needs constant-voltage 12V power. The available output is up to 5A with 60W total capacity.

Can this converter power 12V subsystems in compact industrial equipment?

Yes. Its 50.8 x 50.8 x 11.0 mm size and 0.067 kg weight help when equipment space is tight. Electrically, it is a 12V constant-voltage converter with 18-36VAC input and 5A output capability.

Is the SKA60B-12 rated for demanding temperature conditions?

The operating temperature range is -40C to +70C, so it is specified for wide temperature variation. No IP rating is provided in the listed specs, so indoor, outdoor, or exposed-environment suitability cannot be confirmed beyond the temperature data.

How does SKA60B-12 compare with the other SKA60B versions?

All SKA60B models are rated at 60W and use 18-36VAC input. The SKA60B-12 provides 12V at 5A, while the SKA60B-05 provides 5V at 12A and the SKA60B-15 provides 15V at 4A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out	60W	5V	12A	Indoor	View
Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out	60W	15V	4A	Indoor	View
Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out	60W	12V	5A	Indoor	View
Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out	60W	5V	12A	Indoor	View
