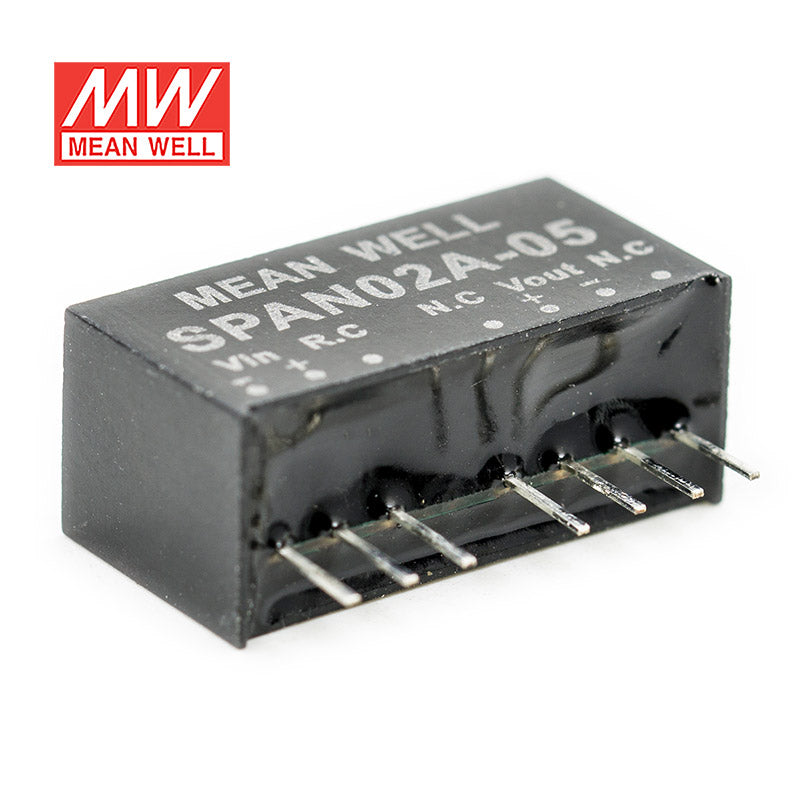

Mean Well SPAN02A-05 DC-DC Converter - 2W - 9~18V in 5V out
Please Login for Pricing
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.4 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPAN02A-05 for 5V embedded or industrial control electronics?
It can be used for low-power embedded, monitoring, or control circuits that need 5V constant voltage from a 9-18VAC input source. The converter is rated at 2W, so it is best matched to smaller electronics within that power budget.
Is this converter suitable for a 5V sensor hub or small automation interface?
Yes, if the interface needs a regulated 5V output and the source is within 9-18VAC. The compact 21.8 × 11.1 × 9.2 mm package supports dense layouts in control or embedded assemblies.
Would the SPAN02A-05 fit a low-power 5V communications or telemetry module?
It is intended for constant-voltage 5V applications and has a 2W rating with listed 400A output current. That makes it a better fit for low-power communications, telemetry, or logic circuits than for larger 5V loads.
Can this model be used in compact monitoring equipment with a low-voltage AC source?
It can fit monitoring or embedded equipment when the available input is 9-18VAC and the electronics need 5V output. Its 0.0048 kg weight and small dimensions help where board area and component mass are constrained.
Is the SPAN02A-05 appropriate for outdoor or high-temperature locations?
The specified operating range is -40°C to +90°C, so it supports a wide temperature range. No IP rating is listed, so the provided data does not define outdoor, wet-location, or dust-tight suitability.
What are the differences between the SPAN02A-05 and the other 2W models in the same series?
All SPAN02A siblings share 2W power, 9-18VAC input, 21.8 × 11.1 × 9.2 mm dimensions, 0.0048 kg weight, and -40°C to +90°C operation. Their output options are 3.3V with listed 500A for SPAN02A-03, 5V with listed 400A for SPAN02A-05, 12V with listed 167A for SPAN02A-12, and 15V with listed 134A for SPAN02A-15.
