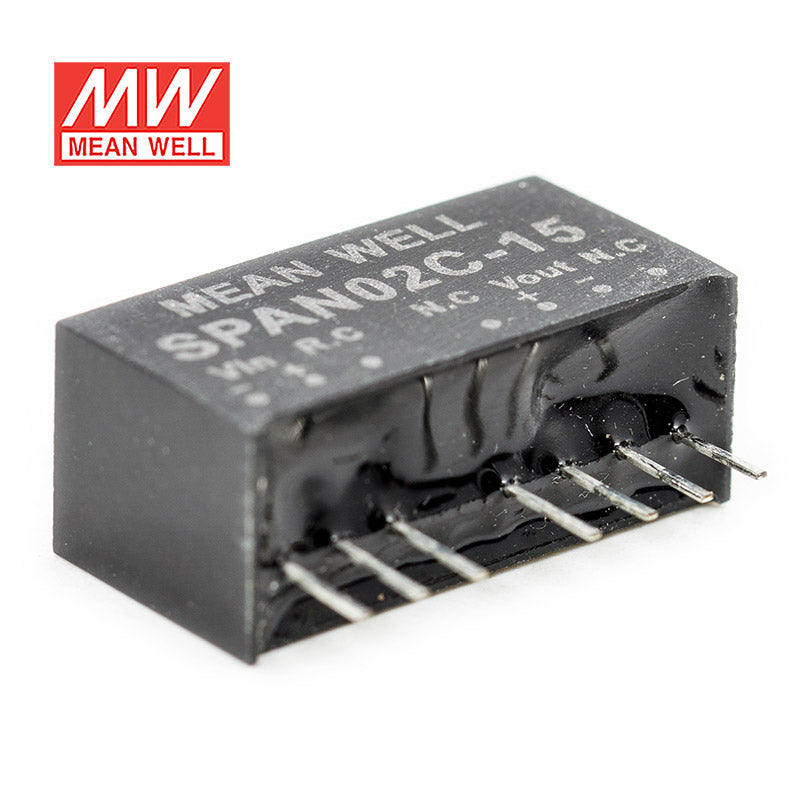

Mean Well SPAN02C-15 DC-DC Converter - 2W - 36~75V in 15V out
Please Login for Pricing
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.13 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPAN02C-15 to create a 15V rail in industrial or automation systems with a higher-voltage input?
Yes, this model is specified for 36-75VAC input and delivers a constant 15V output. Its 2W rating makes it a low-power option for 15V control or signal circuits rather than heavier 15V loads.
Is the SPAN02C-15 suitable for embedded analog or instrumentation circuits that require 15V?
It can be used where an embedded or automation design needs a constant 15V output from a 36-75VAC source. The compact 21.8 × 11.1 × 9.2 mm size supports use in small control assemblies.
Can the SPAN02C-15 fit compact telecom or control hardware with limited board space?
Its 21.8 × 11.1 × 9.2 mm package and 0.0048 kg weight make it practical for compact electronics layouts. The converter remains a 2W device, so it is best reserved for low-power 15V sections.
How does the SPAN02C-15 differ from the other SPAN02C converters?
The listed SPAN02C family members all share a 36-75VAC input range and 2W power rating. The SPAN02C-03 is 3.3V and 500A, the SPAN02C-05 is 5V and 400A, the SPAN02C-12 is 12V and 167A, and the SPAN02C-15 is 15V and 134A.
Is the SPAN02C-15 rated for extreme temperatures or outdoor conditions?
The specified operating temperature range is -40°C to +90°C, which supports use in equipment exposed to wide temperature variation. No IP rating is listed, so the provided specs do not establish outdoor or wet-location suitability on their own.
