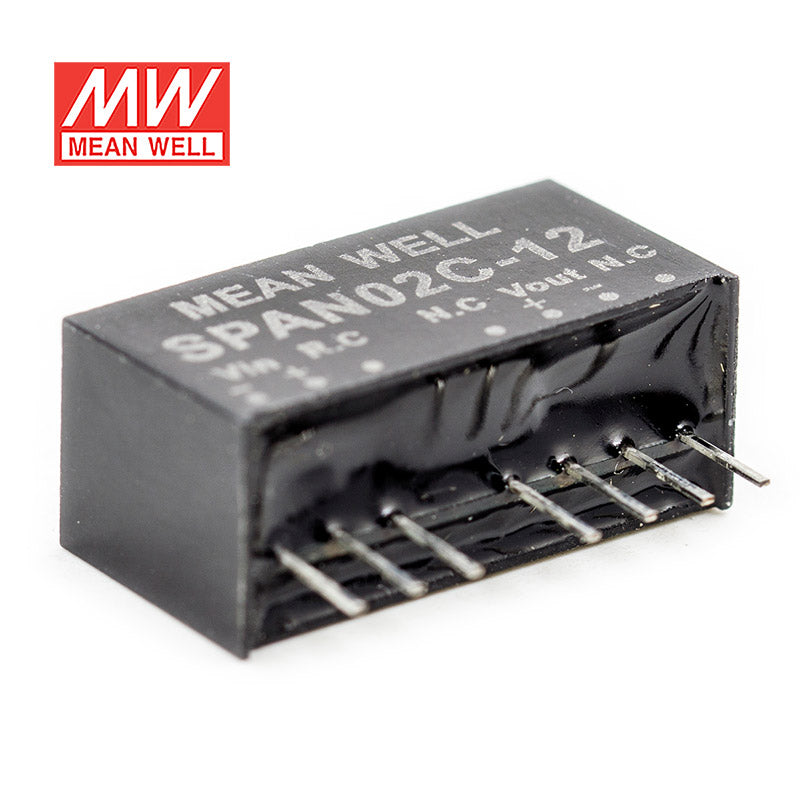

Mean Well SPAN02C-12 DC-DC Converter - 2W - 36~75V in 12V out
Please Login for Pricing
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.16 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPAN02C-12 for 12V control or relay power in industrial equipment?
This converter provides a constant 12V output from a 36-75VAC input range. At 2W, it is more appropriate for low-power 12V control sections than for larger 12V loads.
Is the SPAN02C-12 suitable for embedded 12V interface circuits in automation systems?
Yes, it fits embedded and automation designs that need a regulated 12V rail from a 36-75VAC source. Its 21.8 × 11.1 × 9.2 mm dimensions are useful in compact control hardware.
Can the SPAN02C-12 be used in compact instrumentation or signal-conditioning assemblies?
It can suit small instrumentation or signal-power sections when a constant 12V output is required and the system input is 36-75VAC. The 2W rating means it should be reserved for low-power circuitry, not high-demand 12V devices.
Which SPAN02C model should I compare the SPAN02C-12 against in the same series?
Within the listed series, all versions are 2W models with 36-75VAC input. The output choices are 3.3V at 500A, 5V at 400A, 12V at 167A, and 15V at 134A.
Does the SPAN02C-12 support outdoor use or only controlled environments?
The listed operating temperature range is -40°C to +90°C, so it is specified for broad temperature conditions. Because no IP rating is provided, the specs do not independently confirm outdoor exposure suitability.
