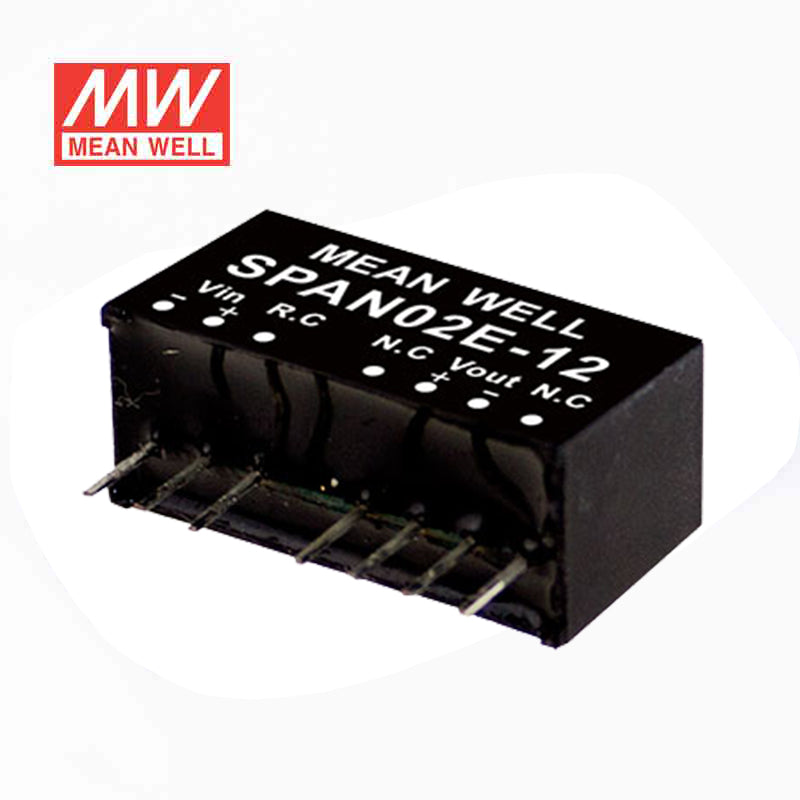

Mean Well SPAN02E-12 DC-DC Converter - 2W - 4.5~9V in 12V out
Please Login for Pricing
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.16 Ampere
-
Input Voltage4.5V~9V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPAN02E-12 for a 12V signal or control section in industrial equipment?
It can fit low-power 12V control and interface electronics because it provides a constant 12V output at 2W. That profile suits compact embedded sections better than larger 12V loads.
Is the SPAN02E-12 suitable for low-power 12V automation or monitoring circuits?
Yes, it is intended for low-power 12V use where a constant-voltage output is required. The 2W rating makes it more suitable for electronics and signal-level functions than for heavier 12V devices.
Can this converter be used in compact 12V communications or embedded hardware?
It can be a fit for small 12V embedded or communications circuits that stay within its 2W output capability. The 21.8 × 11.1 × 9.2 mm size supports use in dense assemblies.
Is the SPAN02E-12 a practical option for small-form-factor designs?
Its 21.8 × 11.1 × 9.2 mm dimensions and 0.0048 kg weight make it easy to consider for compact products. The combination of small size and 2W output points to low-power embedded use.
How well does the SPAN02E-12 handle temperature and environmental exposure?
The stated operating temperature range is -40°C to +90°C, which supports use across a wide temperature span. No IP rating is listed, so the provided specs do not position it as an exposed outdoor-rated converter.
How does the SPAN02E-12 compare with the other SPAN02E models in the same series?
All listed SPAN02E versions are 2W constant-voltage converters with the same 21.8 × 11.1 × 9.2 mm footprint, 0.0048 kg weight, and -40°C to +90°C operating range. The series outputs are 3.3V at 500A, 5V at 400A, 12V at 167A, and 15V at 134A.
